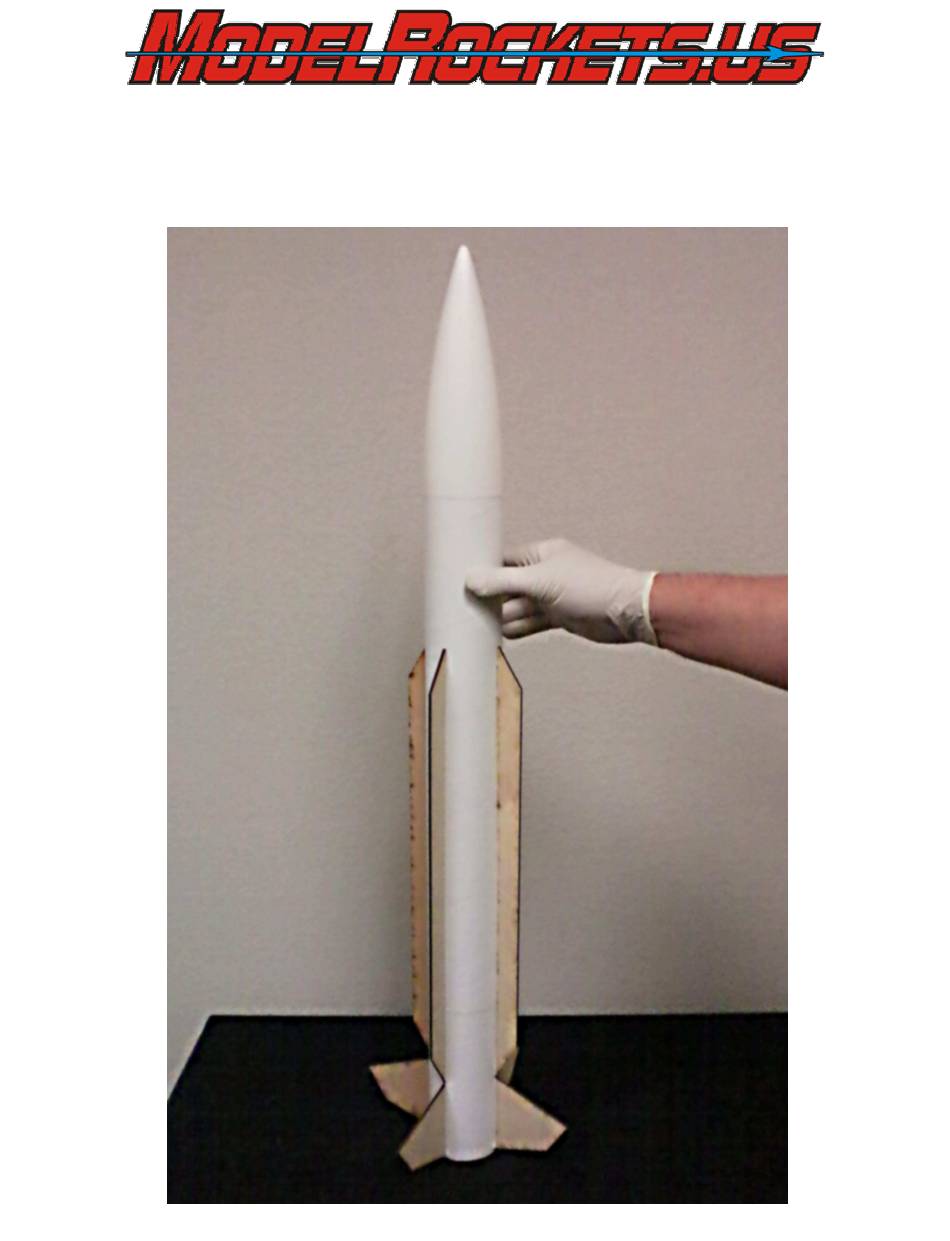

- Page 1 Expert Series 2.6 Rim-24 Tartar Assembly Instructions...
- Page 2 Shock Cord Preparation Step 1 - Tie the elastic shock Step 4 - Tie a single knot in the cord to the Kevlar shock cord end of the Kevlar shock cord. with one overhand knot. Step 5 - Pull the knot tight to Step 2 - Pull tight to check that secure the knot.
- Page 3 Fin Can Assembly Step 4 - Lift the corners of the centering ring to allow the last Step 1 - Insert the first fin into two fins to be inserted and lock all the fin can tube with the slot fins and the centering ring into closest to the bottom.
- Page 4 Fin Can Assembly Continued… Step 9 - Turn over the fin can and Step 7 - Insert the coupler into insert the aft centering ring and the fin can tube. lock in place with the fins. Step 8 - Push the coupler all the Step 10 - Apply a bead of glue way in until it contacts the where...
- Page 5 Main Tube Assembly Step 1 - Insert the shock cord Step 4 Push the two assemblies through the aft end of the main together over the coupler with the tube where marked with a tick tick marks on both tubes aligned. mark as in step 4 to the right.
- Page 6 Main Tube Assembly Continued… Step 1 - Apply a bead of glue Step 2 - Smooth out the glue at along the length of fins where each fillet with a clean finger. Do they intersect the main tube this for both sides of each fin. and fin can tubes.
- Page 7 Launch Lug Assembly Step 4 - Attach the aft launch lug Step 1 - Apply a bead of glue on and stand off pair to the main tube each standoff along the top at the aft launch lug slots. shorter surface. Step 5 - Attach the forward launch lug and stand off pair to the main Step 2 - Attach a launch lug to...
- Page 8 Recovery System Assembly Step 4 - Tie the shock cord to the Step 1 - Align the ends of the nose cone with a double knot. parachute at the shroud lines. Step 5 - Fold the parachute and Step 2 - Pull straight and tie a roll the shroud lines around the single knot in the end of the folded parachute.
- Page 9 Recovery System Assembly Continued… Step 7 – Insert the nose cone in to complete the assembly.
