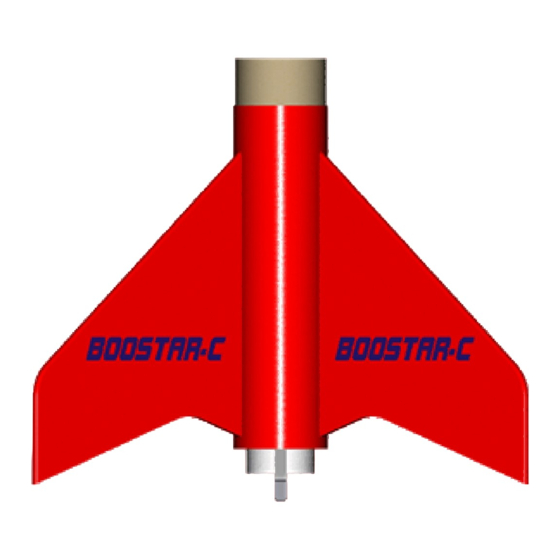

Assembly Instructions
Parts Included:
1 Stage Tube
3 Laser Cut Balsa Fins
1 Trust Ring
1 Motor Tube
1 Launch Lug
1 Motor Hook
2 Centering Rings
1 Decal Sheet
Materials (not Included):
Yellow Wood or White Glue
Sanding Sealer
Paint Brush
Sandpaper (#240 grit)
Gloss Spray Paint
Primer Spray Paint
Masking Tape

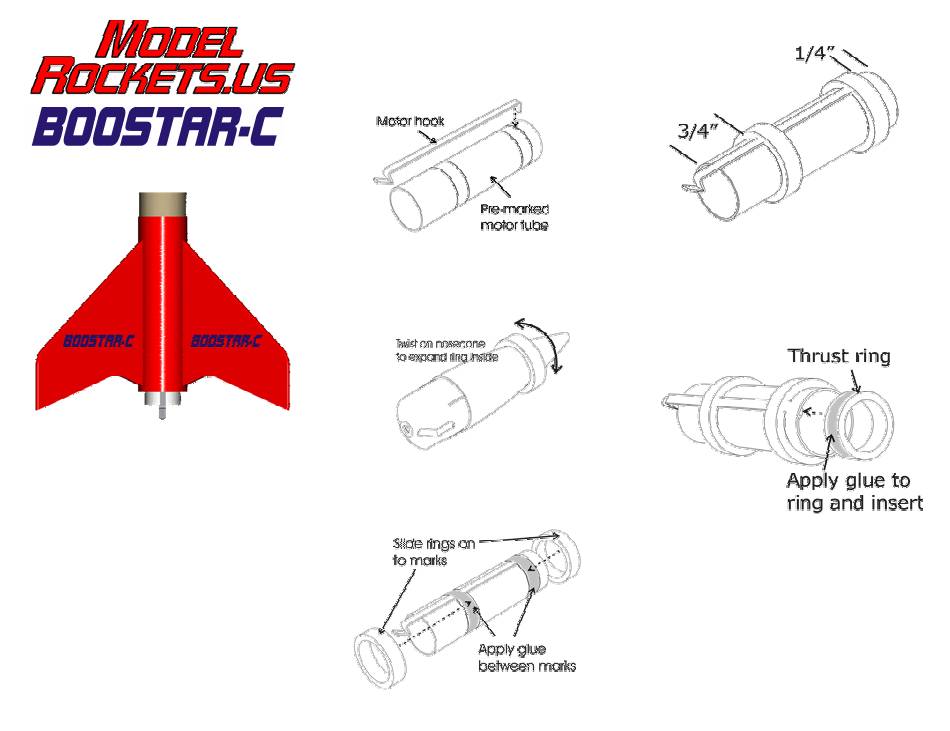

Motor Mount Assembly
Step 1 –
Insert the flat end of the metal
motor hook into the pre-cut slot ¼" from the
end of the motor tube.
Step 2 –
Slightly expand the inside of the 2
larger centering rings by twisting on the end
of the nose cone. Important: Don't expand
the smaller trust ring.
Step 3 –
While holding the motor hook in
the slot, apply glue around the motor tube
between the marks. Push the expanded end
of the centering rings over the motor hook
until the rings are between the marks on the
motor tube.
The rings should be positioned as shown
Step 5 –
Apply glue around the outside of
the thrust ring and insert into the motor tube
at the end where the motor hook is inserted.
Push in until against the motor hook and flush
with the end of the motor tube.
