Model Rockets Turbo Assembly Instructions

ssembly
Instructions

Parts Included:

1 Nose Cone
1 Body Tube
6 Fin Tubes
1 Thrust Ring
2 Centering Rings
1 Motor Tube
1 Motor Hook
1 Launch Lug
1 Kevlar Shock Cord (yellow)
1 Elastic Shock Cord (white)
1 Streamer
2 Tape Discs
1 Decal Sheet

Materials Not Included:

Paint
Yellow Wood or White Glue
Motor Mount and
Shock Cord Assembly

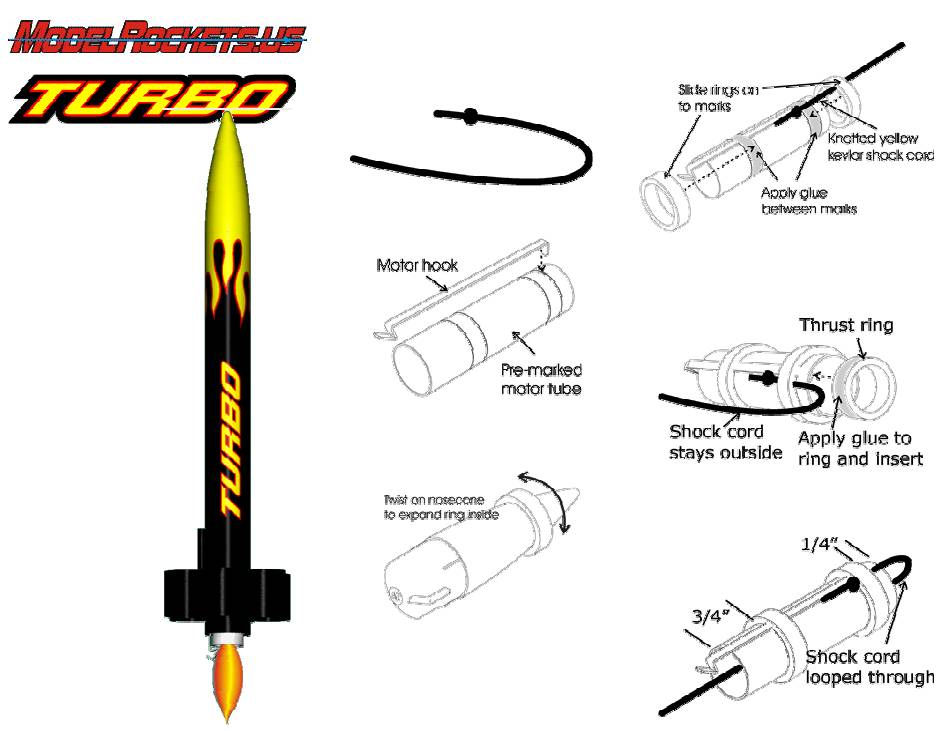

Step 1 –
Tie a single knot at the end of the
yellow kevlar shock cord.
Step 2 –
Insert the flat end of the metal
motor hook into the pre-cut slot ¼" from the
end of the motor tube.
Step 3 –
Slightly expand the inside of the 2
larger centering rings by twisting on the end
of the nose cone. Important: Don't expand
the smaller trust ring.
Step 4 –
While holding the motor hook in
the slot, apply glue around the motor tube
between the marks. Push the expanded end
of the centering rings over the motor hook
with the knotted end of the kevlar shock cord
through the rear centering ring until the rings
are between the marks on the motor tube.
Step 5 –
Apply glue around the outside of
the thrust ring and insert into the motor tube
at the end where the motor hook is inserted.
Push in until against the motor hook and flush
with the end of the motor tube.
Step 6 –
Loop the yellow kevlar shock cord
through the thrust ring end of the motor tube.
The rings should be positioned as shown.
