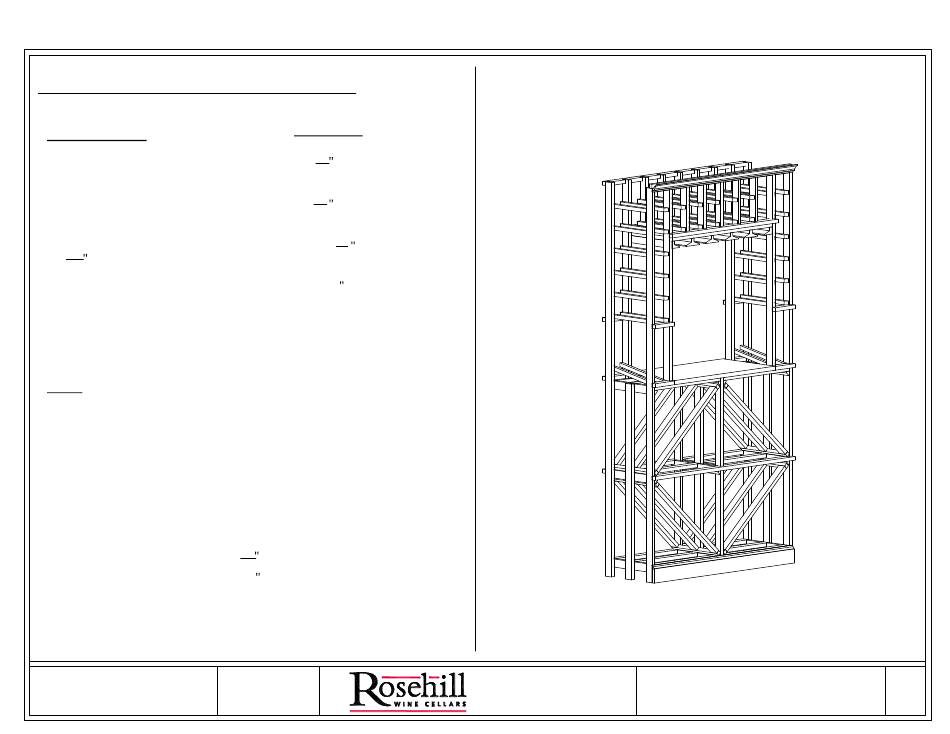

Assembly Instructions -6Ft-
Tools Needed:
• Hammer
(Preferred)
• Pneumatic Brad Nailer
• Power drill
• Level
• Power miter saw (Preferred)
3
•
pilot drill
32
• Nail Set
• Wood filler (Optional)
• 180 grit sand paper (Optional)
Tips:
1. Using pneumatic brad nailer will make assembly
quicker and easier.
2. Before opening any boxes, if multiple units and
different units have been ordered, please assemble
all boxes by units to ensure that specific unit parts
are not intermixed with other units.
3. It is highly recommended to drill
holes on back cross pieces for
before attaching to wall.
6ft Premier Cru
Kit Rack
Fasteners
1
1
finishing nails to
•
4
fasten cross pieces
1
1
•
brad nails if using
4
pneumatic brad nailer
1
#8x1
•
screws to attach
4
to other modules
#8x3
screws for attaching
•
racks to wall
3
dia pilot
32
#8x3
screws
Apr/23/2012
Toll Free: 1-888-253-6807
Tasting Niche Dia. With Indiv.
www.RosehillWineCellars.com
1
Advertisement
Related Manuals for Rosehill Wine Cellars CRU6 TABLEDD750ML
Summary of Contents for Rosehill Wine Cellars CRU6 TABLEDD750ML
- Page 1 Assembly Instructions -6Ft- Fasteners Tools Needed: finishing nails to • • Hammer (Preferred) • Pneumatic Brad Nailer fasten cross pieces • Power drill • brad nails if using • Level pneumatic brad nailer • Power miter saw (Preferred) #8x1 • screws to attach •...
- Page 2 (4 pcs) Diamond bin insert (1pc)Left custom ladder (5pcs)Middle ladder (1pc)Left end ladder (1pc)Right custom ladder (1 pc) Steamware holder (OPTIONAL) (1pc)Right end ladder (1 pc) Counter top Crown (2 pcs) Cross piece (2 pcs) Cross piece Baseboard (2 pcs) Cross piece (14 pcs) Spacers (1pc)Middle ladder (8 pcs) Cross piece...
- Page 3 Step 1 Step 2 Attaching cross pieces and spacers to the BACK Attaching middle ladders. Place the right and left end ladders on the floor. Nail the cross Take the middle ladders making sure the angled cleats are facing front. Place each ladder into cross piece slots and nail from the pieces on the 2nd support cleat starting from the bottom and back on all four back cross pieces.
- Page 4 Step 3 Step 4 Attaching FRONT cross pieces and spacers. Attaching BACK cross piece for middle ladders, stemware holder (OPTIONAL) and counter top. Nail the cross pieces on the 2nd and 3rd support cleat starting from the bottom and under the 2nd and 6th cleat starting from the Nail the cross pieces on the bottom of middle ladders.
- Page 5 Step 5 Step 6 Installing diamond bin inserts. Attaching to the wall Place diamond bin inserts into each opening as shown. Fasten to the wall through the back cross pieces using #8x3 “ screws and using a level to make sure rack is mounted square on the wall. Make sure back cross piece has ”...
