Rosehill Wine Cellars CRU6 750ML1COL Assembly Instructions

Advertisement

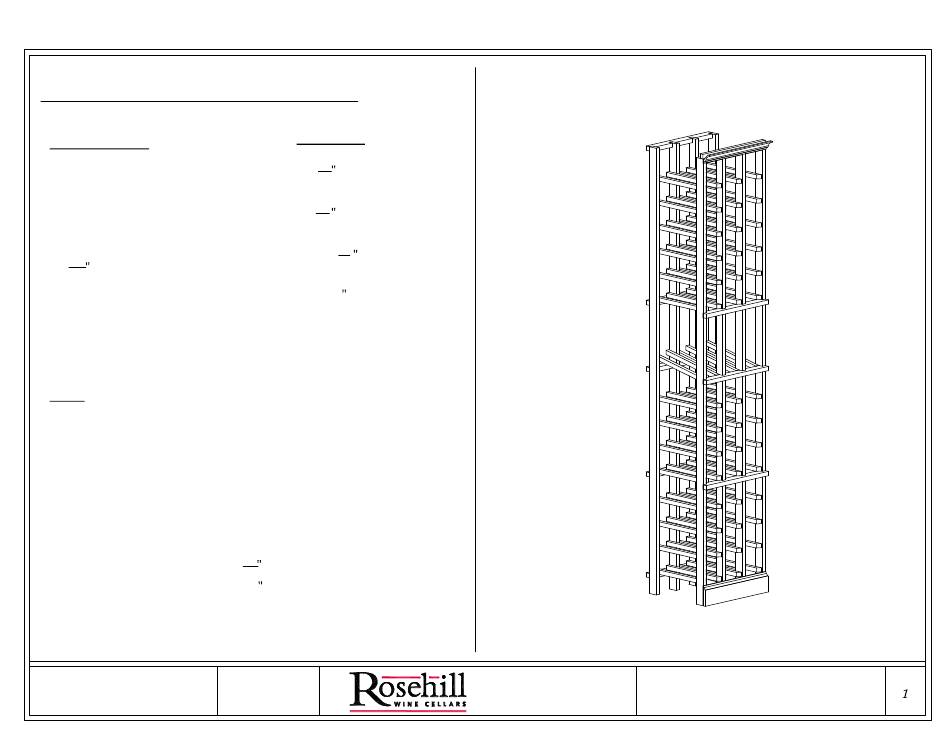

Assembly Instructions -6Ft-

Tools Needed:

• Hammer
(Preferred)
• Pneumatic Brad Nailer
• Power drill
• Level
• Power miter saw (Preferred)
3
pilot drill
32
• Nail Set
• Wood filler (Optional)
• 180 grit sand paper (Optional)
Tips:
1. Using pneumatic brad nailer will make assembly
quicker and easier.
2. Before opening any boxes, if multiple units and
different units have been ordered, please assemble
all boxes by units to ensure that specific unit parts
are not intermixed with other units.
3. It is highly recommended to drill
holes on back cross pieces for
before attaching to wall.
6ft Premier Cru
Kit Rack

Fasteners

1
1
finishing nails to
4
fasten cross pieces
1
1
brad nails if using
4
pneumatic brad nailer
1
#8x1
screws to attach
4
to other modules
#8x3
screws for attaching
racks to wall
3
dia pilot
32
#8x3
screws
Apr/23/2012
Toll Free: 1-888-253-6807
www.RosehillWineCellars.com
750ml Indiv. Bottle 3 Col.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CRU6 750ML1COL and is the answer not in the manual?

Questions and answers

Summary of Contents for Rosehill Wine Cellars CRU6 750ML1COL

  • Page 1 Assembly Instructions -6Ft- Fasteners Tools Needed: • finishing nails to • Hammer (Preferred) • Pneumatic Brad Nailer fasten cross pieces • Power drill • brad nails if using • Level pneumatic brad nailer • Power miter saw (Preferred) #8x1 • screws to attach •...
  • Page 2 (2pcs)Middle ladder Crown (1pc)Left end ladder (1pc)Right end ladder (9 pcs) Cross piece Baseboard 6ft Premier Cru Toll Free: 1-888-253-6807 Apr/23/2012 750ml Indiv. Bottle 3 Col. Kit Rack www.RosehillWineCellars.com...
  • Page 3 Step 1 Step 2 Attaching cross pieces to the BACK Attaching middle ladders. Place the right and left end ladders on the floor making sure the Take the middle ladders making sure the angled cleats are facing front. Place each ladder into cross piece slots and nail from the angled cleats are facing floor.
  • Page 4 Step 3 Step 4 Attaching FRONT ladders. Attaching to the wall Nail the cross pieces under the 5th, 9th and 10th cleat Fasten to the wall through the back cross pieces using #8x3 “ screws and starting from the bottom. Nail the top piece flush with using a level to make sure rack is mounted square on the wall.
