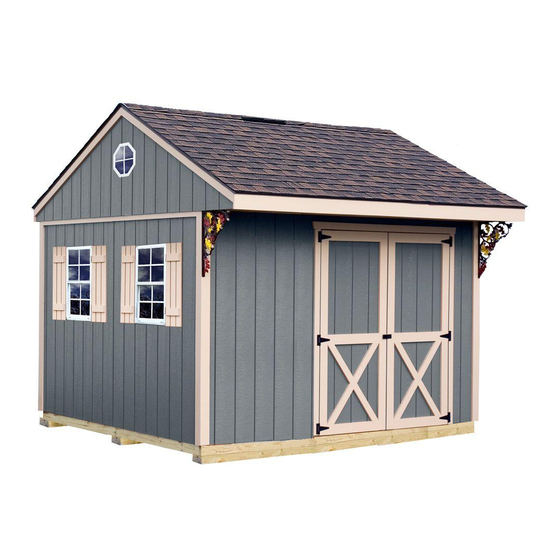

Reynolds Building Systems BEST BARNS Northwood Deluxe Assembly Book

10'x10'
Hide thumbs

Advertisement

Quick Links

Download this manual
Assembly Book
Revised on November 2, 2021
Northwood Deluxe
10'x10'
Manufactured by Reynolds Building Systems, Inc.
205 Arlington Drive
Greenville PA, 16125
This manual is copyrighted. Under the copyright laws, this manual
may not be copied, in whole or in part, without consent from Reynolds
Building Systems, Inc.
© Copyright 2011

Advertisement

loading
Need help?

Need help?

Do you have a question about the BEST BARNS Northwood Deluxe and is the answer not in the manual?

Questions and answers

Related Manuals for Reynolds Building Systems BEST BARNS Northwood Deluxe

Summary of Contents for Reynolds Building Systems BEST BARNS Northwood Deluxe

  • Page 1 Assembly Book Revised on November 2, 2021 Northwood Deluxe 10'x10' Manufactured by Reynolds Building Systems, Inc. 205 Arlington Drive Greenville PA, 16125 This manual is copyrighted. Under the copyright laws, this manual may not be copied, in whole or in part, without consent from Reynolds Building Systems, Inc.

  • Page 2: Tool List

    MPORTANT NFORMATION BOUT Thank you for purchasing our shed kit. Read the instructions before starting the assembly of the building. If you have any questions about assembling the kit, call 800-245-1577. Business hours (8:00-5:00 ET) Monday thru Friday. After business hours call 724-866-HELP (4357) or email to help@barnkits.com.
  • Page 3 Material Purchased Separately 10'x10' Building 6 bdl. Roof Shingles pcs. Roof 'drip' edge 14'x10' Building 8 bdl. Roof Shingles pcs. Roof 'drip' edge General Construction Guidelines Siding is made in sheets with grooves cut into the LAP Edge face, the long edge is beveled so that the siding overlays where they butt.
  • Page 4 Constructing Details for Deluxe Floor System Foundation size is 10"-0" x 9'-9". Check local building codes in your area, the construction may have to change. For a concrete slab, install sill sealer as a moisture barrier between the concrete and the wall plates.
  • Page 5 Step 1 Assemble Trusses Building Tip: To aid in the assembly of the trusses, temporarily tack 2x4 blocks to the floor. There are short 2x4s, that may have an angle on one end, supplied in the kit for this purpose. This will trap the truss parts and insure that all the trusses will be assembled the same.
  • Page 6 Step 2 Assemble Roof Gables 1. Position a 138" long 2x4 and (2) two 79-5/8" long 2x4s between the blocks. 2. Place (2) two 20-3/4" long gable studs between the top and bottom 2x4s. Insure the top and bottom are snug against top and bottom 2x4s. The siding will secure them in place. 20-3/4"...
  • Page 7 Step 3 Assemble Back Wall 1. Locate (2) two 68-1/2" long 2x4 boards and (2) two 41-1/2" long boards. Position these boards together and indicate with 'X' marks, where the wall studs will be located. 68-1/2" Wall Plate 41-1/2" Wall Plate 23-1/4"...
  • Page 8 Step 4 Assemble Side Wall Frames There are 2x4s screwed to each pallet. Remove these from the pallets. The bit is packed in the hardware bag. 1. Locate (2) two 69" long 2x4 boards and (2) two 51" long 2x4 boards. Position these boards together and indicate with 'X' marks where the wall studs will be located.
  • Page 9 Step 5 Assemble Left Side Wall 1. Select one of the side wall frames. Orient the 'C' mark on the wall frame to the right. Square wall frame. 2. Install a 45-3/4" x 77-1/4" siding panel, with cut edge and tongue edge, on the left end of the wall.
  • Page 10 Step 7 Assemble Door Walls 1. Gather (3) three 72" wall studs and (2) two 31-3/4" long 2x4 wall plates. Assemble left side wall frame as shown below. Use 10d sinkers. 2. Attach (1) one 71-1/2" long 2x4 as a header support to end of frame. Top of 2x4 will be 3-1/2" below top plate.
  • Page 11 Step 8 Install Siding on Door Wall If you want the door opening on the left, flip the walls and apply siding to the opposite side of the wall frames. 1. Select the larger door wall frame. 2. Locate a pre-cut 16" wide siding panel that has a 'LAP' edge. Position this panel with the 'cut' edge flush with the 2x4 header support and extending 3/4"...
  • Page 12 Step 9 Set Walls 1. The front and back walls set between side walls. Secure wall panels together at the corners. Use (4) four 10d coated nails per corner. Nail frames to the floor using 10d sinkers (or concrete anchor bolts, not included) 24" on center. 2.

  • Page 13: Step 10 Install Trim

    Step 10 Install Trim Use 6d galv. nails spaced 12" apart when installing trim. 1. Position (2) two lx3x72" trim boards along each side of the door opening with top of boards 3/4" above door. Tack these boards with a couple nails; you may want to move the trim later when you install the doors.
  • Page 14 Step 11 Install Gable on Right Side Wall 1. Install the gable on the right side wall. The gable frame will butt against the back wall siding and extend over the front wall. Gable siding MUST extend over the 1x4 trim on the Right Gable side wall.
  • Page 15 Step 12B Install Trusses Continued 3. Place a truss in the front hanger and over the 'X' mark on the back wall. Important; the 2x4 should be centered, not the wood gusset, over the 'X' mark on the rear 2x4 plate. Check the truss spacing, front and back, to make sure the truss is parallel with gable.
  • Page 16 Step 14 Install Front Soffit 1. Secure the front of the trusses to the H1 hangers with 1-1/2" hanger nails. 2. Locate (4) four 21"x48-3/4" soffit panels under the front overhang. Cut the first soffit panel along 'LAP' edge so the tongue edge is centered on the second truss. Use 6d galv. nails. 3.
  • Page 17 Step 16 Install Roof Sheathing 1. Cut a 73-1/2" long 1x6 fascia board to fit flush with the trim on the gable and meeting the center of the third truss. Install the fascia so the bottom edge of the roof sheathing will rest on the edge.
  • Page 18 Step 17 Install Loft flooring 1. Gather (2) two 24" x 48" and (2) two 16-1/2" x 48" pieces of OSB sheathing. Install these panels over the bottom 2x4 truss member. Secure with 6d common nails. 2. Notch panels around gable studs. 3.
  • Page 19 Step 17 Install Doors & Hardware 1. Lay the left door with the trim facing up. The siding on the left door extends past the door trim. See detail below. 2. Install 5" hinges to the left side of the door frame. To position the hinge properly, hold the rectangular plate against the frame.
  • Page 20 Northwood 10' x 10' Barn kit Packing List Qty. Qty. Description Size Description Size 2x4 Framing 1x6 Whie Pine Fascia Truss Material - bottom cords " Fascia 1/2" 12 Truss Material-top members 79 5/8" Fascia " 28 Wall Studs/Plates " Whie Pine Trim Header Supports 71 1/2"...
