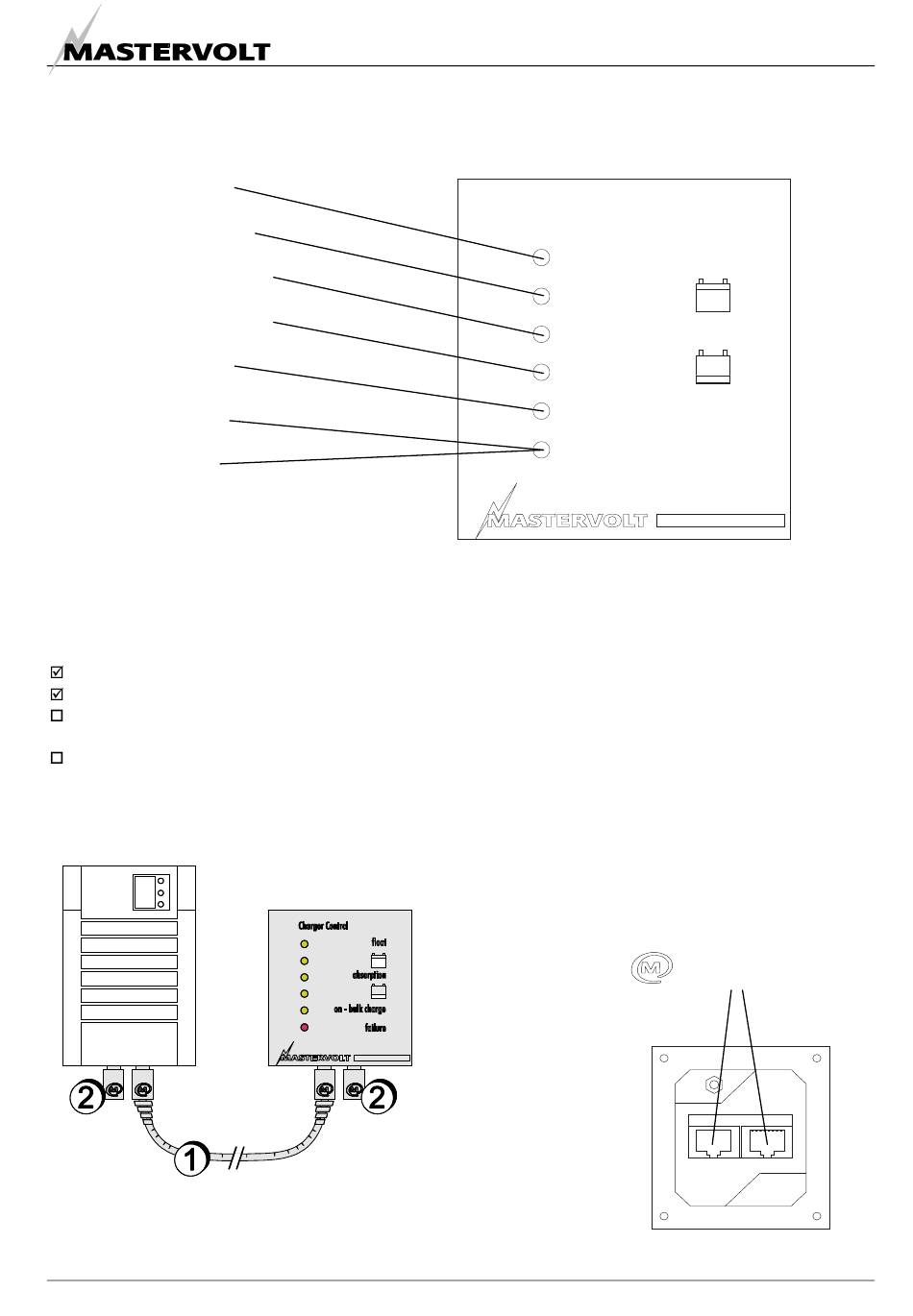

4 DISPLAY FUNCTIONS
State of charge: Float
State of charge: 60-80%
State of charge: Absorption
State of charge: 20-40%
Charger On,
State of charge: Bulk
Continuously red:
Charger in Failure,
Blinking red:
Charger in alarm
No LED illuminating: Charger Off
5 INSTALLATION
What you need:
MasterView Read Out
MasterBus Terminator
ChargeMaster with MasterBus connections
(not included)
MasterBus connection cable (not included)
MasterBus connections of the MasterView Read Out , front and back side
EN / MasterView Read Out / January 2011
Charger Control Charger Control
Charger Control Charger Control
failure
absorption
absorption
on - bulk charge on - bulk charge
Installation:
Step 1. Disconnect the charger AC,
Step 2. Connect the Read Out panel to the
ChargeMaster, using (1) a MasterBus
cable and (2) two MasterBus Terminators,
Step 3. Reconnect the charger AC.
The charger will recognize the read out and be
configured automatically to use this panel (Set up
automatic, see chapter 2).
float
on
float
bulk
failure
MasterBus connectors
