Tecnar accuraspray 4.0 Quick Setup Manual

Before
you begin

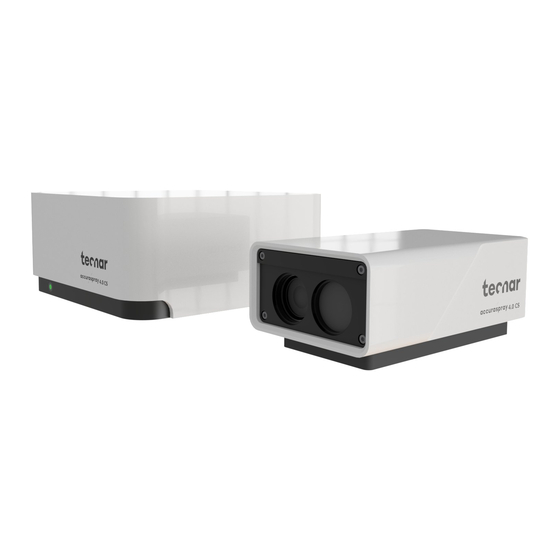

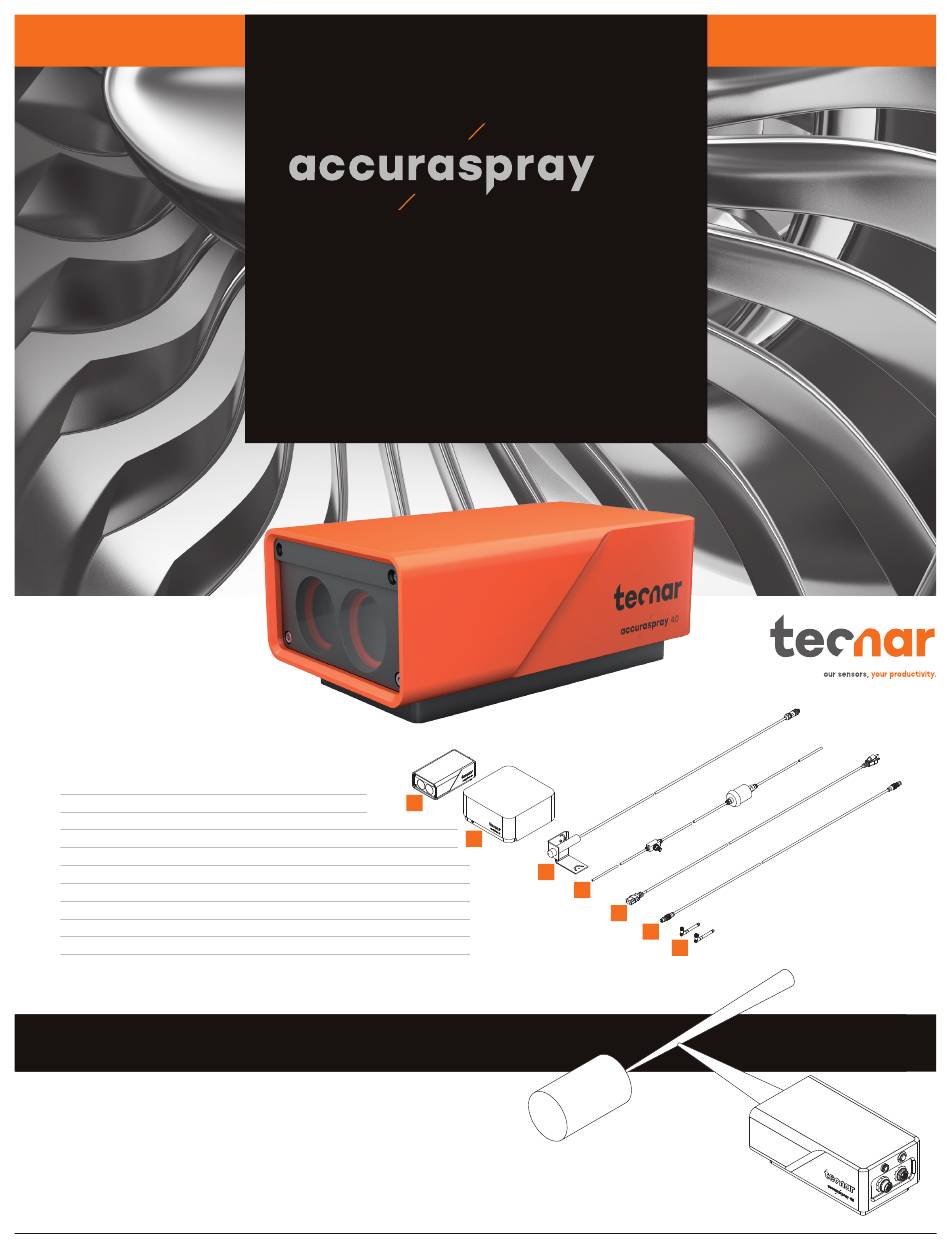

Unpacking the parts
The box should contain the following items:
1. Sensor head
2. Controller
3. Substrate pyrometer and its support bracket (optional)
4. Air filter and hoses
5. Controller power cable
6. Communication cable between the head and controller
7. Wi-Fi antennas
8. Spare fuses (not pictured below)
9. Neutral density filters (not pictured below)
10. Calibration sheets (not pictured below)
1. 1. Installing the sensor head Installing the sensor head
Where to install
Install the sensor head in the spray
booth where it is by the robot (spray
gun). Also ensure that the sensor
head does not interfere with normal
spraying operations.
Quick set-up guide
Online monitoring of thermal spray
processes for the shop floor
1
B
Install the sensor head on a sturdy mounting plate
that does not vibrate or move during spraying.
A
4.0
2
3
4
4
5
6
3
Carefully open the box,
remove the content
pictured below, and
7
set it on a work surface.
2
