4.0
Quick setup guide
Online monitoring
of thermal spray
processes for the
shop floor

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the accuraspray 4.0 and is the answer not in the manual?

Questions and answers

Related Manuals for Tecnar accuraspray 4.0

Summary of Contents for Tecnar accuraspray 4.0

  • Page 1 Quick setup guide Online monitoring of thermal spray processes for the shop floor...

  • Page 2: Before You Begin

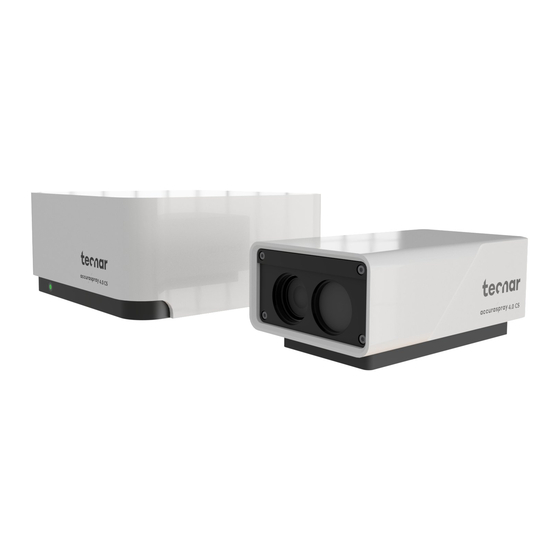

    Quick setup guide Before you begin Unpacking the parts The box should contain the following items: Sensor head Controller Substrate pyrometer and its support bracket (optional) Air filter and hoses Controller power cable Communication cable between the head and controller WiFi antennas Spare fuses (not pictured below) Neutral density filters (not pictured below)

  • Page 3: Installing The Sensor Head

    Quick setup guide Installing the sensor head Where to install Install the sensor head in the spray booth at a location easily reachable by the robot (spray gun). Also ensure that the sensor head does not interfere with normal spraying operations. Install the sensor head on a sturdy mounting plate that does not vibrate or move during spraying.

  • Page 4: Installation Procedure

    Quick setup guide Installation procedure Attach the sensor head to your support bracket using the 4 mounting holes. Supplied with the Accuraspray 4.0 Supplied by the user Provide access REVISION HISTORY DESCRIPTION DRAWING ORIGINAL ISSUE...
  • Page 5 Quick setup guide Installing the sensor head Connect compressed air supply and communication cable to the sensor head. Pull the other end of the communication cable out of the spray booth. Connect the air hoses to the booth air supply. Air supply Communicaton cable...

  • Page 6: Installing The Controller

    Quick setup guide Installing the controller Where to install Install the controller outside the spray booth. Installation procedure Install the WiFi antennas on the controller. WIFI antennas...
  • Page 7 Quick setup guide Installing the controller Connect the sensor head communication cable. Connect the power cable to the controller and into a power socket. Flip the Accuraspray controller power switch to ON. Communication cable Power switch Power inlet...
  • Page 8 Quick setup guide Installing the controller Wait until the status LED turns green. Status...
  • Page 9 Quick setup guide Adjusting the spray gun position Activate the alignment beam using the push button located at the back of the sensor. Alignment beam switch...
  • Page 10 Quick setup guide Adjusting the spray gun position Bring the spray gun near the sensor head as shown on the schematic below. The sensor measurement point is normally set to your standard process spray distance. The distance between the front of the sensor head and the spray torch axis should be adjusted to 200mm.

  • Page 11: Accessing The User Interface

    Quick setup guide Accessing the user interface The Accuraspray 4.0 user interface is accessible through a web browser but it is not actually hosted on the internet. It is streamed from the Accuraspray controller. We recommend to use Google Chrome for optimal performance.
