Tecnar accuraspray 4.0 Quick Setup Manual

Before
you begin
Unpacking the parts
The box should contain the following items:

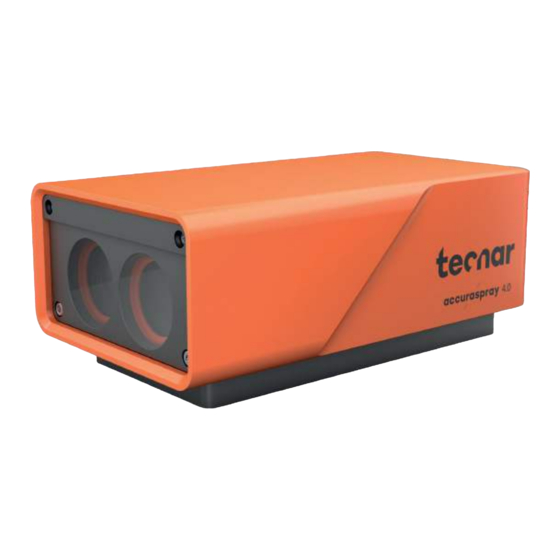

1. Sensor head
2. Controller
3. Substrate pyrometer and its support bracket (optional)
4. Air filter and hoses
5. Controller power cable
6. Communication cable between the head and controller
7. Wi-Fi antennas
8. Spare fuses (not pictured below)
9. Neutral density filters (not pictured below)
10. Calibration sheets (not pictured below)
1. 1.

Installing the sensor head

Installing the sensor head
Where to install
Install the sensor head in the spray booth where
the robot (spray gun) can easily reach it. It should be
a permanent place so the robot can repeatedly reach
the sensor head. Also ensure that the sensor head
does not interfere with normal spraying operations.
Quick set-up guide
Online monitoring of thermal spray
processes for the shop floor
1
4.0
2
3
4
5
6
Carefully open the box,
remove the content
pictured above and
7
set it on a work surface.
