Summary of Contents for Price Parc Node Recessed Channel

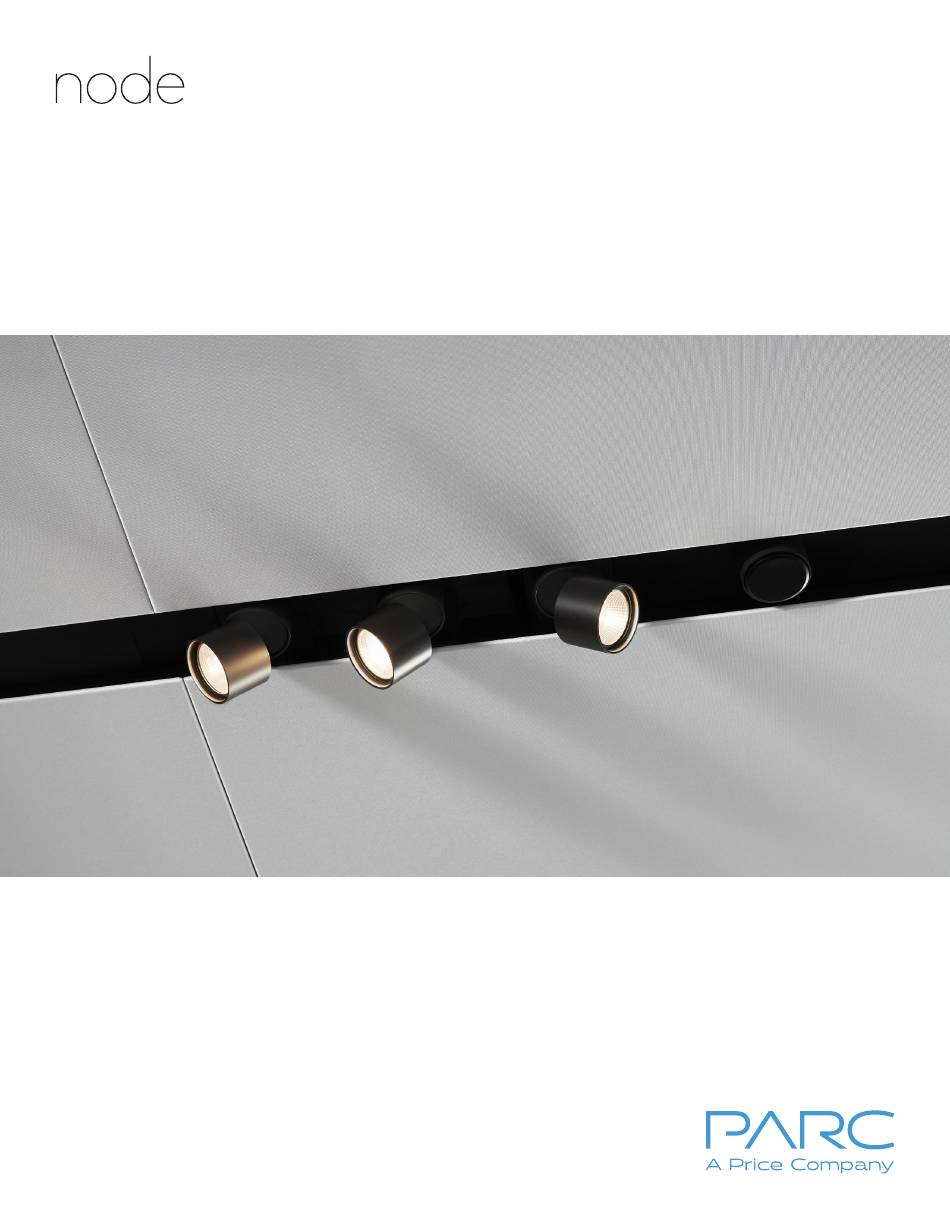

- Page 1 Recessed Channel Installation Guide...
-
Page 2: Table Of Contents
Recessed Channel Installation Guide NODE RECESSED CHANNEL INSTALLATION GUIDE v001 © 2020 Price Industries Limited o/a PARC. All rights reserved. TABLE OF CONTENTS Product Overview ................................2 Read and Save These Instructions ............................ 3 Before You Start ................................3 Tools Required .................................. 3 Site Conditions, Storage and Handling Instructions ...................... -
Page 3: Product Overview
Recessed Channel Installation Guide Product Overview The Node Recessed Channel consists of two continuous side skirts, held together by a continuous Node face plate to support the lighting and other Node devices, and intermittent supporting bridge plates. The recessed assembly is designed to be installed in ceilings with recessed voids between ceiling panels or plasterboard. -
Page 4: Read And Save These Instructions
Recessed Channel Installation Guide Read and save these instructions before beginning to install the Node Recessed Channel. Warning! To reduce the risk of fire, electric shock, or injury to persons, observe the following: • When cutting or drilling into wall or ceiling do not damage electrical wiring and other hidden utilities •... -
Page 5: Node Recessed Channel Installation Sequence
Recessed Channel Installation Guide Node Recessed Channel Installation Sequence The Node Recessed Channel ships fully assembled (skirts, mounting bracket, bridge plates and Node face plate). Note: All mounting hardware and sub structure is to be supplied and installed alongside the Node Recessed Channel. Lighting and other services must be installed by qualified personnel. -
Page 6: Recessed Channel To Plasterboard
Recessed Channel Installation Guide Connecting Node Channels Roll pins are supplied which must first be knocked into place, then pressing together two sections of channel. Figure 4 Node Recessed Channels can be connected together by way of key stock splicing the connection joint and fastening into place. -
Page 7: Node Integrated Sight Block
Recessed Channel Installation Guide Node Integrated Sight Block The sight block is included in any location where the Node Plenum is not installed. The sight block comes pre-installed in the trough. The sight block can be trimmed on site to allow the passage of airflow below the plenum. The sight block can be cut before or after the channel is installed in the ceiling, but should only be done once the plenum positioning is known. -
Page 8: End Caps
Recessed Channel Installation Guide End Caps Node Recessed Channel can be provided with or without end caps. End caps are factory installed as required. END CAP END CAP HARDWARE Figure 10 Cutting Node Recessed Channels to Length Where possible the channel should be ordered to length based upon contractor site measurements. If the channel must be cut to length, the end cap should be removed, the length shall be cut and the end cap shall be re-attached. -
Page 9: Node Recessed Channel Plenum Installation Sequence
Recessed Channel Installation Guide Node Recessed Channel Plenum Installation Sequence Mount the plenum on top of the Node channel using the pre-drilled holes in the flanges. Figure 11 The Node plenums can be placed anywhere along the length of the channel to coordinate with the services layout. 118.11 3000 MAX LENGTH... - Page 10 Recessed Channel Installation Guide SUBMITTAL GENERAL CONTRUCTION - RECESSED CHANNEL WITH DIFFUSER CONSTR - FLUSH o AL o AL o ST - RECE o AL o AL FINISH: - ALL HA SPECIF ELECTR - SEE SP MECHAN - CONTA CONTRO - CONTR NOMENC - ALL CO...
-
Page 11: Node Device Installation
Recessed Channel Installation Guide Node Device Installation Node devices can be integrated into the system at design stage and can be purchased separately from the Node Recessed Channel. Outer Node housings will be factory installed in the required locations. The Node devices are installed in the housing by aligning the snap tabs and pushing the device casing directly into the housing. -
Page 12: Node Device Removal
Recessed Channel Installation Guide Node Device Removal To remove the Node device, insert the Node removal tool into the shadow gap between the outer housing and device. Persuasively slide the Node tool anti-clockwise until the Node device is released. Figure 15 Waste Disposal Management PARC Node Channels are shipped and packaged with protective material that should be disposed of in an appropriate manner. - Page 13 The information contained in this document only provides guidance for the installation of PARC products. All PARC products should only be installed by trained professionals and installation responsibility remains with the installer. PARC reserves the right to review, alter, amend or remove published data without notice as our policy is one of constant improvement.
