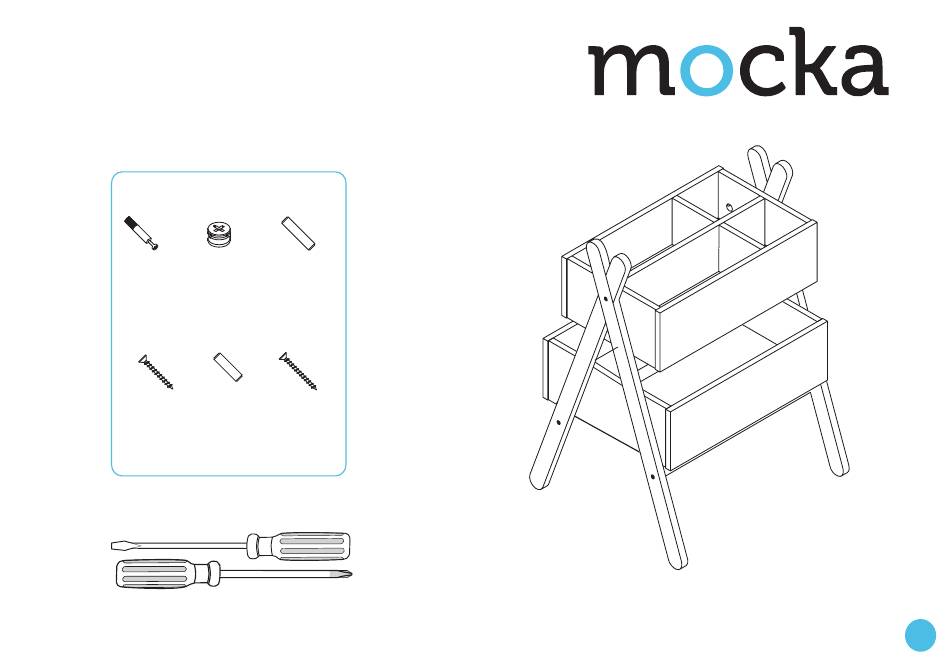

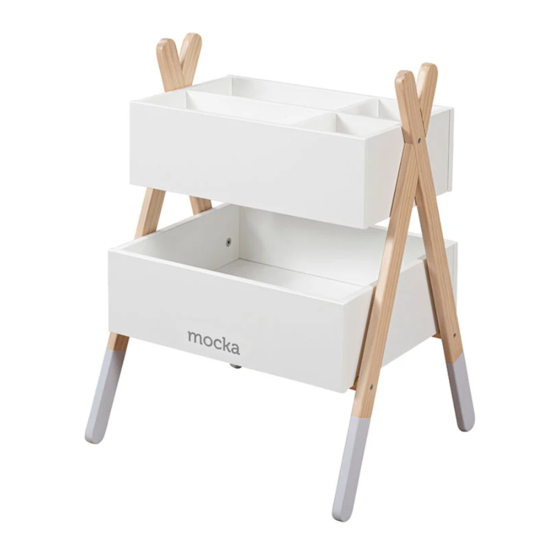

Wilbur Kids Storage Shelf
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
bolt
locking nut
x8
D
short screw
x6
Hardware Supplied
Phillips & Flathead screwdrivers required.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558
B
C
dowel
x8
x22
E
F
pin
long screw
x4
x2
AGE RECOMMENDATION 3 YEARS +
