Summary of Contents for CADO Leaf Portable MP-C30

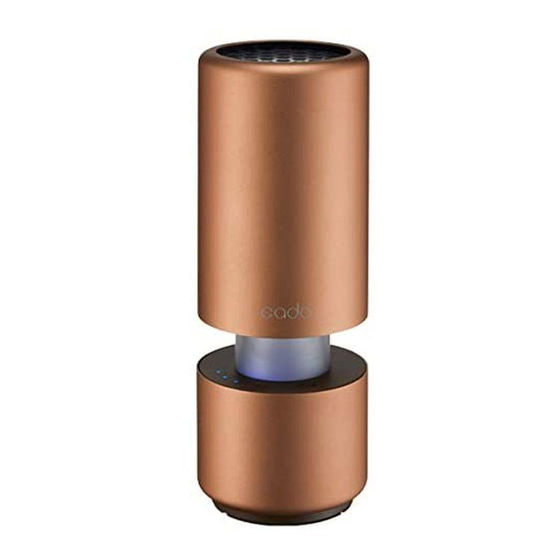

- Page 1 Instruction Manual 취급설명서 使用說明書 MP-C30 Air Purifier Portable...
- Page 2 Instruction Manual...
-
Page 3: Table Of Contents
Table of Contents Names of Components ......4 Cleaning Procedure ......13 Base unit ..........4 Base unit ..........14 Unit back face / filter ....... 4 Filter ............15 USB cable ..........5 Replacing the filter ........ 16 Air purifier functionality ......5 Information on filter ....... -
Page 4: Names Of Components
Names of Components Base unit Unit back face / filter Air outlet Enclosure Air inlet Lamp Control panel Filter... -
Page 5: Usb Cable
USB cable USB cord car DC adapter USB Type-C plug USB plug • Be sure to use the included USB cable/car DC adapter. The included car DC adapter is made especially for this product, please do not use it with other devices. •... -
Page 6: Installing The Filter
Installing the filter When performing the following operations, be sure to turn the power OFF. Open the top cover. Take out the filter from the plastic bag. Turn the top cover in the direction The side with the protrusion should face downward. - Page 7 Install the filter. Close the top cover. Face the side with the protrusion Performing the steps in 1. in reverse, downward, hold the latches, and insert the slowly lower the top cover in the direction filter into the base unit. indicated by Arrow , then turn in the direction indicated by Arrow...
-
Page 8: If The Top Cover Comes Off
If the top cover comes off If the top cover comes off, line up the Δ symbols on the top cover and base unit and install the top cover. There is a hard portion in front of the filter mounting position, but please push through it, moving the top cover farther down. -
Page 9: Connecting The Usb Power Supply
Connecting the USB Power Supply Connect the USB Type-C plug of the USB Connect the other end of the USB cable cable to the USB connector on the bottom to the car DC adapter or a commercially of the base unit. available USB power adapter. -
Page 10: Operating Instructions
Operating Instructions Control panel Air volume indicator Power button / Lamp control Mode button button Starting operation Press the Mode button. The mode (air volume indicator) will change in the following order. •(Low) ••(Middle) •••(High) Turn indicator OFF (Stop operation) -
Page 11: Lamp Controls
Lamp controls Lightly pressing the lamp control button will switch between ON and OFF. The lamp can be used even when the air purifier function is not being used. • If the air purifier function is stopped, the lamp will turn OFF as well if it is in use. •... -
Page 12: Notes On Installation
Notes on Installation • Place the air inlet and air outlet in an area inside with good circulation. • Do not place on inclines, in unstable locations, and in areas where objects could fall on the device. • Do not place on top of carpeting, electric carpets, futons, and other soft materials. The air inlet and air outlet will be obstructed, which could cause malfunctions. -
Page 13: Cleaning Procedure
Cleaning Procedure • When cleaning, be sure to remove the USB cable and stop all operation. • Continuing to use the product without cleaning can result in accumulation of dust and the air purifier may not be able to provide full performance. Clean the product periodically (Once or more per month is recommended). -
Page 14: Base Unit
Base unit Periodically clean the base unit, air inlet, and air outlet. Before cleaning, be sure to remove the USB cable from the base unit. Before cleaning, be sure to remove the After turning the top cover to the right, lift USB cable from the base unit. -
Page 15: Filter
Filter Remove dust from the filter using a vacuum cleaner or other tool. Alternatively, wipe it using a soft cloth. The filter cannot be washed with water. -
Page 16: Replacing The Filter
Replacing the filter The filter cannot be washed with water. Replace it periodically. The replacement timing of the filter can vary depending on the environment in which the product is used, but the rough standard is once every six months to a year. When replacing the filter, be sure to remove the USB cable from the base unit. -
Page 17: Information On Filter
Information on filter • The filter is a consumable item and must be purchased and replaced periodically. • The replacement timing of the filter can vary depending on the environment in which the product is used, but the rough standard is once every six months to a year. •... -
Page 18: Troubleshooting
Troubleshooting Symptom Items to Confirm Solution Does not operate Is the USB cable firmly Firmly insert the USB cable into the connected to the car DC power cable port on the base unit and adapter or a commercially the adapter. available USB power adapter? No air is coming out When installing the filter, did... - Page 19 Symptom Items to Confirm Solution The unit emits a bad Have you cleaned the unit Follow the instructions in the “Cleaning odor periodically? Procedure” section and clean the base Have you been periodically unit. If the problem is not solved even replacing the filter? after cleaning, replace the filter with a new one.
-
Page 20: Specifications
Specifications LEAF Portable Model name MP-C30 Power supply DC 5V (car DC adapter DC 12V/24V) Operation mode Middle High Consumption current [A] Operating sound [dBA] External dimensions [mm] Diameter 66 x Height 180 Weight [g] Approx. 510 USB cable length [m] Approx. - Page 21 Safety Precautions...
- Page 22 Safety Precautions Preface Important precautions to prevent accidents are featured in this document. Make sure you read this document, as well as the attached “Instruction Manual” before using the appliance. Please keep these documents after reading. Follow these instructions. Be sure to follow contents featured in this manual to prevent harm to body and damage or loss of property.
- Page 23 Warning Prohibited Do not place in areas forbidden by Do not use the base unit at any voltage █ █ automobile manufacturers (near the airbag, other than the rated voltage. etc.). This may cause fire or electric shock. Doing so may result in the airbag not deploying, Do not use, store, or place in any of the █...
- Page 24 Warning Prohibited Do not wet the base unit or wash the entire Do not wipe with benzene or paint thinner █ █ base unit. or apply insecticide. If water gets onto the circuit board inside the base This could cause ignition, electric shock, cracking, unit, it could cause a short and result in fire or discoloration, or deformation.
- Page 25 Warning Instruction Be sure to use the included USB cable. When placing the device, confirm that the brake █ lamp, horn, and other electrical equipment Using a USB cable other than the one included may operates normally. If a malfunction were to occur cause fire due to ignition or other factors.
- Page 26 Caution Prohibited Do not place the base unit in an unstable This may cause distorted images or radio noise. █ Place it in a location away from the TV or radio. location or a place where it might be flung Do not place it near an electromagnetic cooker, back or fall.
- Page 27 Caution Instruction When using the base unit in a vehicle where Always ventilate when using the product █ █ power is still supplied to the accessory together with a heater. power sockets even when the engine is shut This product cannot ventilate. For this reason, off, remove the car DC adapter from the the carbon monoxide emitted by combustion accessory power socket when the base unit...
- Page 28 Co., Ltd. | Tokyo | cado.com JA-00068-0201...
