Summary of Contents for CADO AP-C200

  • Page 1: Table Of Contents

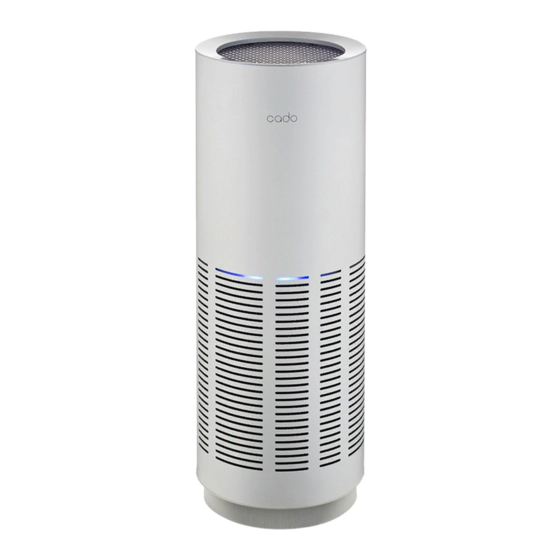

    Air Purifier AP-C200 Instruction Manual Table of Contents Safety Precautions Operating Precautions Installing the Unit Parts and Functions Installing the Deodorizing/Dust Collecting/Anti-Bacterial Filter How to Operate Maintenance Troubleshooting Specifications...
  • Page 3: Safety Precautions

    Safety Precautions Make sure you observe these safety precautions. Important information is printed on the product and in this instruction manual in order to prevent damage to property or prevent harm to the user or other people. Make sure you fully understand the following content (display/graphic symbols) before reading this text. If you ignore these precautions, it may cause serious injury by fire or electric shock.
  • Page 4 Required Plug the power plug in all the way. In case of an abnormality or malfunction, immediately stop its operation and unplug the power plug. If it is not plugged in all the way, it may cause electric If you continue operations during a malfunction, it may lead shock or fire.
  • Page 5: Operating Precautions

    Operating Precautions Do not block the air inlet or air outlet. Do not use the unit near a TV or radio. It may reduce the cleaning capability of the unit causing It may cause distortion of video images or noise. clean air not to circulate throughout the entire room.
  • Page 6: Parts And Functions

    Parts and Functions Handle When carrying the unit, insert your fingers Illumination intensity into the handle a , then lift up the unit b . sensor ☞ page 5 Air outlet (cleaned and sanitized air is emitted from the filter) Control panel Dust sensor cover ☞...
  • Page 7 Photocatalytic Lamp The blue activated carbon in the deodorizing/dust collecting/ anti-bacterial filter does not use the conventional ultraviolet ray reaction type, but instead uses a new type of photocatalytic technology that reacts with visible light. The lamp in the product uses a long life blue LED, and does not have any effects on eyes or the human body in the way ultraviolet rays do, but since the light is strong, when performing maintenance such as removing the filter to replace it, unplug the...
  • Page 8: Installing The Deodorizing/Dust Collecting/Anti-Bacterial Filter

    Installing the Deodorizing/Dust Collecting/Anti-Bacterial Filter Remove the cover. c Attach the Filter Start Date label on the filter. Write the filter Slide down the cover switch on the rear of the unit a , and use start date on the label, then attach it onto the side remove the cover b .
  • Page 9 Close the cover. With the cover switch slid down, attach the cover onto the unit. Note Again, make sure the top and bottom position of the filter is correct before attaching the cover.
  • Page 10: How To Operate

    How to Operate Mode Air volume indicator indicator Filter replacement indicator ☞ page 10 Rapid High Middle Automatic Timer indicator Power button Illumination intensity sensor ☞ page 5 Light button Mode button Air volume Timer button button Starting the Unit Changing the Air Volume Plug the power plug into an wall outlet.
  • Page 11: Maintenance

    Maintenance Notes when Cleaning ◦ Before cleaning, make sure to remove the power cord from the wall outlet. ◦ When wiping the unit, always use a soft cloth or cotton swab. Using a stiff brush or something similar may scratch or damage the unit. ◦...
  • Page 12 Replacing the Deodorizing/Dust Reset the filter replacement indicator. The filter replacement indicator will not turn off even Collecting/Anti-Bacterial Filter after the filter has been replaced. The indicator will start flickering after you press and hold the light button for about The deodorizing/dust collecting/anti-bacterial filter cannot be 5 seconds.
  • Page 13: Troubleshooting

    Troubleshooting Situation Points to check and how to handle Reference pages There is no air volume. Is the power cord plugged into the wall outlet correctly? → Plug the power cord into the wall outlet. The air volume is too weak. Did you remove the deodorizing/dust collecting/anti-bacterial filter from the polythene bag when you installed it? →...
  • Page 14 Situation Points to check and How to handle Reference pages The air purifying effect was not Is the unit placed in a location with bad air circulation such as in an area achieved. completely surrounded by something? → Make sure unit is located at least 30 cm away from walls, furniture, curtains, etc.
  • Page 15: Specifications

    , instruction manual, warranty card, power cord, Filter Start Date label Accessories Model name For AP-C200 series Dimensions (mm) ∅ 200 × 267 *1: Calculated based on the test method of the JEM1467 in the Standards of the Japan Electrical Manufacturers’ Association. Standard when operating on rapid mode.
  • Page 16 JA-00001-0301...
