Summary of Contents for Onix RA-125

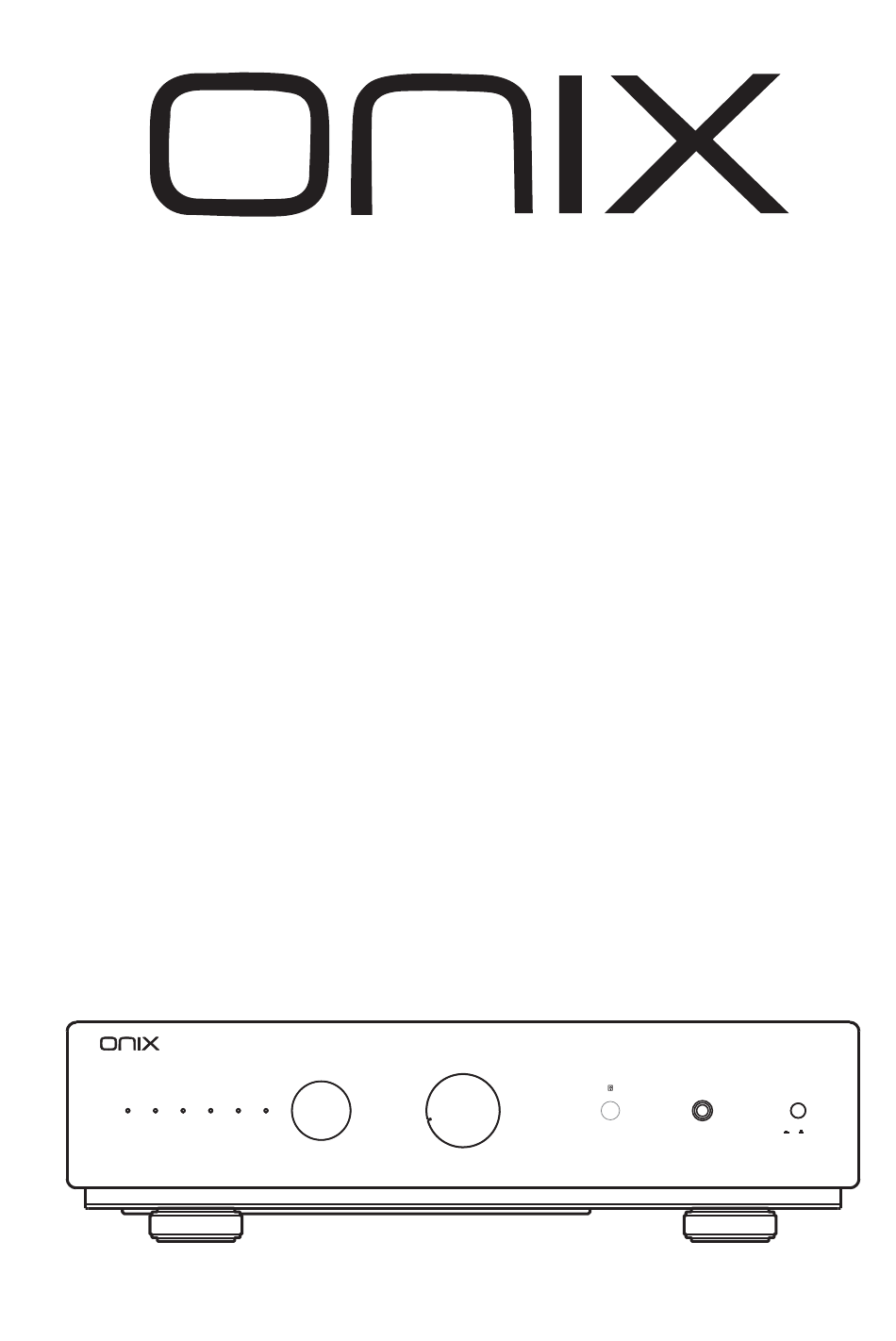

- Page 1 OWNER MANUAL RA-125 STEREO INTEGRATED AMPLIFIER SELECT VOLUME PHONE POWER TUNER TAPE BYPASS RA-125 A-125 STEREO INTEGRATED AMPLIFIER STEREO INTEGRATED AMPLIFIER...
-
Page 2: Notices For Use
We thank you for purchasing this ONIX Stereo Integrated Amplifier. Please read all the safety and operating instructions before using the product. Retain the manual for future reference and adhere to all warnings in the manual or on the amplifier. -
Page 3: Parts Name
A-125 STEREO INTEGRATED AMPLIFIER STEREO INTEGRATED AMPLIFIER 1. Signal input indicator 3. Volume control 5. Headphone output 2. Input selector 4. IR window 6. Power switch ONIX ENGLAND ELECTRONICS LTD RIGHT LEFT AC IN AC IN BYPASS TAPE TUNER TUNER... -
Page 4: Remote Control Function
Remote Control Function Volume up Input selection Volume down Model selection CD/AMP Please note that any key not allocated a function is not intended for use with this amplifier Pressing those keys will have no response. Install Batteries 1. Open the battery cover. 2. -
Page 5: Troubleshooting
3. To turn off the machine, first turn volume knob to min and then set power switch to OFF. 4. If you do not intend to use the amplifier for a long time, please unplug the AC power cable. Input switching Turn the SELECT knob on the panel or press the INPUT keys on the remote control to switch to the desired audio input. -
Page 6: Specifications
Specifications Input sensitivity 285mV/47K Ohms Max output power 128W/8 Ohms Frequency response 10Hz ~ 30KHz (-0.5dB) Channel separation >53dB Total harmonic distortion <0.003% (3W/8 ) Signal/noise ratio >104dB (A, weighted) Power consumption 135W Dimension (W D H) 430 401 119mm Net weight 13.8kg Accessories... - Page 8 SELECT VOLUME PHONE POWER TUNER TAPE BYPASS RA-125 A-125 STEREO INTEGRATED AMPLIFIER STEREO INTEGRATED AMPLIFIER ONIX ENGLAND ELECTRONICS LTD RIGHT LEFT AC IN AC IN BYPASS TAPE TUNER TUNER WARNING WARNING TO PREVENT FIRE OR SHOCK HAZARD TO PREVENT FIRE OR SHOCK HAZARD...
- Page 12 Due to continuous improvement, every specification and design ONIX ENGLAND ELECTRONICS LTD is subject to change at any time without further notice. www.onix-audio.co.uk...
