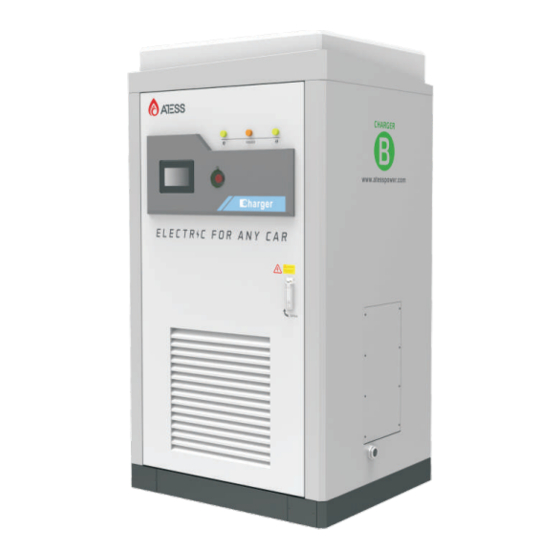

- Page 1 EVD-300D Shenzhen Atess Power Technology Co.,Ltd 3rd floor, building 9, Henglong industrial park, the fourth industrial zone of Shuitian community, Baoan district, Shenzhen, China DC quick charger User Manual + 86 755 2998 8492 info@atesspower.com www.atesspower.com...
-
Page 2: Table Of Contents
Contents Installation Safety Precautions 4.1 Installation conditions 4.2 Charger installation 4.3 Cable connection Overview 1.1 Product introduction Parameter configuration 1.2 Product Block Diagram (two guns) 5.1 Safety check before use 1.3 The main parameters 1.4 Product performance and features 1.5 Product use environment 1.6 Product Standards Packaging, transportation and storage... -
Page 3: Safety Precautions
Overview Before operating, please read the instruction manual carefully to understand the correct usage of the equipment. Please read it completely and save properly for future reference. 1.1 Product introduction In order to ensure the personal and property safety of the user at the time of installation of the product, relevant information is provided in the manual and highlighted with appropriate symbols. -
Page 4: Product Block Diagram (Two Guns)
1.3 The main parameters Tab2: Technical Data Sheet 3-Power indicator Green 1-Connector A running fault Item Unit Standard value 4- Emergency button indicator running Yellow;fault AC input voltage AC 400: ±15% 5-HMI 2-Connector B running fault 6-Cooling air inlet AC input current 440A indicator running... -
Page 5: Product Use Environment
Main function unit introduction Full protection, safe operation It has multiple protection functions such as input / output protection, self-test, input over / under-voltage protection, Output over-voltage / short-circuit protection, overheat / fault protection of rectifier unit, insulation protection, connection monitoring and protection of 2.1 Charging unit charger and battery. -
Page 6: Charger Function Introduction
Technical 2.2 Charger function introduction Item Unit Remark requirement 2.2.1 HMI 3. Protection features 1 Charge setting method: Can be automatically Input UV set value Adjustable restored Can be automatically Can choose automatic setting mode and manual setting mode. Input OV set value Adjustable restored a) Automatic setting means charging is performed according to the status and command of... -
Page 7: Operation Instructions
b) Storage Operation Instructions ① Transaction data is stored in non-volatile memory as records. ② Ensure that the data stored correctly, continuously, completely and effectively. ③ Keep not less than 10,000 records of space, the transaction records will be stored, the charger 3.1 Operation process can promptly prompt for data acquisition. - Page 8 Fig3.1.3 Click input the menuinterface Fig 3.1.4.3 Protection parameter setting page 3.1.4 System settings page Fig 3.1.4.4 Fault information display page Fig3.1.4.1 System parameter setting page Fig 3.1.4.5 Charger information display page Fig3.1.4.2 Network parameter setting page...
-
Page 9: Operational Precautions
3.1.5 After charging is complete During the process of using, dust should be regularly collected on the top, and the air inlet air filter or air filter should be cleaned or replaced. During the process of replacing the air filter, &... -
Page 10: Emergency Stop Switch Instructions
Installation 4.1 Installation conditions 3.5 Emergency stop switch instructions 1) The surrounding of the charger body shall meet the operating space not less than 1.2 meters, If a leakage occurs in the machine, immediately press the emergency stop switch. as shown below;... -
Page 11: Charger Installation
Note1: DC charger as a whole, regardless of transport or installation shall not be decomposed. The failure expansion. caused by retrofitting not authorized by ATESS does not cover the warranty. 2.Align the charger with the mounting holes and put it on the cement base, tight with M10X60, Note2: In the process of moving the DC charger can not tilt, fierce shaking or sudden force, such as a M12X60 bolt;... -
Page 12: Cable Connection
4.3 Cable connection 4.3.2 Cable requirements 4.3.1 Wiring Mounting hole diameter Cable Diameter Connect the three-phase cables embedded in the charger foundation to the input end of the charger, Pay attention to the connection of five lines,Color correspondence, Connect the ground wire on the cabinet Φ11,M10 screws recommended for fastening At least 150mm²... -
Page 13: Ordering Note
Ordering instructions and after-sales service Appendix II Electrical Schematics 7.1 Ordering note Must understand the equipment applications and uses, fill out the customer needs table; When ordering, provide product name, model, specifications, system parameters and configuration requirements; Users have special use of equipment or technical requirements, please consult with the factory technical staff, signed an agreement. - Page 14 The EVD-300D DC charger products features with high efficiency, advanced DSP control technology, perfect protection features, etc., to reliable operation, easy operation and easy maintenance.We believe that this product will be more widely used in many commercial and civil fields. To this end, we sincerely thank the majority of users and those concerned about the...
