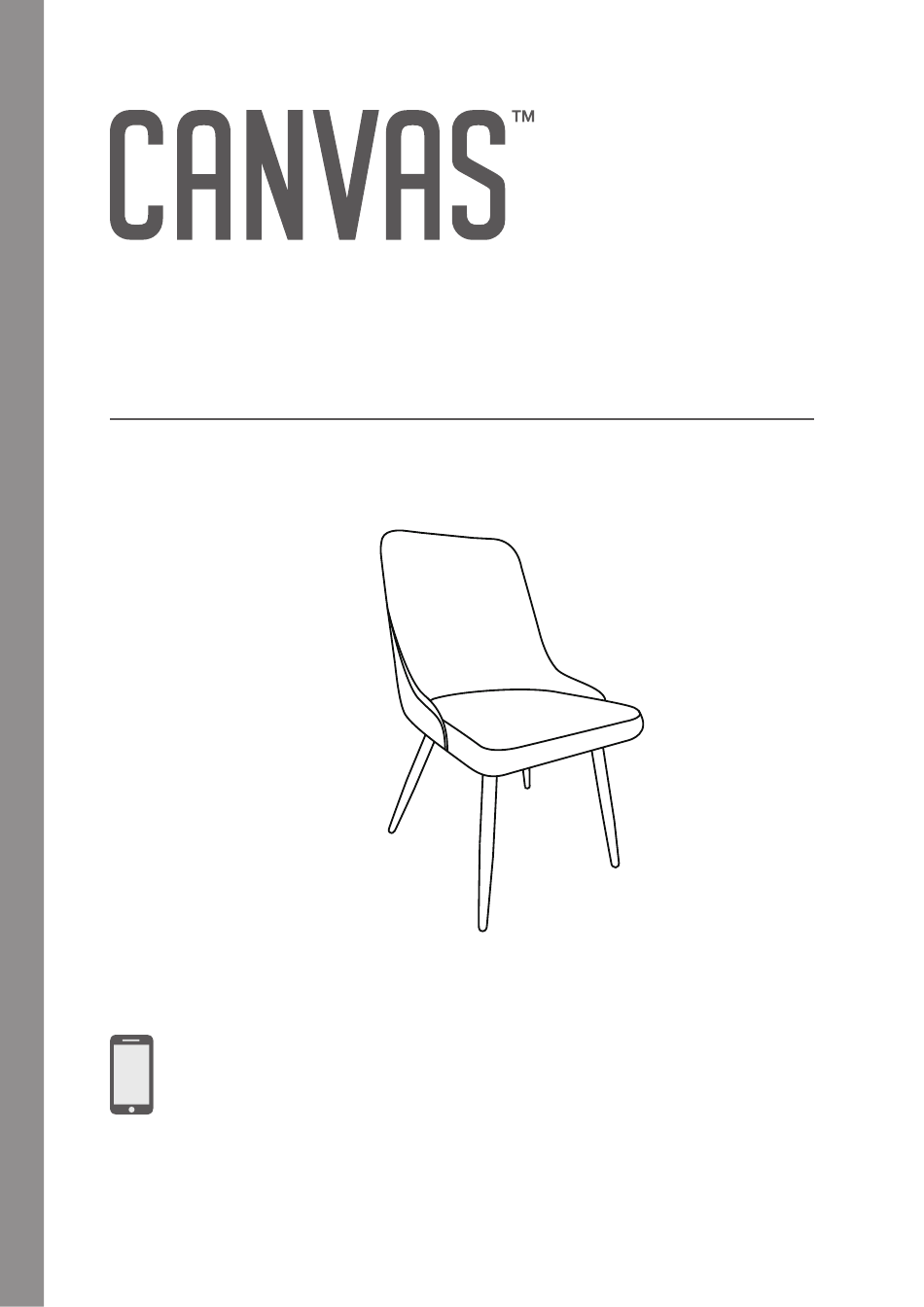

- Page 1 THOMPSON DINING CHAIR PRODUCT NO. 168-0109-6 ASSEMBLY INSTRUCTIONS HAVING TROUBLE? TOLL-FREE: 1-888-670-6684 IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference.
- Page 2 We would love to hear from you and welcome your thoughtful feedback. Visit our website at canadiantire.ca to tell us about your experience, and share your photos with us using #myCANVASstyle. Show us how you bring CANVAS products to life. We can’t wait to see!
-
Page 3: Table Of Contents
TABLE OF CONTENTS PartsList Exploded Parts Hardware List BeforeYouBeginAssembly Step-by-stepGuide TechnicalData Troubleshooting CaringforYourItem Warranty WARNING!TOREDUCETHERISKOFSERIOUSINJURY, READTHEFOLLOWINGSAFETYINSTRUCTIONSBEFORE ASSEMBLINGANDUSINGTHEPRODUCT. • P leasereadandunderstandthisentiremanualbeforeattemptingtoassemble, operate,orinstalltheproduct. • A nyassemblyormaintenanceoftheproductmustbecarriedoutbyadultsonly. • S omepartsmaycontainsharpedges.Wearprotectiveglovesifnecessary. • T opreventdamage,placeallpartsonalevelsurfaceduringassembly.Adda layerofprotectivesurfaceifneeded. • D uetothenatureofsteel,surfaceoxidation(rusting)willoccurifthisprotective coatingisscratched.Thisisanaturalprocess.Tominimizethiscondition,itis recommendedthatcarebetakenwhenassemblingandhandlingtheproductin ordertopreventthepaintfrombeingscratched. -
Page 4: PartsList
PARTS LIST ITEM DESCRIPTION THUMBNAIL QUANTITY Metal leg Metal leg Seat cushion THOMPSON DINING CHAIR... -
Page 5: Exploded Parts
EXPLODED PARTS THOMPSON DINING CHAIR... -
Page 6: Hardware List
HARDWARE LIST ITEM DESCRIPTION THUMBNAIL QUANTITY 4 ScrewM6X45 mm ScrewM6X30 mm Washer 1 Hex key THOMPSON DINING CHAIR... -
Page 7: BeforeYouBeginAssembly
BEFORE YOU BEGIN ASSEMBLY MAKE SURE ALL PARTS ARE PRESENT Compareallpiecestothepartsandhardwarelists,and makesureyouhavealltoolsrequiredforassembly. ASSEMBLE IN A CLEARED AREA Placeallpartsfromtheboxonthefloorinfrontofyouonaclean, dry,levelsurfacetoprotecttheproductasitisbeingbuilt. REMOVE PACKAGING MATERIALS Placepackingmaterialsbackinthebox.Donotdisposeof packagingmaterialsuntilassemblyiscomplete. READ EACH STEP CAREFULLY Makesureyouunderstandeachstep.Ifyouhaveanyquestions, contactCANVAS customerserviceat1-888-670-6684(toll free). THOMPSON DINING CHAIR... -
Page 8: Step-By-StepGuide
STEP-BY-STEP GUIDE STEP 1 Attach metal leg to metal leg with screw and tighten 80% with hex key THOMPSON DINING CHAIR... - Page 9 STEP-BY-STEP GUIDE STEP 2 Align holes of metal leg to the holes in the seat base . Attach using screws and washers only tightening to 80% into all holes. Once aligned, tighten all screws NOTE: Once assembly is complete, tighten each screw. THOMPSON DINING CHAIR...
- Page 10 STEP-BY-STEP GUIDE STEP 3 The assembly is complete. NOTE: The levelling feet can be adjusted. Do not over-extend or over-tighten the adjustable feet. THOMPSON DINING CHAIR...
-
Page 11: TechnicalData
TECHNICAL DATA 33 1/4'' (84.5 cm) 23'' 21 1/4'' (58.5 cm) (54 cm) SPECIFICATIONS ASSEMBLED DIMENSIONS (W x D x H) 21 1/4 x 23 x 33 1/4'' 54 x 58.5 x 84.5 cm 12.8 lb ASSEMBLED WEIGHT 5.8 kg 225 lb 7 oz MAXIMUM WEIGHT CAPACITY 102 kg... -
Page 12: Troubleshooting
TROUBLESHOOTING HAVING TROUBLE? LET US HELP YOU! TOLL-FREE: 1-888-670-6684 BEFORE RETURNING CALL US; Ifyouhavequestionsregardingyourproductorrequire YOUR PRODUCT WE CAN HELP warrantyassistance,pleasecallourcustomerservicehelpline. CARING FOR YOUR ITEM Spot clean fabric with mild detergent.Wipe legs with clean, damp cloth. Do not use bleach, acid or other abrasive cleaners. Do not stand or step on this chair. -
Page 13: Warranty
WARRANTY INFORMATION ThisCANVAS productcarriesaone(1)yearwarrantyagainstdefectsinworkmanshipand materials.TrileafDistributionagreestoreplacethedefectiveproductfreeofchargewithinthe statedwarrantyperiod,whenreturnedbytheoriginalpurchaserwithproofofpurchase.This productisnotguaranteedagainstwearorbreakageduetomisuseand/orabuse. PRODUCTNO.168-0109-6 MadeinChina ImportedbyTrileafDistributionTrifeuilToronto,CanadaM4S2B8 THOMPSON DINING CHAIR...
