P R E - A S S E M B L Y T I P S
1.
Read this manual carefully before starting assembly. Read each step completely
before beginning each step.
2.
Do not tighten until instructed to do so. If parts are tightened too soon, parts
may not easily fit together.
3.
Save these instructions and your proof of purchase (receipt) in the event that
the manufacturer has to be contacted for replacement parts.
TOOLS NEEDED FOR ASSEMBLY:
Phillips Screw driver
Cordless Drill
5/6" Socket driver bit

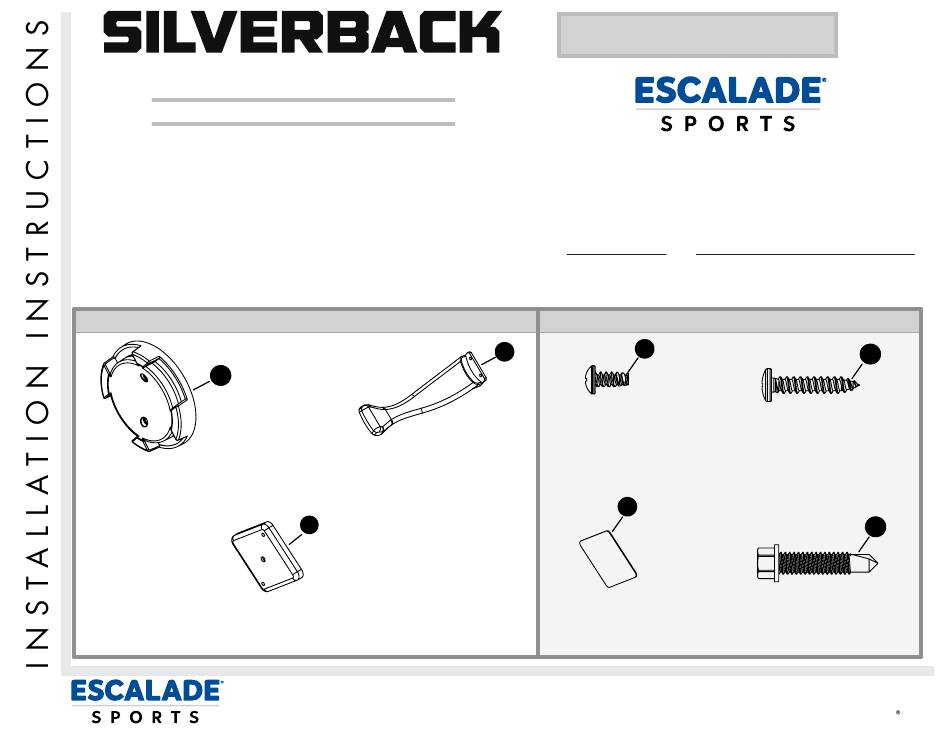

P A R T S L I S T ( N O T A C T U A L S I Z E )
1
BASE
3M-9137-00
QTY. 1
MOUNTING BRACKET
3M-9139-00
(QTY. 1)
GRIPPER FINGER
3M-9138-00
QTY. 4
3
Escalade® Sports products may be manufactured and/or licensed under the following patents.
6120397, 5816957, 5769744, 5119741, 4911085, 4717157, D460140, D420563, 8414431
Additional patents may be pending. One or more of the listed patents and/or pending patents may cover specific product.
B A L L H O L D E R
Please Do Not Return This Product To The Store!
®
Contact Escalade Sports customer service department at:
Phone:
1-800-USA-GOAL
Fax:
1-866-873-3536
E-mail:
basketball@escaladesports.com
Escalade Sports
Physical Location:
817 Maxwell Ave.
Evansville,
IN
47711
H A R D W A R E N E E D E D ( A C T U A L S I Z E )
4
2
#8 X .375 Phillips Head
Trilobular Screw
1B-7225-00
QTY. 10
6
TAPE PATCH
1M-6289-00
QTY. 1
MODEL NO.
B5455
Toll – Free !
Toll – Free !
Mailing Address: (Correspondence Only)
PO Box 889
Evansville,
IN
47706
5
#10 X 1.0 Phillips screw
1B-7226-00
QTY. 1
7
#10 X 1.125 Self Drilling Screw
1B-6821-00
QTY. 1
2021 Escalade Sports
2L-7952-00
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ESCALADE SilverBack B5455
Summary of Contents for ESCALADE SilverBack B5455
- Page 1 QTY. 1 QTY. 1 2L-7952-00 Escalade® Sports products may be manufactured and/or licensed under the following patents. 6120397, 5816957, 5769744, 5119741, 4911085, 4717157, D460140, D420563, 8414431 2021 Escalade Sports Additional patents may be pending. One or more of the listed patents and/or pending patents may cover specific product.
- Page 2 TOOL NEEDED HARDWARE NEEDED 1. Assemble four Gripper Fingers (#2) to Base (#1) as shown in Figure 1 & Back View. #8 X .375 Phillips Head Trilobular Screw 1B-7225-00 Phillips QTY. 8 BACK VIEW FIGURE 1 NOTE: Prepare hardware and tools below to be used for page 3 assembly steps. HARDWARE NEEDED TOOLS REQUIRED #8 X .375 Phillips Head...
- Page 3 DETAIL A If installing to the back of a basketball pole continue onto Step 2 on Flat Surface this page. If mounting to a Wall skip this page and continue on page 4. Peel 2. Clean the flat side of the mounting bracket surface with alcohol. Peel one side of the mounting Tape (#6) and adhere the to the Flat part of the Mounting Bracket (#2)as shown in Detail A.
- Page 4 If installing to the back of a basketball pole go back to Step HARDWARE NEEDED 2 on page 3. If mounting to a Wall continue on this page. NOTE: If you are mounting the Ball holder to a wall you will need to #8 X .375 Phillips Head #10 X 1.0 Phillips screw purchase either a drywall or masonry wall mounting kit...
