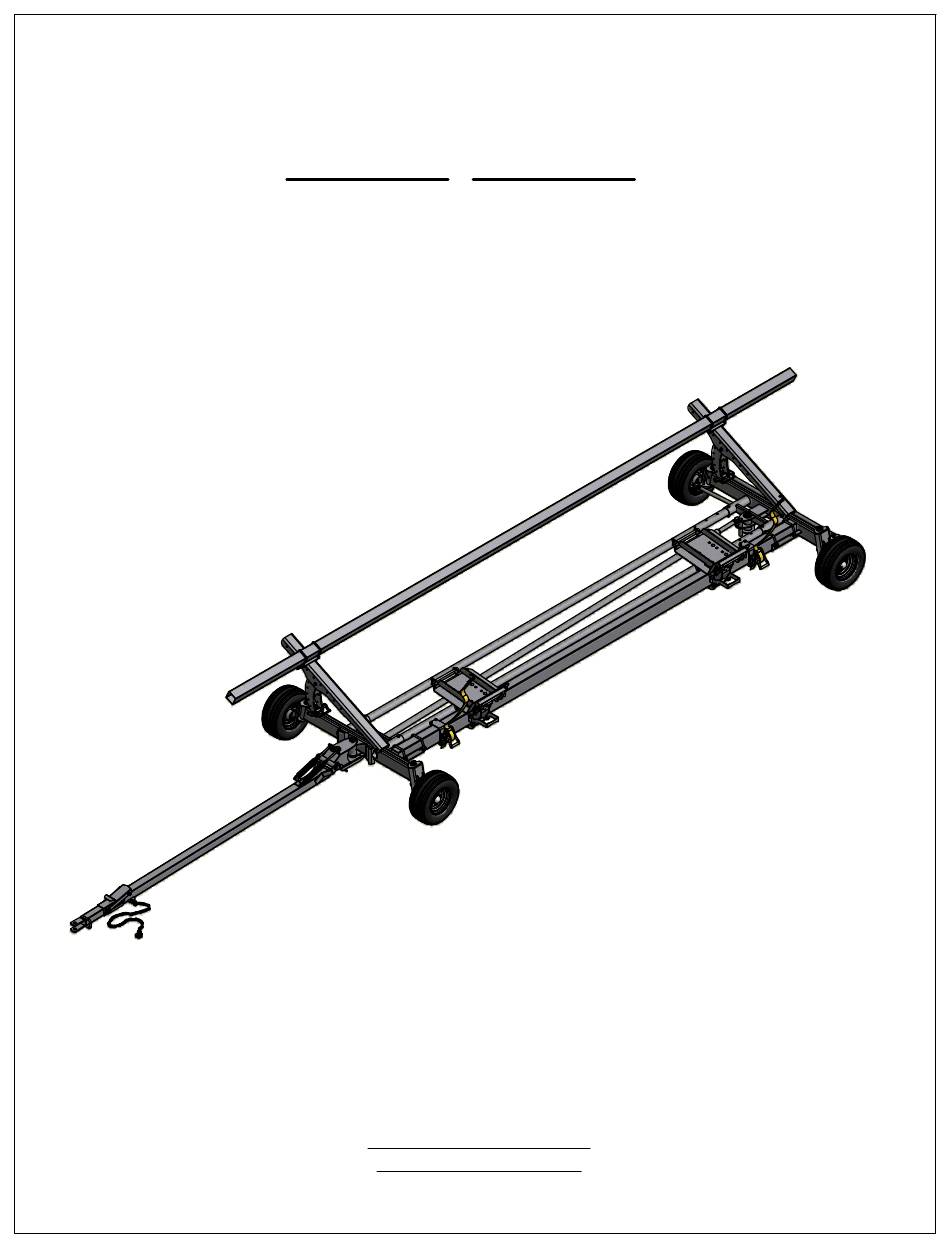

- Page 1 ASSEMBLY MANUAL CHCF25, CHCF30 4 Wheel Steer Combine Header Carrier HORST WAGONS 8082 Rd 129 Listowel, ON N4W 3G9 Canada 519-291-4162 1-866-567-4162 Fax 1-519-291-5388 sales@horstwelding.com www.horstwelding.com...
- Page 2 TABLE OF CONTENTS CHCF25, CHCF30 Included Parts--------------------------- 2 Step by Step Assembly Instructions------------------ 3 - 4 Adjustable Shoe Assembly Instructions--------------- 5 - 9 Spring Tongue Balancer------------------------------------ 10 Light Bracket Installation----------------------------------- 11...
- Page 3 CHCF25 & CHCF30 Included Parts Rear Axle Front Axle Bolt List 2 - tie down brackets 2 - adjustable shoe " x 6" bolts assemblies " bottom rail U-bolts " x 4 " bolts " top rail U-bolts " x 1 "...
- Page 4 CHCF25, CHCF30 Model Step by Step Assembly Instructions Insert from top side and tighten nut on bottom. (repeat on opposite end) STEP 1 : A. Install wheels. (Torque to 180 Lbs.-ft.) B. Bolt reach tubes between front & rear axles (use first hole and last hole on reach tube).
- Page 5 STEP 3 : " Drawpin Top Rail Bracket A. Pin vertical adjuster bracket to right bushing on top of axle using 5/8" drawpin. Diagonal Channel Vertical Adjuster Bracket B. Secure diagonal channel to left bushing on top of axle, and top hole on vertical adjuster bracket, "...
- Page 6 Step 5: A. Assemble with 4 - " x 1 " bolts and nuts B. Assemble with 2 - " x 11" pins and hitch pins Step 6: Adjust shoe to desired option: Option 1: Base pad ideal for low pofile corn heads or combines with low lifting clearance. Follow these instructions for set up: Step A: Remove pins...
- Page 7 Option 2: Standard large pad for draper heads. Follow these instructions for set up: Step A: Remove pins and clips Step B: Swing 2 corn head plates 180 Step C: Reinstall pins and clips Step D: Locate pad on header carrier bottom rail to desired position - 5 -...
- Page 8 Option 3: Highback pad for flex draper head. Follow these instructions for set up: Step A: Remove pins and clips Step B: Swing 2 corn head plates and large pad assembly 180 and reinstall longer pin and clip Step C: Position back extension here and reinstall shorter pin and clip Step D:...
- Page 9 Option 4: Low back pad for standard cutting platform. Follow these instructions for set up: Step A: Remove pins and clips Step B: Swing 2 corn head plates and large pad assembly 180 Step C: Position back extension here and reinstall longer pin and clip Step D: Reinstall shorter pin and clip...
- Page 10 Option 5: Standard corn head pad with low back. Follow these instructions for set up: Step A: Remove pins and clips Step B: Swing large pad assembly 180 Step C: Position back extension here and reinstall longer pin and clip Step D: Position corn head plates and reinstall shorter pin and clip...
- Page 11 Double Spring Tongue Balancer Kit Included Parts & Assembly Instructions Bolt to Tongue Bracket Bolt to Tongue Lift front of tongue at 45 angle to start eye bolts. Thread 5/8" nuts on eye bolts (approx. 2" - 3") until tongue can be lifted effortlessly. Parts List ITEM PART NUMBER...
- Page 12 Light Kit Installation (optional) : A. Secure mounting brackets (illustrated below). B. Run wire lead forward on outside of reach tube and along side of tongue, through loop. Secure exposed wire using wire clamps provided. Use nylon straps at front of tongue. (Wire lenth does not need to be altered) Wagon not exactly as pictured.
