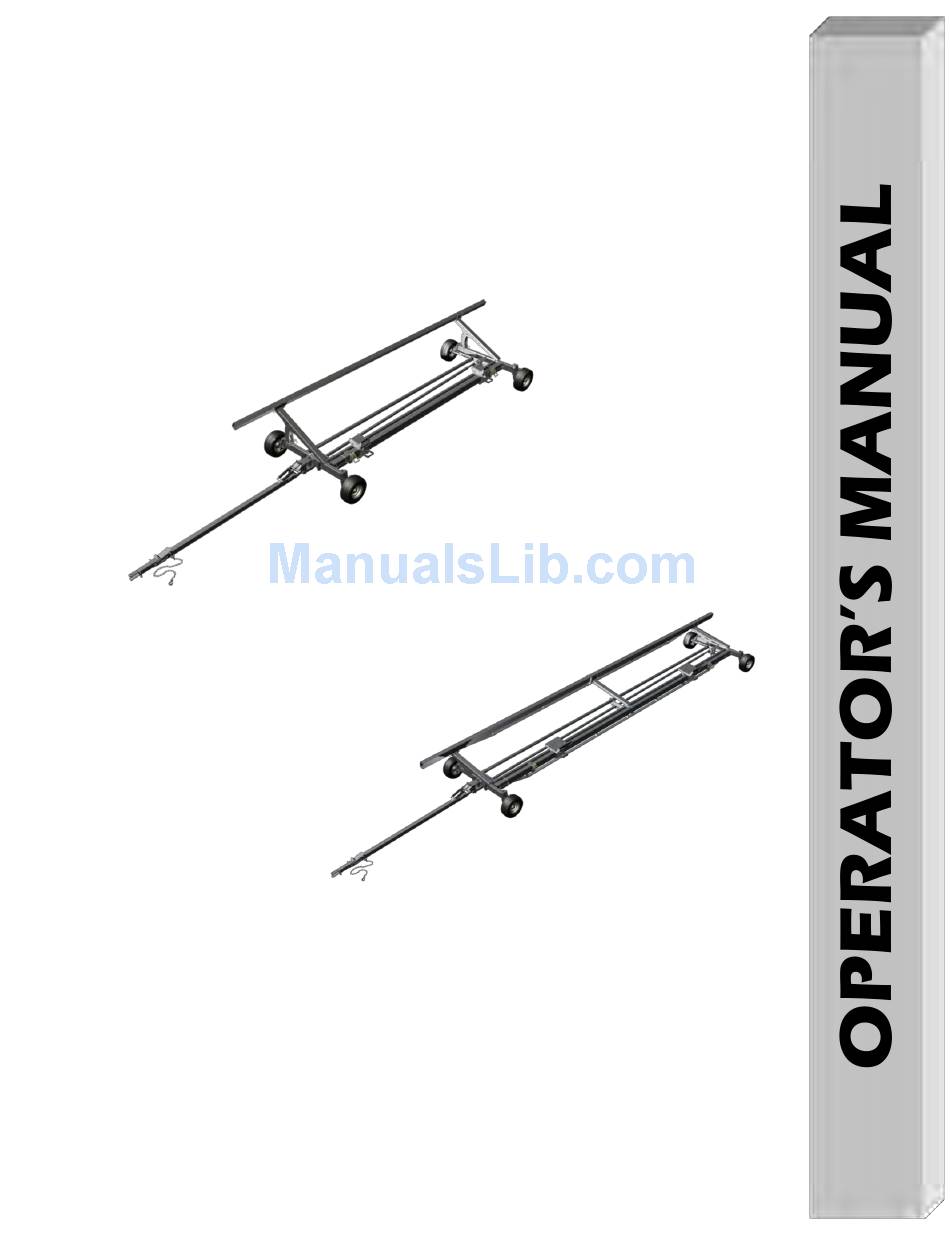

- Page 1 HORST WAGONS CHCF25, CHCF30, CHCF36, CHCF42 CHCFD36, CHCFD42 Contour Header Wagon Manual # CHCF_2012_03 May 2012...
-
Page 3: Table Of Contents
Loading Header……………………………………………..…………6 -7 Top Rail & Shoe Positions……………………………………………….8 Parts Illustrations……………………………………………..……….9-14 Complete Wagon………………………………..……9-10 Front Axle…………………………….………………….…11 Rear Axle………………………………….………….…….12 Tongue……………………………………….……….…..13 Shoe……………………………………………………...…14 Light Kit……………………………………………………..15 Warranty Policy…………………………………………………………..16 HORST WELDING 8082 Rd 129 Listowel, ON N4W 3G8 Canada 519-291-4162 1-866-567-4162 Fax 1-519-291-5388 sales@horstwelding.com www.horstwelding.com - 1 -... -
Page 4: Introduction, General Information, Serial Number
Horst Welding at the telephone number or address listed on the previous page of this manual. Keep this manual available for reference whenever this product is being handled or used. Provide this manual to any new owners and/or operators. -
Page 5: Definitions Of Safety Terms And Symbols, Accident Prevention
The safety information given in this manual does not replace any safety codes, insurance needs, federal, state and local laws. ACCIDENTS CAN BE PREVENTED WITH YOUR HELP! The best safety device is a careful operator. Horst Welding YOU are responsible to familiarize yourself, and anyone and your dealer ask that YOU be that careful, responsible else who will operate, maintain, or work around this equipment operator. -
Page 6: Wagon Specifications
HEADER WAGON SPECIFICATIONS CHCF25 CHCF30 CHCF36 CHCF42 11' 5" 11' 5" 11' 5" 11' 5" 79" 79" 79" 79" 34' 8" 37' 2" 46' 2" 49' 8" 37" 67" 31 1/2" 61 1/2" MODEL CHCF25 CHCF30 CHCF36 CHCF42 CHCFD36 CHCFD42... -
Page 7: Operation / Maintenance
INITIAL OPERATION / MAINTENANCE WARNING BE CERTAIN ALL POWER IS SHUT OFF BEFORE ADJUSTING, SERVICING, CLEANING OR LUBRICATING THE HEADER WAGON. BEFORE FIRST USE: Inspect Wagon for shipping damage. If damage does exist, do not use until damaged parts have been replaced or repaired. -
Page 8: Braking Requirements
BRAKING SYSTEM REQUIREMENTS: WARNING TOW LOADS SAFELY. Stopping distance increases with speed and weight of towed loads and on slopes. Towed loads with or without brakes that are too heavy for the tractor or are towed too fast can cause loss of control. Consider total weight of equipment and its load. - Page 9 LOADING THE HEADER (cont.): ► If possible, Grain Header should rest on main beam along bottom rear of header. If header is not equipped with beam (as in picture) rest on vertical posts/brackets on rear of header. ► For Corn Header, shoe must be turned over and placed directly under rear skid plate on bottom of header. - 7 -...
-
Page 10: Top Rail & Shoe Positions
Proper Top Rail Position; Vertical - Front of header must make contact before heel. Horizontal - Nylon pads (behind cutter bar) must land squarely on top of rail. (Grain Header) Heel should drop 4-6 inches after front has made contact. This allows for trouble- free head hookup. -
Page 11: Parts Illustrations
CHCF Model CHCF25 & CHCF30 2012 - Current Parts List Parts List ITEM PART NUMBER DESCRIPTION ITEM PART NUMBER DESCRIPTION 22-1456 Bottom Rail 22-1573 Top Rail Support Channel 22-1619 22-1572 Joiner Tie Rod Assembly Top Rail Mount Assembly WA-RR18 18ft Reach 11-1238 5/8 x 6 Bolt &... - Page 12 CHCF Model CHCF36 & CHCF42 Parts List Parts List ITEM PART NUMBER DESCRIPTION ITEM PART NUMBER DESCRIPTION 11-1025 5/8 x 4 1/2 Hex Bolt & Locknut 22-1593 6 x 4 Clamp Plate 11-1026 5/8 Lock Nut 22-1619L 30' Wheelbase Joiner Tie Rod Assembly 11-1103 22-1698 ES176XHD Rod End R Thread...
-
Page 13: Front Axle
CHCF Model WA-FCHCF Front Axle 2012 - Current 3.11 3.10 Parts List Parts List ITEM QTY PART NUMBER DESCRIPTION ITEM QTY PART NUMBER DESCRIPTION 22-1738 3.11 11-1016 Tongue Bracket Assembly (inc. 1.4, 1.5, 1.6) 3/16 x 2 Cotter Pin 11-1059 1-1/8 x 10-3/8 Bolt Gr.2 11-1009 Cup (13620) -
Page 14: Rear Axle
CHCF Model WA-RCHCF Rear Axle 2012 - Current 10.1 10.6 10.1 10.2 10.10 10.11 10.4 10.3 10.8 10.4 10.9 10.7 Parts List Parts List ITEM PART NUMBER DESCRIPTION ITEM PART NUMBER DESCRIPTION 11-1437 10.6 11-1073 Steering Spindle Assembly (Right) [Seal(CR20148)] 11-1548 Left Rear Spindle Assembly 10.7... - Page 15 Double Spring Tongue Balancer Kit Included Parts & Assembly Instructions Bolt to Tongue Bracket Bolt to Tongue Lift front of tongue at 45 angle to start eye bolts. Thread 5/8" nuts on eye bolts (approx. 2" - 3") until tongue can be lifted effortlessly. Parts List ITEM PART NUMBER...
-
Page 16: Shoe
CHCF Model Adjustable Shoe Assembly For use with "Corn Head", turn opposite side of Optional Draper Head Shoe Shoe Riser Pad, up. (Rotate 180 ) Quantities are per Wagon (not per assembly) QTY. QTY. (Draper) REF. # CHC PART # DESCRIPTION 5/8 Flat Washer 11-1440... -
Page 17: Light Kit
Wagon Light Kit (optional) Parts List ITEM PART NUMBER DESCRIPTION WA-LK Light Bracket Complete Assembly 22-1585 Light BracketTop Plate 22-1587 Light Bracket Bar 22-1586 Light Bracket Bottom Brace 11-1583 1/2" x 7 1/2" UNC Hex Bolt 11-1584 3/8" Locknut LA-SB1022 1/2"... -
Page 18: Warranty Policy
Recommended repairs and cost are to be discussed with, and agreed on, by an authorized Horst Welding representative. Repair and labor (at an agreed rate) will be performed by a dealer for Horst Welding or a repair shop designated by Horst Welding.
