  • Page 1 LUBMATIC ELECTRICAL LIQUID GREASE PUMPS INTRODUCTION AND USER MANUAL VERSION 2.00...
  • Page 2: Introduction

    ALLFETT is among the few companies whose products meet the exact technical and quality standards for a correct central lubrication. We present our high quality and advanced product design concept to our worldwide costumers through our strong brand.
  • Page 3: Table Of Contents

    CONTENTS INTRODUCTION PAGE 1 CONTENTS PAGE 2 PRODUCT DESCRIPTION AND GENERAL SPECIFICATIONS PAGE 3 PRODUCT DIMENSIONS PAGE 4 PRODUCT COMPONENTS PAGE 5 FUNCTION PAGE 6 LUBRICANT INFORMATION PAGE 7 ELECTRICAL CONNECTION PAGE 8 RULES TO COMPLY WHILE USING AND WARRANTY CONDITIONS...
  • Page 4: Product Description And General Specifications

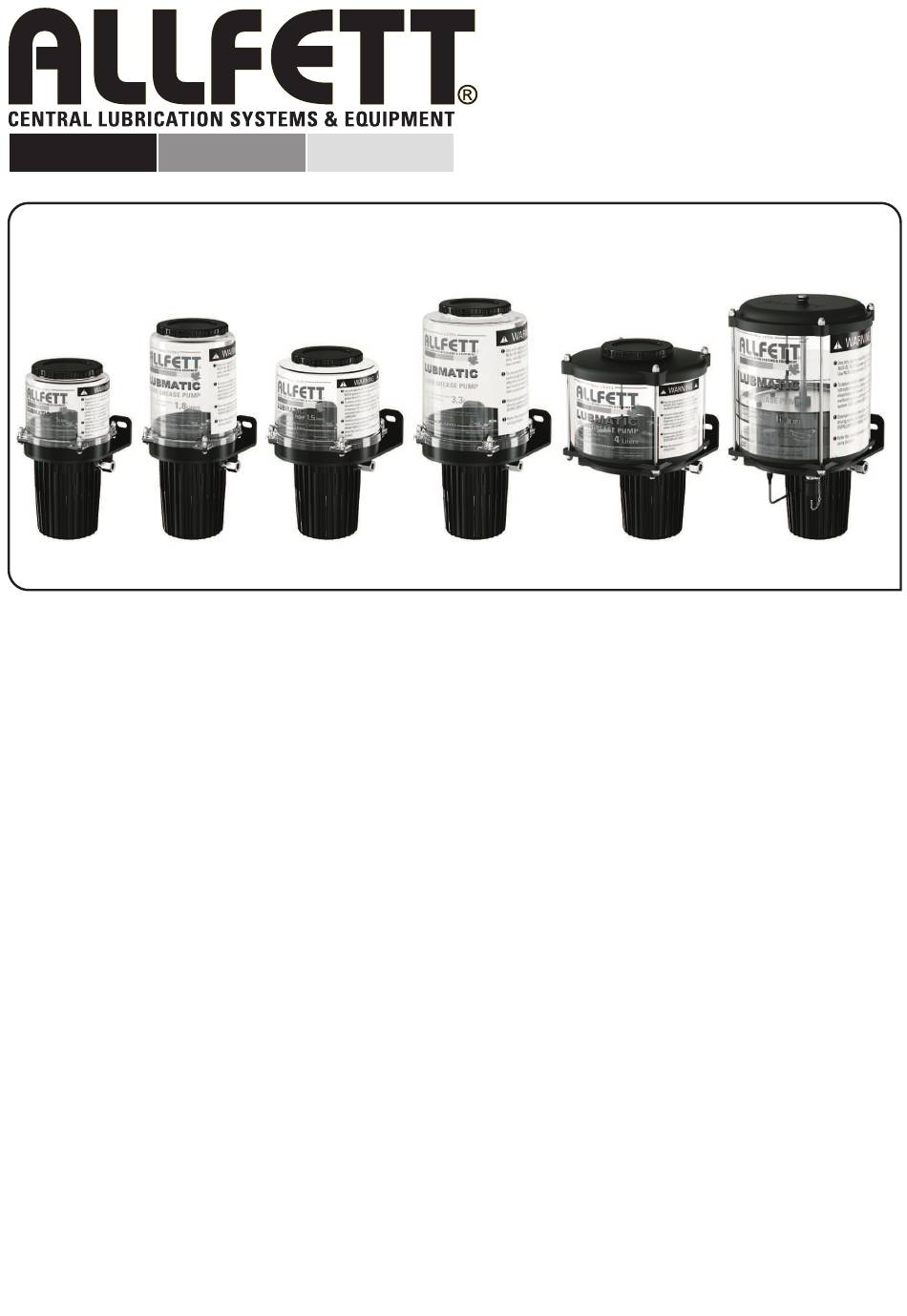

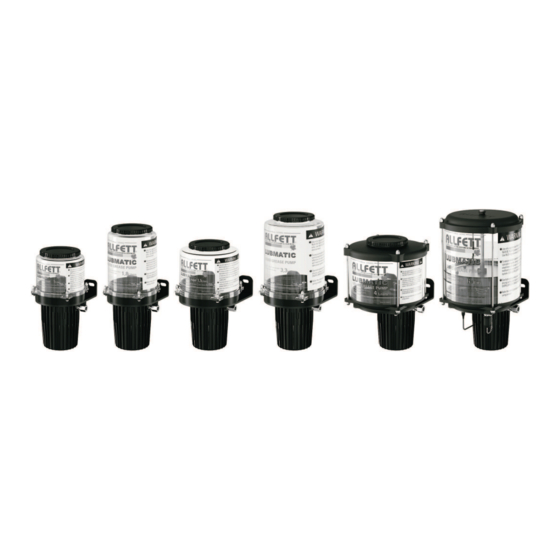

    PRODUCT DESCRIPTION LUBMATIC oil and liquid grease pumps has wide range of application are such as machinery, equipments and vehicles. LUBMATIC pumps are specially designed to use with single line lubrication systems. Thanks to usable lubricant type variey LUBMATIC series provide wide range of facility.
  • Page 5: Product Dimensions

    GENERAL DIMENSIONS Drawings shown below represents LUBMATIC pump dimensions according to different types. Dimensions are grupped on different reservoir volumes. All necessary dimensional values shown on table below. Depth Width A.w. A.n. 1 Liter 1,5 Liters 1,8 Liters 3,3 Liters...
  • Page 6: Product Components

    PUMP COMPONENTS Drawings shown below represents LUBMATIC pump components according to different types. Drawings are grupped on different reservoir volumes. All necessary information about standard and optional components described below. Filling cover Reservoir cover Exhaust Reservoir Saplama Follower piston system...
  • Page 7: Function

    By-pass system discharge the lubricant inside main lubrication line after motor stops. All distributors are set up again and get ready to next lubrication cycle. LUBMATIC pumps are designed to use with single line system distributors. If necessary, progressive distributors can be used with LUBMATIC pumps. Detailed information about using progressive distributors with LUBMATIC pumps, please call ALLFETT Technical service.
  • Page 8: Lubricant Information

    Lubricant type - Liquid grease NLGI 000 and NLGI 0000 class liquid grease can be used with LUBMATIC pumps. Because of the flow characteristics of liquid grease the NLGI class range should be changed at different weather conditions and also temperature differencies.
  • Page 9: Electrical Connection

    ELECTRICAL CONNECTION Pumps have an electric driven motor. Electrical motor and pressure switch connection cables must be connected properly as described in schema below. ELECTRONIC CONTROL CARD EK-10 Control card connection socket 9 8 7 6 5 4 3 2 1...
  • Page 10: Rules To Comply While Using And Warranty Conditions

    RULES TO COMPLY WHILE USING AND WARRANTY CONDITIONS If damages occur while additional transports after delivering the goods from ALLFETT to the customer DISQUALIFIES THE WARANTY. Pumps are pruduced to be used in centralized lubrication systems only with time intervals. It is not convenient to operate pumps more than 2 hours continuously.
  • Page 11 Technical Service must be informed to any other possible troubles and necessary procedures must be performed. ALLFETT Mekanik ve Elektronik Sistemler SAN. TIC. LTD. STI and ALLFETT Pazarlama ve Dis Ticaret LTD. STI. does not accept responsibility for damages described in items above on equipments which ALLFETT systems are installed.
  • Page 12: Pump Maintenance

    PUMP MAINTENANCE 1. Pump is not working ; Electrical connections of the pump may be loosen or broken. Check the electrical cables and connections of the system according to schemas on page 8. All electrical connections and lines must be checked regularly for damage and to ensure that they are firmly in place.
  • Page 13: Order Information

    ORDER INFORMATION Product name Voltage Rezervoir Product number LUBMATIC oil and liquid grease pump 12 V DC 1 liter 10 12 01 B1 1,5 liters 10 12 15 B1 1,8 liters 10 12 18 B1 3,3 liters 10 12 33 B1...
  • Page 14: Warranty

    Industrial and Commerce, The general Administration of Protection of Consumer Right and Competition, in accordance with the law numbered 4077 . PRODUCER COMPANY NAME : ALLFETT Mekanik ve Elektronik Sistemler San. ve Tic. Ltd. Þti. CENTRAL ADRESS Yeni Eyup Bulvari, Topcular Cad. Set Ustu, No:1 Demirkapý- Rami / Ýstanbul...
  • Page 15: Warranty Conditions

    WARRANTY CONDITIONS The warranty period is two years from the date of delivery. The product including all its components is under the warranty of our company. In case of defects within the warranty period the period spent in repairing is added to the warranty period.
