- Page 1 LUBMATIC AC Standard ELECTRICAL OIL AND LIQUID GREASE PUMP INTRODUCTION AND USER MANUAL VERSÝYON 4.00 - 10.2018...
-
Page 2: Introduction
ALLFETT is among the few companies whose products meet the exact technical and quality standards for a correct central lubrication. We present our high quality and advanced product design concept to our worldwide costumers through our strong brand. -
Page 3: Table Of Contents
CONTENTS Introduction PAGE 1 Contents PAGE 2 PAGE 3 Product description PAGE 4 Dimensions PAGE 5 Product components PAGE 6 Functional description PAGE 7 Lubricant information Electrical connection information PAGE 8 Rules to comply while using and warranty conditions... -
Page 4: Product Description
PRODUCT DESCRIPTION LUBMATIC series are oil and liquid grease pumps designed to use with single line lubrication systems. Single line lubrication system delivers lubricant in small amounts at regular intervals while equipment is operating, and provides lubricant film in protection. -
Page 5: Dimensions
PRODUCT DIMENSIONS Technical drawings below represents the LUBMATIC pump models which has 3 liters reservoir capacities. Dimension unit is milimeter. 152mm Mounting holes 188mm Ø8 PAGE... -
Page 6: Product Components

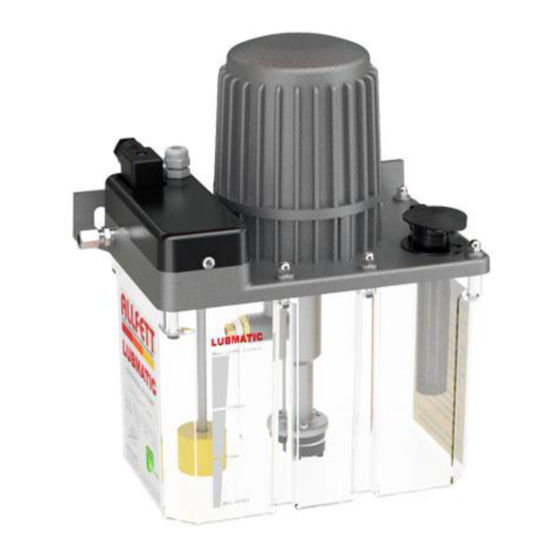

PRODUCT COMPONENTS Technical drawings below represents the LUBMATIC pump’s standard model without integrated control unit. Optional specifications described seperately. Motor cover Pump chassis Filling cover Filling filter Reservoir Pump system Electrical coupling Electrical socket Electrical box Mounting holes outlet coupling... -
Page 7: Functional Description
Single line system distributors are now redy to operate for another lubrication cycle. If necessary, progressive distributors can be used with LUBMATIC pumps. Detailed information about using progressive distributors with LUBMATIC pumps, please call ALLFETT Technical service. Unouthorized modifications to the units and the use of unouthorized spare parts and aids prohobited also disqualify the warranty. -
Page 8: Lubricant Information
LUBRICANT INFORMATION Lubricant specifications can be used with LUBMATIC pumps are described below. Before filling reservoir please read carefuly these informations. Lubricant will be used in the system must certainly be clean and any foreign materials must not enter while filling. -
Page 9: Electrical Connection Information
ELECTRICAL CONNECTION Pumps have an electric driven motor. Electrical lines must be connected properly as described in schema below. Electrical connection socket is placed near motor box. All electrical connections and lines must be checked regularly for damage and to ensure that they are firmly in place. -
Page 10: Rules To Comply While Using And Warranty Conditions
RULES TO COMPLY WHILE USING AND WARRANTY CONDITIONS If damages occur while additional transports after delivering the goods from ALLFETT to the customer DISQUALIFIES THE WARANTY. Pumps are pruduced to be used in centralized lubrication systems only with time intervals. It is not convenient to operate pumps more than 2 hours continuously. - Page 11 Technical Service must be informed to any other possible troubles and necessary procedures must be performed. ALLFETT Mekanik ve Elektronik Sistemler SAN. TIC. LTD. STI and ALLFETT Pazarlama ve Dis Ticaret LTD. STI. does not accept responsibility for damages described in items above on equipments which ALLFETT systems are installed.
-
Page 12: Maintenance Information
PUMP MAINTENANCE 1. Pump is not working : Electrical connections of the pump may be loosen or broken. Check the electrical cables and connections of the system according to schemas on page 8. All electrical connections and lines must be checked regularly for damage and to ensure that they are firmly in place. -
Page 13: Order Information
ORDER INFORMATION Product name Ordering number 10 22 ST 02 LUBMATIC Standard 220 V AC - 3Liters 10 38 ST 02 LUBMATIC Standard 380 V AC - 3Liters SALES PAGE... -
Page 14: Warranty
Industrial and Commerce, The general Administration of Protection of Consumer Right and Competition, in accordance with the law numbered 4077 . PRODUCER COMPANY NAME : ALLFETT Mekanik ve Elektronik Sistemler San. ve Tic. Ltd. Þti. CENTRAL ADRESS Yeni Eyup Bulvari, Topcular Cad. Set Ustu, No:1 Demirkapý- Rami / Ýstanbul... -
Page 15: Warranty Conditions
DANGEROUS OR HARMFUL CONDITIONS TO ENVIRONMENTAL AND HUMAN HEALTH DURING USE All ALLFETT systems are producing according to relevant provisions of security regulations. There is no risk for environmental and human health during use. TRANSPORT AND STORAGE There are no restrictions on transportation by land, air and sea.
