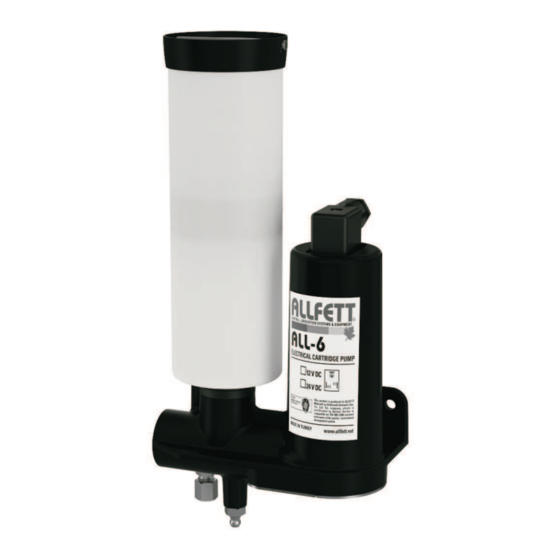

- Page 1 ALL-6 Replaceable Cartridge Type ELECTRICAL GREASE PUMPS INSTRUCTION AND USER MANUAL VERSION 3.0 - 06.2018...
- Page 2 ALLFETT is among the few companies whose products meet the exact technical and quality standards for a correct central lubrication. We present our high quality and advanced product design concept to our worldwide costumers through our strong brand.
-
Page 3: Table Of Contents
CONTENTS INTRODUCTION PAGE 1 CONTENTS PAGE 2 PRODUCT DESCRIPTION AND GENERAL SPECIFICATIONS PAGE 3 PRODUCT DIMENSIONS PAGE 4 PRODUCT COMPONENTS PAGE 5 FUNCTION PAGE 6 LUBRICANT INFORMATION PAGE 7 - 8 ELECTRICAL CONNECTION PAGE 9 RULES TO COMPLY WHILE USING AND WARRANTY CONDITIONS... - Page 4 Electrical connections of the pump can easily be done by electrical socket placed onto motor cover. DC type motor voltages can be selected from 12 or 24 Volts. This pump can also be used with ALLFETT electronic control cards if necessary.
- Page 5 GENERAL DIMENSIONS Technical drawings below represents the ALL-6 pump. Dimension unit is milimeter. Ø69mm 115mm Ø8 Assembly holes Ø6 75mm 135mm Page...
-
Page 6: Product Components
PRODUCT COMPONENTS Technical drawings below represents the ALL-6 pump standard and optional model. Optional components described seperately. Support pin Support cover Spring Electrical socket Follower piston Grease cartridge Cartridge support Motor protection Cartridge sealing cover Security valve Pump body... -
Page 7: Function
FUNCTIONAL DESCRIPTION Appropriate electrical energy (12 or 24 V DC ) is connected to system ; Electrical motor start to operate. Spring returned pump element piston vacuums the lubricant inside reservoir. Rotational movement of the eccentric pushes pump element piston so that the lubricant vacoomed before is sended to pump element outlet with high pressure. -
Page 8: Lubricant Information
LUBRICANT INFORMATION Lubricant specifications can be used with ALL-1 pumps are described below. Before filling reservoir please read carefuly these informations. Lubricant will be used in the system must certainly be clean and any foreign materials must not enter while filling. - Page 9 LUBRICATION INFORMATION Grease penetration properties is variable at different environment temperatures.The environmental temperature around lubrication lines must be concidered for choosing the correct grease. Grease properties should be appropriate that environmental temperatures. Changing NLGI classes at different temperatures is important to correct lubrication.
- Page 10 CARTRIDGE REPLACEMENT INSTRUCTIONS Cartridge replacing steps are explained by sections below. The most important point about replacing the cartridge is, there must not be air gaps inside of cartridge place (Figure-6) on pump body. After old cartridge removed, little amount grease remaining inside old cartridge should be used to fill cartridge place.
- Page 11 SPRING SUPPORT INSTALLING INSTRUCTIONS Spring support will be installed after the grease cartridge has been installed properly on the pump. Please make sure that the cartridge is properly installed first. Cartridge should stand vertical on the pump and not sloped at any angle. The seals located in the neck of the cartridge must be crushed for 1 or 2 milimeters.
-
Page 12: Electrical Connection
PUMP ELECTRICAL CONNECTIONS ALL-6 pump electrical connections must be done in accordance with the diagram shown below. Electrical connections will be done using the socket on the pump motor cover. The following diagram represents the connection terminals on the motor cover of the pump. - Page 13 If transformer is used to convert voltace AC to DC ; Use minimum 5A current transformer. If Pump is connected to ALLFETT electronic control unit ; Control unit may be on the waiting period. Wait until working period starts. When necessary, pressind to additional cycle button on control card operates system for single period.
- Page 14 Pump may be controlled by PLC unit ; Decrease the working time period by programming PLC unit. Pump may be controlled by ALLFETT electronic control unit ; Refer to the user manual for the control unit used on system. Contact with ALLFETT service if necessary. Page...
-
Page 15: Rules To Comply While Using And Warranty Conditions
RULES TO COMPLY WHILE USING AND WARRANTY CONDITIONS Damages occur while additional transports after delivering the goods from ALLFETT to the customer DISQUALIFIES THE WARANTY. Pumps are produced to lubrication purpose only and are not convenient to work more than 2 hours continuously. - Page 16 Technical Service must be informed to any other possible troubles and necessary procedures must be performed. ALLFETT Mekanik ve Elektronik Sistemler SAN. TIC. LTD. STI and ALLFETT Pazarlama ve Dis Ticaret LTD. STI. does not accept responsibility for damages described in items above on equipments which ALLFETT systems are installed.
- Page 17 PRODUCT ORDER INFORMATION Product name Ordering number ALL- 6 pompa - 12 V DC - NLGI 2 10 12 06 A5 ALL- 6 pompa - 24 V DC - NLGI 2 10 24 06 A5 Grease cartridge - 675 Gr. - Empty GR 00 01 BE Grease cartridge - 350 Gr.
-
Page 18: Warranty
Industrial and Commerce, The general Administration of Protection of Consumer Right and Competition, in accordance with the law numbered 4077 . PRODUCER COMPANY NAME : ALLFETT Mekanik ve Elektronik Sistemler San. ve Tic. Ltd. Þti. CENTRAL ADRESS Yeni Eyup Bulvari, Topcular Cad. Set Ustu, No:1 Demirkapý- Rami / Ýstanbul... -
Page 19: Warranty Conditions
DANGEROUS OR HARMFUL CONDITIONS TO ENVIRONMENTAL AND HUMAN HEALTH DURING USE All ALLFETT systems are producing according to relevant provisions of security regulations. There is no risk for environmental and human health during use. TRANSPORT AND STORAGE There are no restrictions on transportation by land, air and sea.
