Summary of Contents for Allfett ALL-600

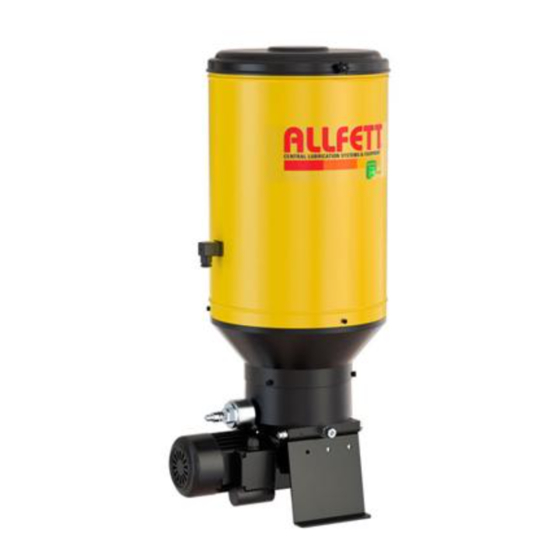

- Page 1 ALL-600 Industrial type ELECTRICAL GREASE PUMPS INTRODUCTION AND USER MANUAL VERSION 2.00...
-
Page 2: Introduction
ALLFETT is among the few companies whose products meet the exact technical and quality standards for a correct central lubrication. We present our high quality and advanced product design concept to our worldwide costumers through our strong brand. -
Page 3: Table Of Contents
CONTENTS INTRODUCTION Page 1 CONTENTS Page 2 PRODUCT DESCRIPTION Page 3 PRODUCT DIMENSIONS Page 4 PRODUCT COMPONENTS Page 5 FUNCTIONAL DESCRIPTION Page 6 SECURITY VALVE DESCRIPTION Page 7 LUBRICANT INFORMATION Page 8 PUMP FILLING DESCRIPTION Page 9 ELECTRICAL CONNECTIONS... -
Page 4: Product Description
Pump element operates as a piston pump and sends pressurized grease to single outlet. Operating principle of pump element allows ALL-600 pumps to be reliable and durable in long life time. ALL-600 pump standard type equipped with a filling coupling with filter to avoid contamination of grease. -
Page 5: Product Dimensions
PRODUCT DIMENSIONS Technical drawings below represents the ALL-600 pump models with optional components. Dimension unit is milimeter. 510mm 450mm 470mm Page... -
Page 6: Product Components
PRODUCT COMPONENTS Technical drawings below represents the ALL-600 pump models with optional components. Atandard and optional components described below. Low and High Level Reservoir cover indicator system (Optional) Follower piston (Optional) Reservoir Low Level indicator system (Optional) Filling filter... -
Page 7: Functional Description
FUNCTIONAL DESCRIPTION Along with “ AC ” voltage electrical energy connected to ALL-600 pump filled with grease ; Electrical motor starts to operate when electrical energy sended by electronic control system. Pump element piston vacuums the lubricant inside reservoir. Rotational movement of the eccentric pushes pump element piston so that the lubricant vacoomed before is sended to pump outlet with high pressure. -
Page 8: Security Valve Description
SECURITY VALVE DESCRIPTION Working pressure is adjusted by security valve on ALL-600 pump body. This security valve directs the grease to reservoir when pressure is increased coused by any blockage. Security valve has also an indicator pin that goes out if pressure is higher than adjusted value. -
Page 9: Lubricant Information
LUBRICANT INFORMATION Lubricant specifications can be used with ALL-600 pumps are described below. Before filling reservoir please read carefuly these informations. Lubricant will be used in the system must certainly be clean and any foreign materials must not enter while filling. -
Page 10: Pump Filling Description
2. METHOD - Filling pump from filling coupling with filter. ALL-600 pump has filling cover on pump body. Filter inside filling cover prevents the entering any dirt or smal particules to pump reservoir. We are strongly recomend that you to use filling coupling to fill pump. -
Page 11: Electrical Connections
ELECTRICAL CONNECTIONS Pumps have an electric driven motor. Electrical lines must be connected properly as described in schema below. Motor electrical connection (380 V AC ) Any maintenance on pumps under electrical voltage could lead to personal injury. Disconnect all electrical power before any maintenance . - Page 12 ELECTRICAL CONNECTIONS Low level indicator has 2 option as shown on schemas below. It is important that the correct option which is ordered must be connected to pump. Low level indicator options are sold separatelly. It is important that the correct low level option must be connected to pump.
-
Page 13: Rules To Comply While Using And Warranty Conditions
Technical Service must be informed to any other possible troubles and necessary procedures must be performed. 15. ALLFETT Mekanik ve Elektronik Sistemler SAN. TIC. LTD. STI and ALLFETT Pazarlama ve Dis Ticaret LTD. STI. does not accept responsibility for damages described in items above on equipments which ALLFETT systems are installed. -
Page 14: Pump Maintenance
Pump has low level indicator ; Control unit (PLC or ALLFETT control system) may give failure and stops the pump because of the grease inside pump decreased under minimum level. Fill the reservoir according to items 10, 11, 12, 13, 14, 15 and 16 in RULES TO COMPLY WHILE USING AND WARRANTY CONDITIONS. -
Page 15: Order Information
ORDER INFORMATION Product name Order number ALL-600 pump with low&high level 10 60 38 5A and follower piston ALL-600 pump with low level 10 60 38 5S SALES Page... -
Page 16: Warranty
Industrial and Commerce, The general Administration of Protection of Consumer Right and Competition, in accordance with the law numbered 4077 . PRODUCER COMPANY NAME : ALLFETT Mekanik ve Elektronik Sistemler San. ve Tic. Ltd. Þti. CENTRAL ADRESS Yeni Eyup Bulvari, Topcular Cad. Set Ustu, No:1 Demirkapý- Rami / Ýstanbul... -
Page 17: Warranty Conditions
WARRANTY CONDITIONS The warranty period is two years from the date of delivery. The product including all its components is under the warranty of our company. In case of defects within the warranty period the period spent in repairing is added to the warranty period. - Page 18 DANGEROUS OR HARMFUL CONDITIONS TO ENVIRONMENTAL AND HUMAN HEALTH DURING USE All ALLFETT systems are producing according to relevant provisions of security regulations. There is no risk for environmental and human health during use. TRANSPORT AND STORAGE There are no restrictions on transportation by land, air and sea. In general, products should be stored in a dry and dust-free environment.
- Page 19 NOTES Page...
