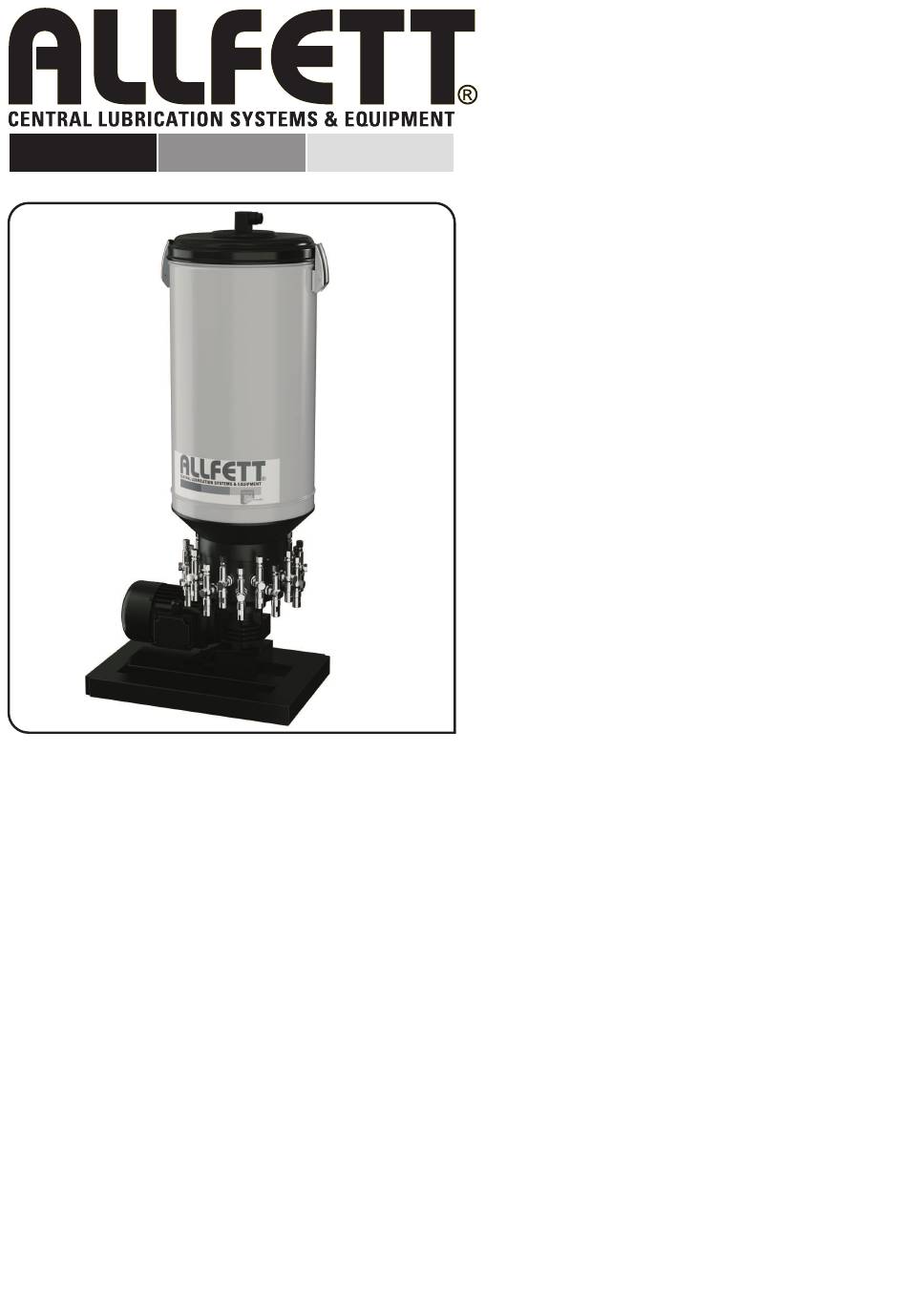

- Page 1 ALL-25 Multi Line Series ELECTRICAL GREASE PUMP INTRODUCTION AND USER MANUAL VERSION 2.00...
-
Page 2: Introduction
ALLFETT is among the few companies whose products meet the exact technical and quality standards for a correct central lubrication. We present our high quality and advanced product design concept to our worldwide costumers through our strong brand. -
Page 3: Table Of Contents
CONTENTS INTRODUCTION PAGE 1 CONTENTS PAGE 2 PRODUCT DESCRIPTION AND GENERAL SPECIFICATIONS PAGE 3 PRODUCT DIMENSIONS PAGE 4 PRODUCT COMPONENTS PAGE 5 FUNCTION PAGE 6 PUMP ELEMENT DESCRIPTION PAGE 7 LUBRICANT INFORMATION PAGE 8 - 9 STANDARD ELECTRICAL CONNECTION... -
Page 4: Product Description And General Specifications
1 and up to 20 pump elements can be installed to pump body. The pump reservoir is manufactured from sheet metal. Level of grease is controlled by ALLFETT low level sensor. ALL-25 multi line pumps can be controlled and monitored with externall electronic control cards. -
Page 5: Product Dimensions
280mm 425mm 400mm QUALITY SYSTEM This product is produced by ALLFETT Mekanik ve Elektronik Sistemler ISO 9001 San. Tic. Ltd. Sti. company, which, is certificated by Bureau Veritas with BUREAU VERITAS certificate to compatible for ISO 9001:2008 standard and owner of the Certification quality management system. -
Page 6: Product Components

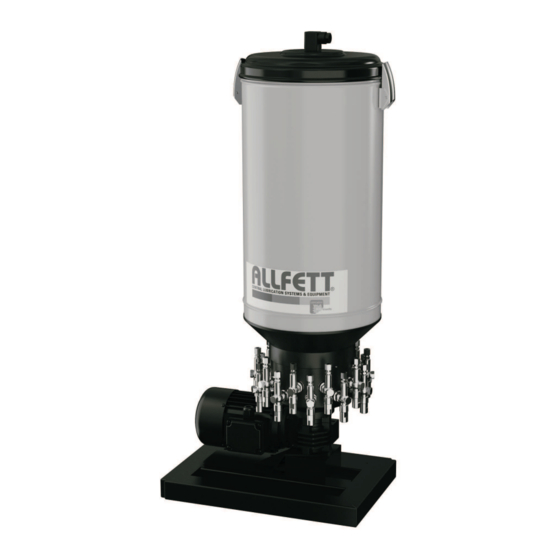

PRODUCT COMPONENTS Technical drawings below represents the ALL-25 multi line type pump which has 25 liters reservoir capacities. Optional and standart components are described below. Low and high level indicator (Optional) Reservoir cover Reservoir Follower piston locks (Optional) Low level... -
Page 7: Function
FUNCTIONAL DESCRIPTION Appropriate electrical energy (220 or 380 V AC ) is connected to system ; Electrical motor start to operate and agitator inside reservoir rotates clockwise. Spring returned pump element piston vacuums the lubricant inside reservoir. Rotational movement of the eccentric pushes pump element piston so that the lubricant vacoomed before is sended to pump element outlet with high pressure. -
Page 8: Pump Element Description
PUMP ELEMENT DESCRIPTION ALL-25 multi line grease pumps are available in several displacement volumes. These volumes can be created with pump elements which are optionally offered. 1 to 20 Pump elements can be applied onto ALL-25 Multi Line type pump body to take grease out. Even though single pump element can be used as outlet, multiple pump elements can be bridged as single outlet to get more displacement. -
Page 9: Lubricant Information
LUBRICANT INFORMATION Lubricant specifications can be used with ALL-25 pumps are described below. Before filling reservoir please read carefuly these informations. Lubricant will be used in the system must certainly be clean and any foreign materials must not enter while filling. - Page 10 LUBRICATION INFORMATION Grease penetration properties is variable at different environment temperatures.The environmental temperature around lubrication lines must be concidered for choosing the correct grease. Grease properties should be appropriate that environmental temperatures. Changing NLGI classes at different temperatures is important to correct lubrication.
-
Page 11: Standard Electrical Connection
Any maintenance on ALL-25 pumps under electrical voltage could lead to personal injury. Disconnect all electrical power before any maintenance . If ALL-25 pump will be used with ALLFETT EK-9 external control box, electrical lines must be connected properly as described in schema below. -
Page 12: Optional Electrical Connection
OPTIONAL ELECTRICAL CONNECTION ALL-25 multi line pumps has 2 different type low level indicator option. Only low level indicator and low and high level indicator connections are described below separatelly. Please make sure that you have one of this option before installing. -
Page 13: Rules To Comply While Using And Warranty Conditions
RULES TO COMPLY WHILE USING AND WARRANTY CONDITIONS Damages occur while additional transports after delivering the goods from ALLFETT to the customer DISQUALIFIES THE WARANTY. Pumps are produced to lubrication purpose only and are not convenient to work more than 2 hours continuously. - Page 14 Technical Service must be informed to any other possible troubles and necessary procedures must be performed. ALLFETT Mekanik ve Elektronik Sistemler SAN. TIC. LTD. STI and ALLFETT Pazarlama ve Dis Ticaret LTD. STI. does not accept responsibility for damages described in items above on equipments which ALLFETT systems are installed.
-
Page 15: Pump Maintenance
Fill the reservoir according to items 10, 11, 12, 13, 14, 15 and 16 in RULES TO COMPLY WHILE USING AND WARRANTY CONDITIONS. If ALLFETT control card is connected the system ; Electronic control card may be in waiting period. Wait until working time starts. -
Page 16: Pump Element Maintenance
PUMP ELEMENT MAINTENANCE First use of the pump after filling reservoir, air mut be send out from pump element(s). To do this operation please read description below ; Filling the pump must be done by grease nipple on pump body. -
Page 17: Order Information
PRODUCT ORDER INFORMATION Product name - Description Ordering numbers ALL-25 Multi line Pump - 380 V AC - 25 Liters - Standard 10 38 25 CH ALL-25 Multi line Pump - 380 V AC - 25 Liters - Low level 10 38 26 CH ALL-25 Multi line Pump - 380 V AC - 25 Liters - low &... -
Page 18: Warranty
Industrial and Commerce, The general Administration of Protection of Consumer Right and Competition, in accordance with the law numbered 4077 . PRODUCER COMPANY NAME : ALLFETT Mekanik ve Elektronik Sistemler San. ve Tic. Ltd. Þti. CENTRAL ADRESS Yeni Eyup Bulvari, Topcular Cad. Set Ustu, No:1 Demirkapý- Rami / Ýstanbul... -
Page 19: Warranty Conditions
DANGEROUS OR HARMFUL CONDITIONS TO ENVIRONMENTAL AND HUMAN HEALTH DURING USE All ALLFETT systems are producing according to relevant provisions of security regulations. There is no risk for environmental and human health during use. TRANSPORT AND STORAGE There are no restrictions on transportation by land, air and sea. - Page 20 PAGE...
