- Page 1 BELLE 870/60000/2 10/21 RANGE Operators Manual UKCA Declaration of Conformity EC/EU Declaration of Conformity...
-
Page 2: Declaration Of Conformity (Doc)
VINÇOTTE nv/sa (NB0026) carried out Internal Control of Production with Assessment of Technical Documentation and Periodical Checking as per Annex VI of 2000/14/EC Technical Files are held by Ray Neilson at the Altrad Belle address stated above:- Place of Declaration:- Sheen, Nr. -
Page 3: Ec Declaration Of Conformity (Doc)
EC Declaration Of Conformity (DOC) We, Altrad Belle, Sheen, Nr. Buxton, Derbyshire, SK17 0EU, GB declare that the DoC is issued under our sole responsibility and belongs to the followings product(s): Signed by: PRODUCT TYPE ..... MODEL........Ray Neilson SERIAL No....... -
Page 4: How To Use This Manual
KNOW how to safely use the unit’s controls and what you must do for safe maintenance. (NB Be sure that you know how to switch the ALWAYS wear or use the proper safety items required for your personal protection. If you have ANY QUESTIONS Altrad Belle (UK): Contents How to use this manual .....................................4... -

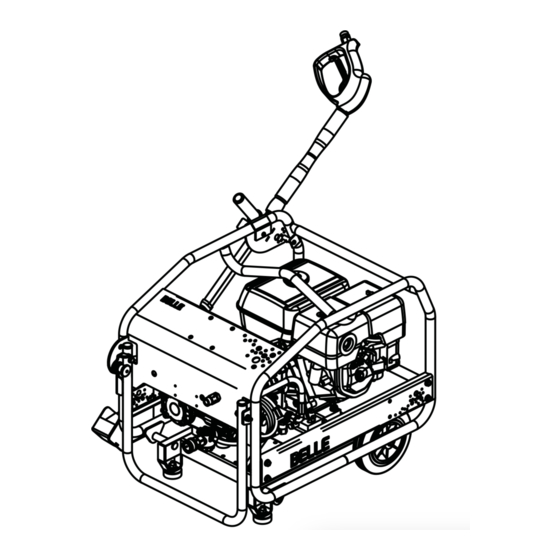

Page 5: Machine Description
Machine Description... -
Page 6: Technical Data
Technical Data 1462 1155 1087 Model PWX 08/180 PWX 13/230 PWX 15/250 PWX 15/250D Weight (Kg) Engine Engine Power (Hp-kW) Engine RPM Electric Start Water Flow (lpm) Max. Water Pressure (bar - psi) Fuel Tank Capacity (Ltrs) Gearbox Driven Pump Sound Power Level (dB(A)) Environment Safe Disposal. - Page 7 Decals A. Altrad Logo Decals. C. Information Decal. D. Safety Decal. E. High Pressure Outlet Decal Lifting Point Decal A. Altrad Logo Decal. C. Information Decal Please Read Wear Protective Wear Ear Wear Eye Operators Manual Footwear Protection Protection D. Safety Decal E.
-
Page 8: General Safety
General Safety BEFORE STARTING THE PRESSURE WASHER Improper maintenance or use can be hazardous. Read and Understand this section before you CAUTION perform any maintenance, service or repairs. GET HELP machine OFF DO NOT USE THE PRESSURE WASHER • DO NOT •... -
Page 9: Start And Stop Procedure
Start and Stop Procedure STOPPING - HONDA GX200, GX240 & GX390 OFF the loads. Throttle Lever CLOSED position. STARTING - HONDA GX200, GX240 & GX390 Choke Lever Fuel ON/OFF • ON / OFF Lever. • • ON / OFF switch clockwise to the ‘I’ position. •... -
Page 10: Pre-Operation
Operating Instructions Before you operate or carry out any maintenance on this machine YOU MUST READ and STUDY WARNING this manual. PRE-OPERATION IMMEDIATELY OFF. appropriate ear defenders. HOSE CONNECTION - HIGH PRESSURE OUTLET (MACHINE MUST BE TURNED OFF) CAUTION OPERATION The high pressure of water may cause the lance to jolt. -
Page 11: Service And Maintenance
Service and Maintenance NOTE:- 6 Months / Yearly / Item Attention Daily 500 Hours 1000 Hours Engine Hoses Pump Fuel Filter Water Filter High Pressure Nozzle Oil / Fuel Type & Quantity - Spark Plug Type Quantity Capacity Spark Plug Electrode Oil Type Fuel Type... -
Page 12: Troubleshooting Guide
Troubleshooting Guide Problem Cause Remedy Machine stops suddenly or will not start. Blown fuse. No water supply. Sudden pressure loss. No chemical supply. Low pressure. Low pressure, machine is noisy and vibrates. Pump will not by-pass. Water drips from pump box. Oil drips from pump bottom. -
Page 13: Warranty
Warranty operation or user maintenance instructions. • • • Warranty Claims For warranty claims: Write to: Warranty Registration: http://www.bellegroup.com/index.php?p=warranty_registration Replacement Parts www.Altrad-Belle247.com... - Page 14 ALTRAD BELLE Sheen, Nr. Buxton, Derbyshire, SK17 0EU, GB Tel. +44 (0)1298 84606 - Fax +44 (0)1298 84722 - Email: sales@altrad-belle.com www.Altrad-Belle.com BELLE EU IMPORTER ADDRESS LIGHT ADRESSE DE L'IMPORTATEUR - DIRECCIÓN DEL IMPORTADOR - ENDEREÇO DO IMPORTADOR - ADRES IMPORTEUR CONSTRUCTION IMPORTØRENS ADRESSE - IMPORTEUR ADRESSE - INDIRIZZO DELL'IMPORTATORE - IMPORTÖRENS ADRESS - IMPORTØRADRESSE...
