Summary of Contents for Altrad BELLE
- Page 1 BELLE 870/20008/4 07/18 ROLLER STRIKER Operators Manual • Spare Parts Book...
- Page 2 Lawaai Technische dossiers zijn in handen van Ray Neilson op de Belle groep hoofdkantoor adres, dat staat boven Vi, Belle Group Sheen UK, Sheen, Nr. Buxton, Derbyshire, SK17 0EU, GB, erklærer hermed, at hvis det i dette certifikat beskrevne produkt er købt hos en autoriseret Belle Group forhandler i EU, er det i overensstemmelse med følgende EØF-direktiver: 2006/42/CE (Dette direktiv erstatter direktiv 98/37/EF), 2004/108/EØF (som ændret...
- Page 3 Müra Tehniline faile hoitakse Ray Neilson kell Belle grupi peakontor aadress, mis on märgitud eespool. Mēs, Belle Group Sheen UK, Nr. Buxton, Derbyrshire, SK17 0EU, ar šo apliecinām, ar šo apliecinu, ka gadījumā, ja produkts aprakstīts šajā sertifikātā ir iegādājies no pilnvarota Belle grupas dīlera teritorijā...
-
Page 4: Table Of Contents
ALWAYS wear or use the proper safety items required for your personal protection. If you have ANY QUESTIONS about the safe use or maintenance of this unit, ASK YOUR SUPERVISOR OR CONTACT: Altrad Belle (UK): +44 (0) 1298 84606 Contents How to use this manual .....................................4... -
Page 5: Machine Description

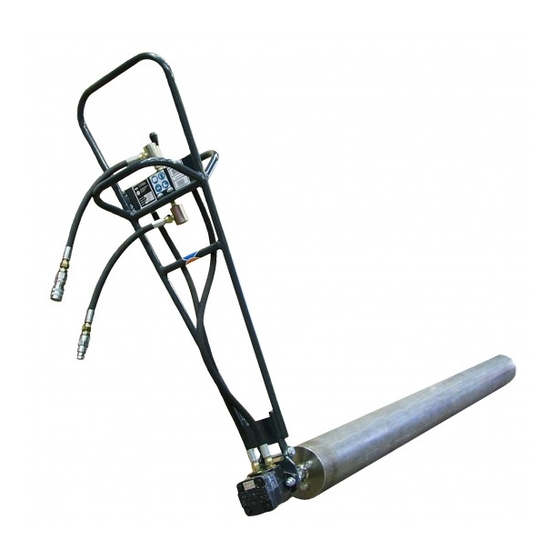

Machine Description Pneumatic Option Hydraulic Option 1. Motor 6. Motor 2. Compressor Claw 7. Control Lever 3. Operating Handle 8. Couplings 4. Control Lever 9. Drive Connector 5. Drive Connector 10. Operating Handle Technical Data Roller Striker Sectional Roller Striker Model Tube Length (M) 3.66 - 7.92... -
Page 6: General Safety
It is the responsibility of the operator to ensure that he/she fully understands how to operate this equipment safely. If you are unsure about the safe and correct use of the ‘Roller Striker’, consult your supervisor or Altrad Belle. -
Page 7: Operating Instructions
Operating Instructions Improper operation can be hazardous. Ensure that you are familiar with the operation of the CAUTION Compressor and the Roller Striker before use. Start and Stop procedure - Hydraulic Models 1. Refer to the manufacturers Operating Instructions Manual for the start up procedure for Hydraulic Power Packs. -
Page 8: Troubleshooting Guide
Tube not rotating. Sectional tubes incorrectly. Reconnect correctly connected. Tube still not rotating. Major fault. Contact Service Agent or Altrad Belle. Check drive end connection. Re-connect if necessary. Unusual noise or operation of the tube. Check pull handle connection. Re-connect if necessary. -
Page 9: Service & Maintenance
Before any maintenance is carried out on the machine, ensure that is has been disconnect from any power source. Always ensure that on the Pneumatic roller striker that the air lubricator is kept topped up with oil. Use only Altrad Belle AL4 lubricating oil or equivalent. - Page 10 Roller Striker - Pull Handle 1-01 Item Part Number Number Description 19.0.708 ....Hand Grip ........2 129.0.049 ....Handle Assembly .....1 7/10010 ....Setscrew M10 x 30 ....2 05.8.016 ....Circlip........1 12.0.313 ....Bearing ........1 129.2.000 ....Retaining Pin ......1 129.0.050 ....Shaft ........1 8/10006 ....Nyloc Nut M10 ......2 4/1005 ....Washer M10 ......2 129.3.007 ....Pull Handle Complete .....
- Page 11 Roller Striker - Pneumatic Drive End 2-01 Item Part Item Part Number Number Description Number Number Description 19.1.021 ....Coupling ........1 06.8.018 ....Key ..........1 129.0.044 ....Spacer ........1 129.0.036 ....Extension Shaft .......1 129.0.032 ....Main Handle ......1 16.3.000 ....Gearbox ........1 15.0.097 ....Ball Valve .........1 06.3.004 ....Key ..........1 14.0.578 ....Hosetail........2 129.2.002 ....Drive Coupling ......1...
- Page 12 Roller Striker - Pneumatic Motor 2-02 Item Part Item Part Number Number Description Number Number Description 87.2.320 ....Drive Nut........1 87.2.303 ....Gasket ........1 87.2.318 ....Snap Ring ........1 87.2.323 ....Governor Shield.......1 87.2.325 ....Bearing Cover......1 87.2.322 ....Governor........1 87.2.301 ....Bearing Front ......1 87.2.309 ....Main Body........1 07.4.001 ....Capscrew (1/4”x1”UNC) ..3 19.1.562 ....Spanner (2”) ......1 05.4.007 ....Spring Washer (1/4”) ....3...
- Page 13 Roller Striker - Lubricator 2-03 1, 2 , 9 ,10,11 Item Part Number Number Description 19.1.020 Coupling (1”) ......2 129.0.044 Spacer ........2 14.0.021 Nipple ........1 14.0.082 Ball Valve (1”) ......1 29.9.028 Filter Regulator ......1 21.0.242 Pressure Gauge ......1 129.0.051 Frame ........1 129.0.052 Removable Side Strip ....1 02.0.018...
- Page 14 Roller Striker - Hydraulic Drive End 3-01 Item Part Item Part Number Number Description Number Number Description 00545 Coupling 3/8” BSP Male 4/1204 Washer ........4 00546 Coupling 3/8” BSP Female 9/12004 Bolt M12 x 50......2 5/0007 Bonded Seal 129.0.063 Motor Mounting Bracket ..1 14.0.054 Hydraulic Fitting 3/8”...
- Page 15 Roller Striker - Hydraulic Motor (White) 3-02 1 1 1 Item Part Number Number Description 29.9.080 Seal Kit (From M/c #102625) (Up To Serial #129350095950) 129.3.103 Seal Kit (From Serial #129350095951) 129.3.102 Hydraulic Motor Kit (From M/c #102625) (Up To Serial #129350095950) 6/1149 Hydraulic Motor (From Serial #129350095951)
- Page 16 Roller Striker - Hydraulic Motor (Parker) 3-04 Item Part Number Number Description 29.9.067 Seal, Dust ........1 29.9.068 Back Up Ring......1 29.9.069 Seal, Lip........1 29.9.070 Rotary Valve ......1 29.9.063 Check Valve Ball ......2 29.9.071 IGR Assembly 3.6 cu in / rev ...1 29.9.072 Snap Ring (Extra Heavy Duty) 1 29.9.073...
- Page 17 Roller Striker - Sectional Tube Kits 4-01 Item Part Item Part Number Number Description Number Number Description 150700 ....Tube Assy (2.1m) ....1 15.0.253 ....O Ring ........1 150701 ....Tube Assy (3.1m) ....1 129.0.214 ....Threaded Dowel ......1 150702 ....Tube Assy (4.1m) ....1 150027 ....Slide Housing ......1 150000 ....Tube Assy (2.1m) ....1 129.0.202 ....Flange Bush ......1...
- Page 18 Roller Striker - Tube Kits 4-02 1A ,1B ,1C,1D,1E ,1F ,1G,1H Item Part Number Number Description 129.0.026 Tube Assembly 26ft (7.92m) ..1 129.0.024 Tube Assembly 24ft (7.32m) ..1 129.0.022 Tube Assembly 22ft (6.71m) ..1 129.0.020 Tube Assembly 20ft (6.10m) ..1 129.0.018 Tube Assembly 18ft (5.49m) ..1 129.0.016...
- Page 19 Roller Striker - Tube Carry Handle 5-01 Item Part Number Number Description 12.0.313 Bearing ........1 129.0.050 Shaft ........1 7/10010 Screw Set M10 x 30 ....2 129.0.082 Handle WA .......1 4/1005 Washer Flat M10 Form A ..2 8/10006 Nut M10 ........2 05.8.016 Circlip........1 129.2.000...
- Page 20 129/99004 Guide Roller......1 129/99005 Roller Axle .......2 3/1018 Lynch Pin .........2 00011 Star Clip ........2 4/1001 Washer M10 ......10 7/10013 Screw M10 x 16 .......6 7/10041 Screw M10 x 40 .......4 8/10006 Nut M10 ........4 800/99859 Belle Logo Decal .....2...
- Page 21 Roller Striker - Skate 5-03 Item Part Number Number Description 129/00200 Skate Assembly .......1 129/99006 Skate Wheel Axle ....1 129/99007 Skate Wheel Spacer ....1 60/0285 Wheel ........2 129.2.000 Retaining Pin ......1 3/0081 Roll Pin 5 x 50 ......2...
- Page 22 ALTRAD BELLE Sheen, Nr. Buxton, Derbyshire, SK17 0EU, GB Tel. +44 (0)1298 84606 - Fax +44 (0)1298 84722 - Email: sales@altrad-belle.com www.Altrad-Belle.com...
