Summary of Contents for Altrad BOSS CLIMA TOWER Series

  • Page 1 LIGHT ACCESS BOSS CLIMA TOWER User Guide LW.LH/10.21...
  • Page 2 Altrad Generation Shaping The Future Of Construction & Industry. Altrad Generation is one of the largest suppliers of Scaffolding, Temporary Fencing and Access. Also supplying to multiple sectors in Groundworks, Safety, Edge Protection and within Ireland, formwork and falsework. OUR CUSTOMER PROMISE IS TO DELIVER:...
  • Page 3: Table Of Contents

    Contents Safety First Introduction ................................3 Compliances ................................3 Preparation & Inspection ............................3 Safe Use ..................................4 Lifting of Equipment ..............................4 Stabilisers/Ballast ..............................5 Movement .................................5 During Use ................................6 Ties ....................................7 Maintenance - Storage - Transport ........................7 Quantity Schedule 1450 Width Towers ............................9-12 850 Width Towers ............................13-16 Assembly Procedure Assembly and Dismantling Procedures ......................17 To Dismantle a BoSS Ladderspan Tower ......................17...
  • Page 4: Safety First

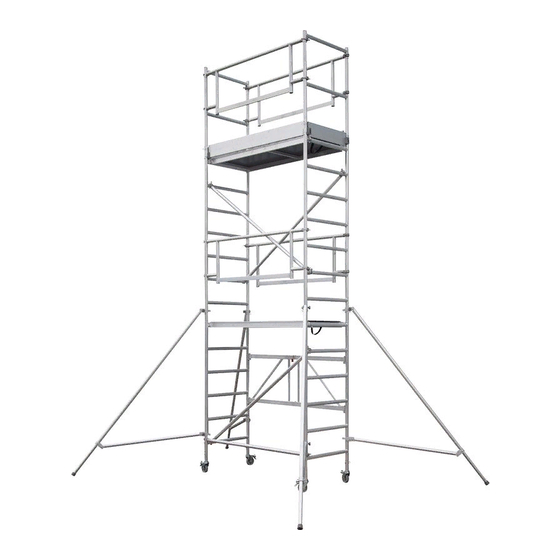

    Safety First Introduction Please read this Userguide carefully. Please note that diagrams are for illustrative purposes only. User guides are also available - please contact us for more details. BoSS mobile aluminium towers are light-weight scaffold towers used throughout the building and construction industry for both indoor and outdoor access solutions, where a stable and secure platform is required.
  • Page 5: Safe Use

    Safety First Safe Use •  Check that all components are on site, undamaged and that they are functioning correctly - (refer to Checklist and Quantity Schedules). Damaged or incorrect components should not be used. •  Check if the ground on which the mobile access tower is to be erected and moved is capable of supporting the tower.
  • Page 6: Stabilisers/Ballast

    Safety First Stabilisers / Ballast •  Stabilisers or outriggers and ballast weights should always be fitted when specified. •  The Quantity Schedules show the recommended stabilisation. In circumstances where there is restricted ground clearance for stabilisers/outriggers, contact your supplier for advice. Ballast must be made up of solid materials (i.e.
  • Page 7: During Use

    Safety First During Use •  Beware of high winds in exposed, gusty or medium breeze conditions. We recommend that in wind speeds over 7.7 metres per second (17 mph), cease working on the tower and do not attempt to move it. If the wind becomes a strong breeze (expected to reach 11.3 metres per second - 25 mph) tie the tower to a rigid structure.
  • Page 8: Ties

    Safety First Ties •  Ties should be used when the tower goes beyond its safe height, beyond the limits of the stabilisers/outriggers or if there is a danger of instability. They should be rigid, two way ties fastened to both uprights of the frame with load-bearing right angled or swivel couplers. Only couplers suitable for the 50.8mm diameter tube of the tower should be used.
  • Page 9 Safety First sales@altradgeneration.com...
  • Page 10: 1450 Width Towers

    Quantity Schedule - 1450 Width Towers www.altradgeneration.com...
  • Page 11 Quantity Schedule - 1450 Width Towers sales@altradgeneration.com...
  • Page 12 Quantity Schedule - 1450 Width Towers Number Of Working Platforms Allowed The maximum safe working load (the combined weight of the users, tools and materials) that may be placed on the tower is the total weight less than the self weight of the tower. The total weight for the towers shown in the schedule is 950kg.
  • Page 13 Quantity Schedule - 1450 Width Towers Ballast : Internal / External Use There is no requirement for ballast on 1450 towers if using stabilisers as detailed in the table on page 10. Mobile Outriggers MP16 outriggers can be used instead of SP15 stabilisers, as detailed below. Mobile outrigger kits comprise of: Mobile Outrigger Kit MP 16 Mobile Outrigger...
  • Page 14: 850 Width Towers

    Quantity Schedule - 850 Width Towers www.altradgeneration.com...
  • Page 15 Quantity Schedule - 850 Width Towers sales@altradgeneration.com...
  • Page 16 Quantity Schedule - 850 Width Towers Number Of Working Platforms Allowed The maximum safe working load (the combined weight of the users, tools and materials) that may be placed on the tower is the total weight less than the self weight of the tower. The total weight for the towers shown in the schedule is 950kg.
  • Page 17 Quantity Schedule - 850 Width Towers Ballast : Internal / External Use There is no requirement for ballast on 850 towers if using stabilisers as detailed in the table on page 14. Mobile Outriggers MP16 outriggers can be used instead of SP15 stabilisers, as detailed below. Mobile outrigger kits comprise of: Mobile Outrigger Kit MP 16 Mobile Outrigger...
  • Page 18: Assembly Procedure

    Assembly Procedure - Mobile Towers - 3T Method Assembly and Dismantling Procedures • To comply with the Work at Height Regulations we show assembly procedures with platforms every 2 metres in height, and, the locating of guardrails in advance of climbing onto a platform to reduce the risk of a fall.
  • Page 19: Checklist

    Assembly Procedure - Mobile Towers - 3T Method Assembly and Dismantling Procedures Checklist • Ensure all brace claws operate and lock correctly prior to erection • Inspect components prior to erection • Inspect tower prior to use • Tower upright and level •...
  • Page 20: Assembly For 1450 Towers

    Assembly Procedure - Mobile Towers 1450 3T Method Assembly for 1450 Towers Always start building with the smallest height frames at the base of the tower: Platform Height In Metres Frame At Base 1.7, 2.2, 3.7, 4.2, 5.7, 6.2, 7.7, 8.2, 9.7, 10.2, 11.7, 12.2 2 rung 2.7, 4.7, 6.7, 8.7, 10.7 3 rung...
  • Page 21 Assembly Procedure - Mobile Towers 1450 3T Method Assembly for 1450 Towers Fit one horizontal brace (red) onto the vertical of an end frame, just above the bottom rung, with the claw facing outwards. Note: All locking claws must be opening before fitting. Position the second end frame as shown and fit the other end of the horizontal brace onto the vertical, just above the bottom rung.
  • Page 22 Assembly Procedure - Mobile Towers 1450 3T Method Assembly for 1450 Towers Fit 2 additional end frames and check that the frame interlock clips are engaged. Fit 2 diagonal braces (blue) in opposing directions between the 2nd and the 6th rungs. Ensure the frames are vertical and level by checking with a spirit level and setting the adjustable legs as required.
  • Page 23 Assembly Procedure - Mobile Towers 1450 3T Method Assembly for 1450 Towers Fit Stabilisers Fit a temporary deck on the lowest rungs. Fit a trapdoor deck on the 8th rung (2.0m) on one side of the tower. Ensure that the trap- door is positioned with the hinges towards the outside of the tower as shown.
  • Page 24 Assembly Procedure - Mobile Towers 1450 3T Method Assembly Procedure - Mobile Towers 1450 3T Method Assembly for 1450 Towers Assembly for 1450 Towers Fit the next pair of diagonal braces in op- posing directions between the 6th and 10th rungs add 2 additional end frames.
  • Page 25 Assembly Procedure - Mobile Towers 1450 3T Method Assembly Procedure - Mobile Towers 1450 3T Method Assembly for 1450 Towers Assembly for 1450 Towers Continue to add pairs of end frames, diagonal braces and fit trapdoor decks as shown in the previous steps.
  • Page 26 Assembly Procedure - Mobile Towers 1450 3T Method Assembly for 1450 Towers Fit toeboards.The tower is now complete. Dismantling Procedure To take down the tower, reverse the building sequence. When removing guardrail braces, unlock the claws furthest from the trapdoor and then return immediately to the protected position within the trapdoor.
  • Page 27: Assembly For 850 Towers

    Assembly Procedure - Mobile Towers 850 3T Method Assembly for 850 Towers Always start building with the smallest height frames at the base of the tower: Platform Height In Metres Frame At Base 1.7, 2.2, 3.7, 4.2, 5.7, 6.2, 7.7, 8.2, 9.7, 10.2, 11.7, 12.2 4 rung 2.7, 4.7, 6.7, 8.7, 10.7 6 rung...
  • Page 28 Assembly Procedure - Mobile Towers 850 3T Method Assembly for 850 Towers Fit 2 diagonal braces (blue) in opposing directions between the 2nd and 6th rungs. Ensure the frames are vertical and level by checking with a spirit level and setting the adjustable legs as necessary.
  • Page 29 Assembly Procedure - Mobile Towers 850 3T Method Assembly for 850 Towers Fit 2 pairs of diagonal braces in opposing directions between the 6th and 10th rungs and the 10th and 14th rungs. Locate a trapdoor deck on the 12th rung. sales@altradgeneration.com...
  • Page 30 Assembly Procedure - Mobile Towers 850 3T Method Assembly for 850 Towers Climb up the inside of the tower and from the protected position of the trapdoor, fit horizontal braces as guardrails (on both sides) to the 14th and 16th rungs (2 and 4 rungs above the platform in that order).
  • Page 31 Assembly Procedure - Mobile Towers 850 3T Method Assembly for 850 Towers Fit a trapdoor deck on the 4th rung. Fix the horizontal braces (red) as guardrails on the 6th and 8th rungs (2 and 4 rungs above the platform) on both sides of the tower. 6.
  • Page 32: Toeboards - Mobile Towers 3T Method

    Toeboards - Mobile Towers 3T method Fitting Toeboards Lock yellow plastic toeboard clips over rung and deck claw as shown. Position as (A) on right hand deck claw. On other side of the working platform, position the clip as (B). Place 25mm thick toeboards into slots in toeboard clips as shown.
  • Page 33: Stabilisers And Outriggers - Mobile Towers 3T Method

    Stabilisers and Outriggers - Mobile Towers 3T method Stabilisers Attach one stabiliser to each corner of the tower as shown. Ensure stabiliser feet are equally spaced to form a square. SP10 and SP15 telescopic stabilisers must always be fully extended. Position the lower clamp so that the lower arm is as close to the horizontal as possible.
  • Page 34: Disclaimer & Copyright

    Disclaimer & Copyright Disclaimer Whilst Generation (UK) Ltd has taken every reasonable effort to ensure the information contained within this publication is correct and complete at the time of printing, you should be aware that there will be periodical changes and Generation (UK) Ltd does not accept any liability for any inconvenience, loss or damage caused as a result of any inaccuracy or omission within this publication.
  • Page 35 Notes sales@altradgeneration.com...
  • Page 36 SCOTLAND WALES Dundee Cardiff 01382 227 552 029 2046 3835 Cardiff Docks 029 2079 1188 Edinburgh (E) 0131 552 7534 Edinburgh (W) 01506 863 864 EAST ANGLIA Glasgow (E) 0141 810 8350 Kings Lynn 01553 771 465 Glasgow (S) 0141 647 6969 Norwich 01603 309 010 Salsburgh...
