Hunter PCM-1600 Installation Manual

Hunter PCM-1600 Installation Manual

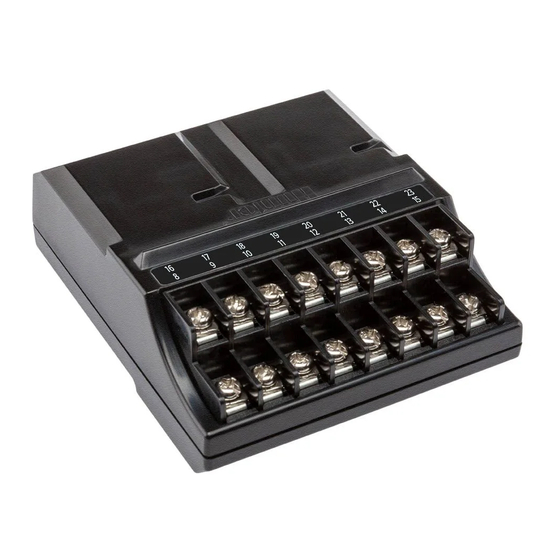

16-station expansion module

Advertisement

ENGLISH
The Pro-C controller is supplied with a base 4-station module. Additional modules may be added separately in
increments of 3 stations (PCM-300), 9 stations (PCM-900), or 16 stations (PCM-1600). In total, the system may
be expanded up to 23 stations.
NOTE: To expand your controller to 16 or 23 stations with a PCM-900 or PCM-1600, respectively, install one
PCM-300 in the first expansion slot (stations 5–7). Then install the PCM-900 or PCM-1600 in the upper two
expansion slots. These modules will not fit or operate in any other station output slot.

Installing PCM Modules

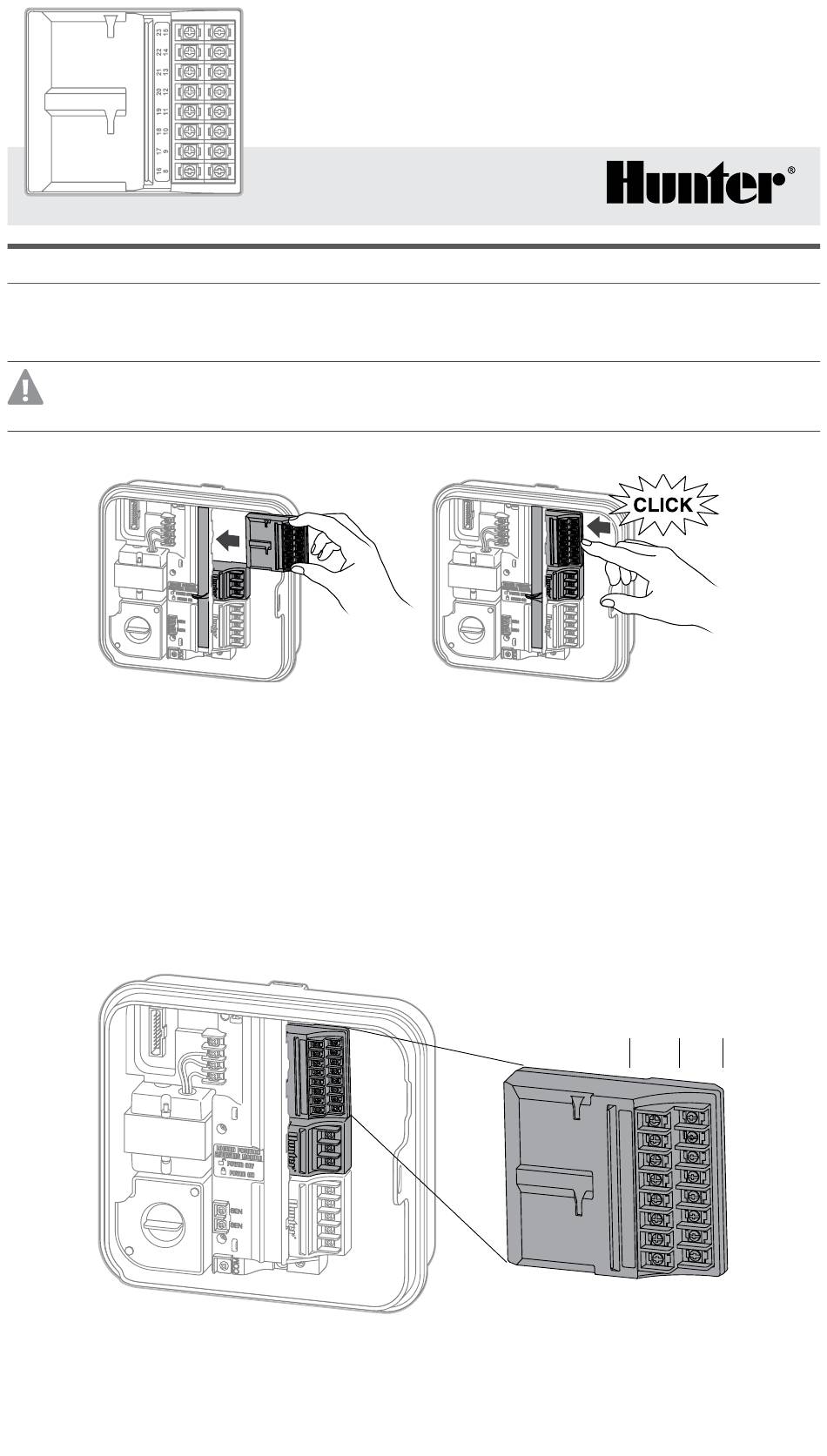

1. Slide the "Power Lock" into the "Power Off" (unlocked) position. Insert any additional station modules into
the appropriate output slots.
2. Once all modules are in place, slide the "Power Lock" into the "Power On" (locked) position to energize and
secure the modules into the controller.
3. The Pro-C will automatically recognize the correct number of stations. In some cases, it may be necessary to
press the reset button on the back of the facepack or cycle power to the controller.
PCM-1600
16-Station Expansion Module
Installation Guide for Pro-C
Controllers
®
TERMINALS
16–23
8–15
