These are the instructions for fitting the SYS-LINK Version 2 console expander option to the MixWizard
WZ
3
1442 console. Two consoles, each with SYS-LINK V2 installed, may be linked together using a single
37way cable such that one becomes a channel expander (slave) to the other (master). This links all the
mix buses and the PFL/AFL system. The WZ
supplied but may be ordered separately or sourced elsewhere. Fitting the option requires removal of the
covers to access the internal assemblies, installation of a circuit card assembly and ribbon harnesses,
and some soldering. This work should be carried out by technically competent service personnel.
For information on how to use SYS-LINK please refer to the Applications Note AP5736. For information
on using the WZ
3
1442 console refer to User Guide AP5332. Should further assistance be required,
please contact Allen & Heath Technical Support (details on our web site www.allen-heath.com).
Before Starting
Read these fitting instructions carefully before starting. For trouble free installation and operation heed all
the precautions noted. The console must be fully unplugged and removed from its rack, plinth or other
furniture before carrying out the work.
Normal workshop tools are required. These include Pozi (crosshead) and Torx (starhead) screwdrivers,
and a fine tipped soldering iron. Provide a suitably large, well lit work surface such as a service workshop
bench. To avoid damage to the cosmetics of the console ensure that the work surface is clean and clear
of obstructions. Allow enough time to carry out the work properly and test the results.
Check the Contents
WZ
3
1442 SYS-LINK Option Fitting Instructions AP5737
WZ
3
14:4:2 SYS-LINK
Fitting Instructions for the W31442-SLV2 Kit
3
1442 may be used as a slave or master. The cable is not
The following parts are packed with the kit:
003-259 x1
SYS-LINK V2 circuit assembly
with power harness. The panel fixing nuts are
fitted to the D-connector sockets.
AK0151 x3 Cable ties for securing the
harnesses.
AL5732 x1 2-connector IDC ribbon harness.
AL5731 x1 7-connector IDC ribbon harness.
AP5736 x1 SYS-LINK V2 Applications Note.
AP5737 issue 1

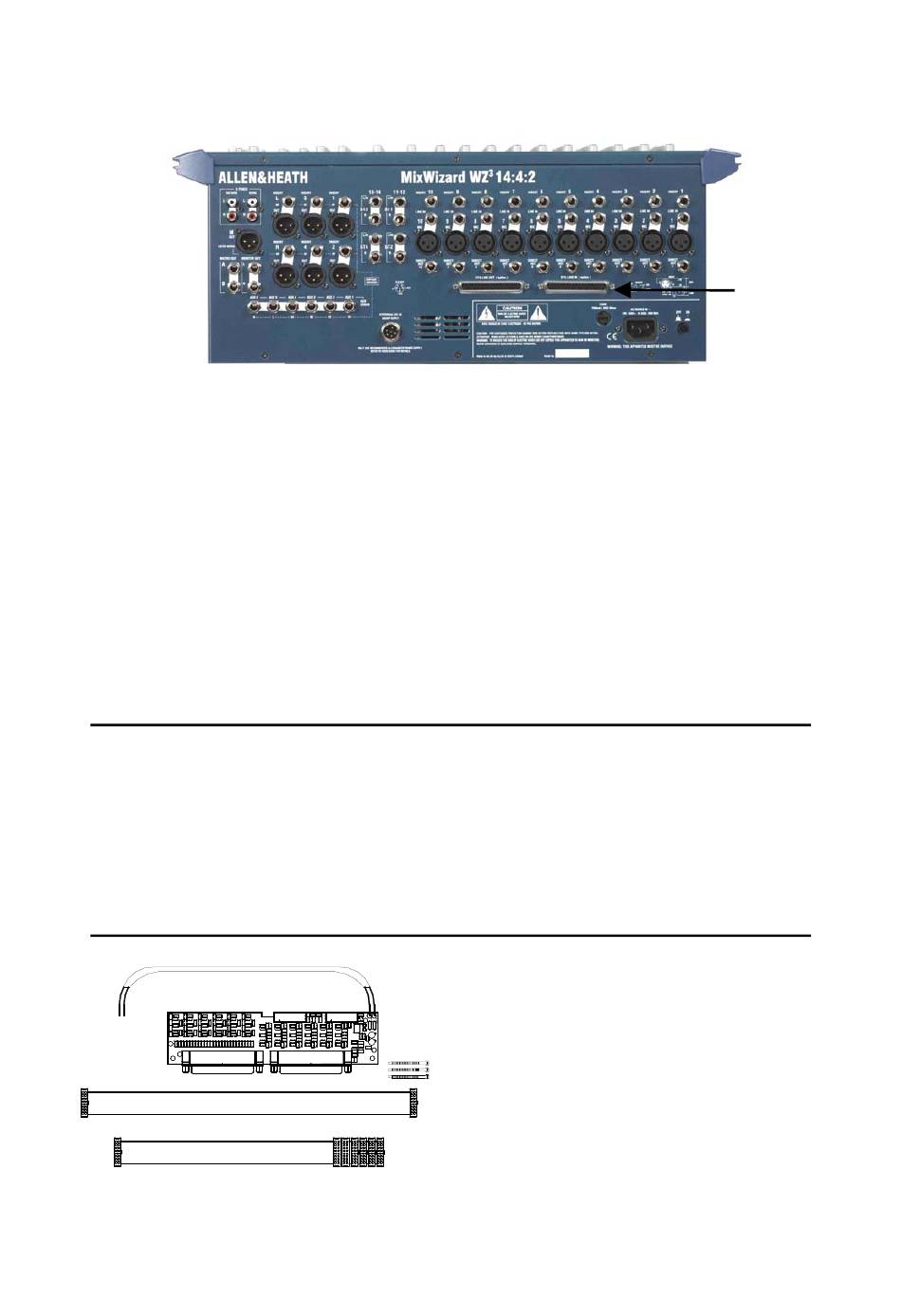

Option fits here
1
