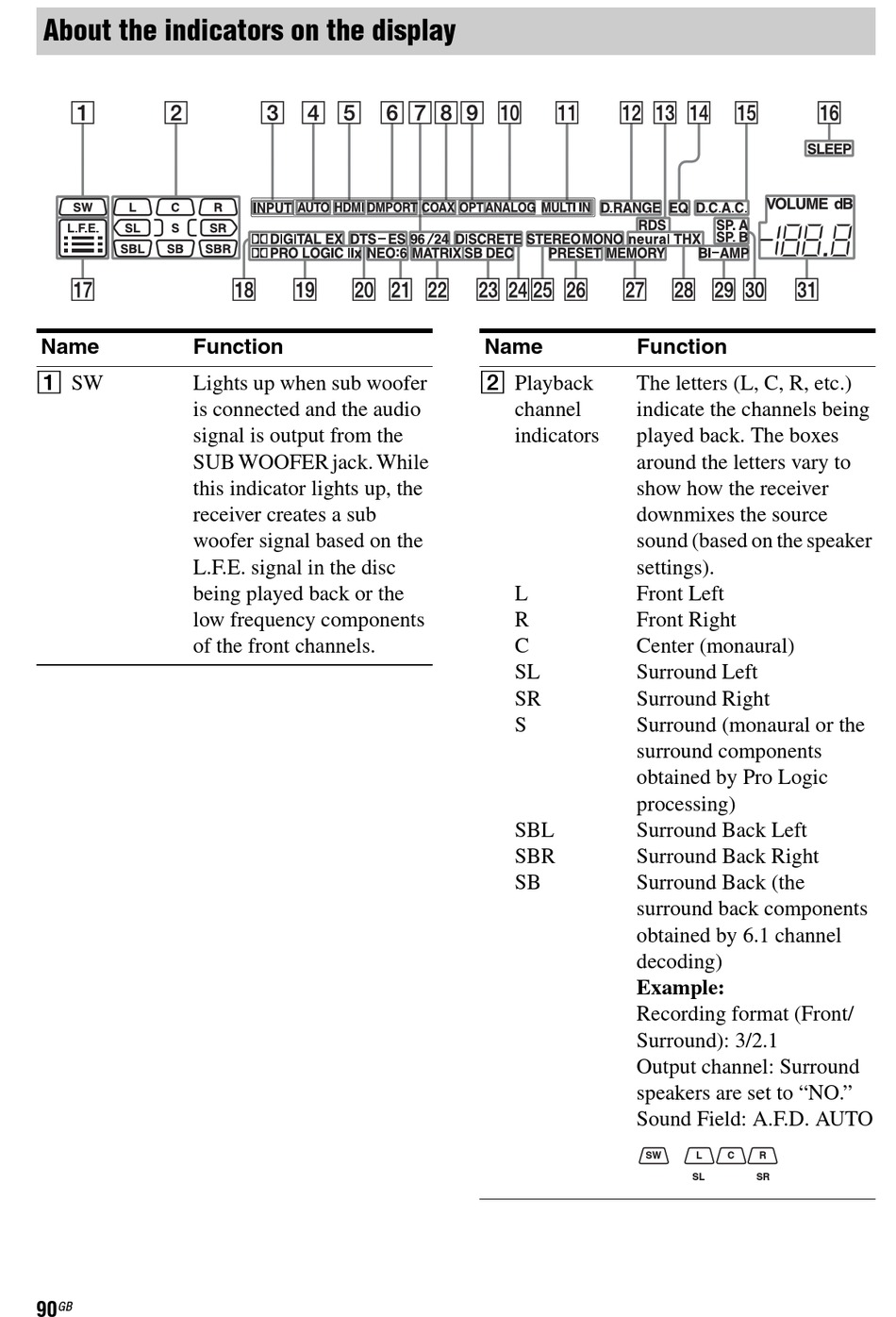

About the indicators on the display
Name
Function
A SW
Lights up when sub woofer
is connected and the audio
signal is output from the
SUB WOOFER jack. While
this indicator lights up, the
receiver creates a sub
woofer signal based on the
L.F.E. signal in the disc
being played back or the
low frequency components
of the front channels.
90
GB
Name
Function
B Playback
The letters (L, C, R, etc.)
channel
indicate the channels being
indicators
played back. The boxes
around the letters vary to
show how the receiver
downmixes the source
sound (based on the speaker
settings).
L
Front Left
R
Front Right
C
Center (monaural)
SL
Surround Left
SR
Surround Right
S
Surround (monaural or the
surround components
obtained by Pro Logic
processing)
SBL
Surround Back Left
SBR
Surround Back Right
SB
Surround Back (the
surround back components
obtained by 6.1 channel
decoding)
Example:
Recording format (Front/
Surround): 3/2.1
Output channel: Surround
speakers are set to "NO."
Sound Field: A.F.D. AUTO
SW
L
C
R
SL
SR
