3.3. POWER OUTPUTS
The equipment has an output and phase channels. In each one of them can be
selected the desired output level as well as the phase angle.
This section is situated in the central section of the unit, and is clearly identified.
All the controls, indicators, etc. contained in this part of the unit will be
explained .
3.3.1. OUTPUT SECTION

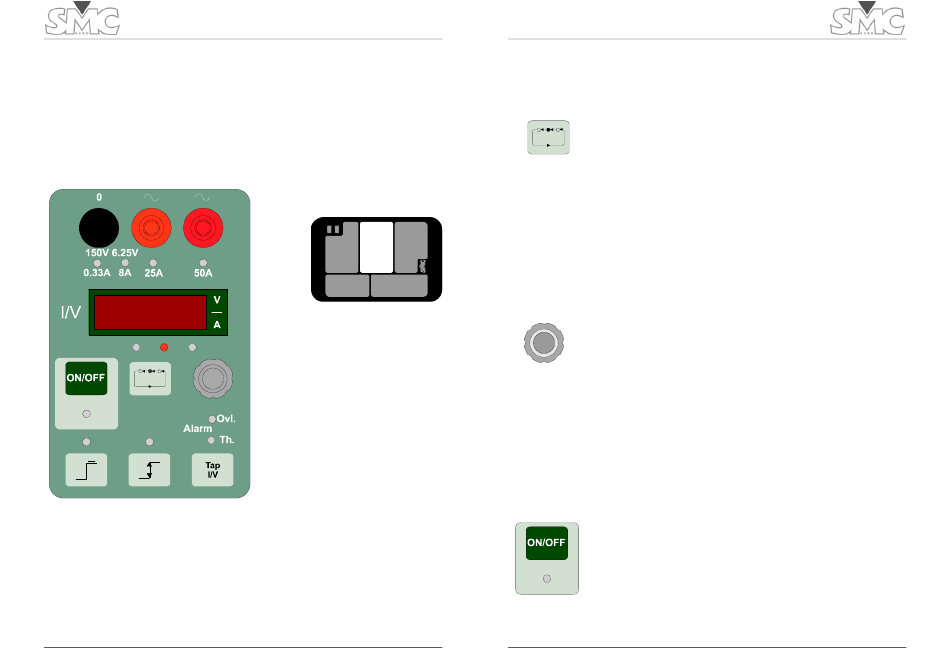

Figure 6: Selection of the OUTPUTS
Operation Manual
PTE-50-CE Pro
When pressing this key for more than 2 seconds, it will block the rotating pulse
generator, not allowing any modifications to the level selected
b) Rotating Control Knob
However if the control knob is turned very fast the value will change at a
maximum rate of 1 digit per second.
c) Output Selection ON/OFF
23
24
CONTROL KNOBS AND PRESS KEYS
o
a) Selecting the digit to be used.
This key works in a sequential way and it is associated with 3
LEDs located above this press key. This allows the operator
to select the output in a fine or course regulation, by
changing the digit to be adjusted.
The following resolutions can be obtained:
1 digit.
o
10 digits.
o
100 digits.
o
This is a rotating pulse generator and has step by step
sensation. The values can be increased or decreased by
turning this control knob clockwise or anti-c clockwise
one digit per step, according to the selected digit weight as
described previously. This knob has no end and can be
controlled at any speed. However if the control knob is
turned very fast the value will change at a maximum rate of
1 digit per second.
When this key is pressed the output will turn on and the LED
situated below will light up.
When it is pressed again it will disconnect this output and
the LED will be off.
by
