Summary of Contents for ALLEN & HEATH Xone:DB

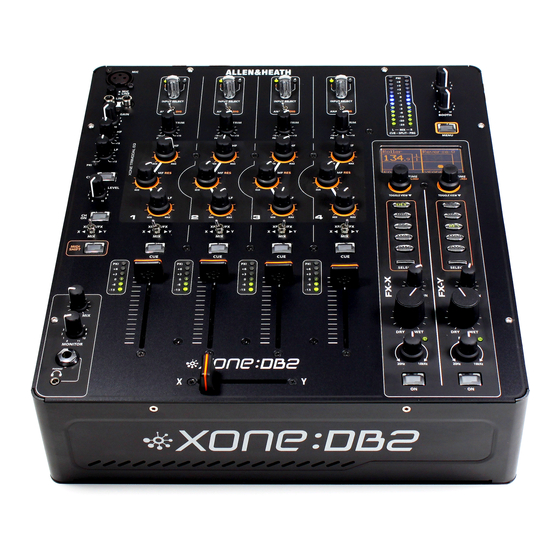

- Page 1 QUICK - START GUIDE ALLEN & HEATH XONE:DB2...
- Page 2 Installation and Setup To activate Serato DJ with the Allen & Heath XONE:DB2 it requires a Serato DJ license to be purchased and activated on your user account. The XONE:DB2: DB2 also requires the DVS Expansion Pack to be purchased and activated before unit can be used with NoiseMap™...
- Page 3 MIXER MAIN MIX OUT RECORD OUTB OOTH OUT ANALOGUE IN LEFT RIGHT DIGITAL IN 11 10 XONE:DB2 Control Function AC POWER IN Connect a power cable to your mixer ON/OFF Turn the mixer On/Off MAIN MIX OUT Connect balanced XLR cables to the main mix out RECORD OUT Connect RCA cables to the record out BOOTH OUT...
- Page 4 XONE:DB2 Function HEADPHONE SECTION Headphone output and controls MIDI SHIFT Used in conjunction with XONE:DB2 midi controls MIC SECTION Microphone input and controls INPUT SELECT Select channel input source CHANNEL CONTROLS Control and monitor channel volume and EQ controls OUTPUT METER Displays output volume Control Mix output volume BOOTH...
- Page 5 DVS Control Select Primary Decks To use the Allen & Heath XONE:DB2 mixer with DVS control and Serato DJ, you will first need to own a Serato DJ license and a DVS Expansion Pack Open the SETUP screen and click the AUDIO tab, here you will need to license (these two products have been bundled together as the Club Kit).
- Page 6 MIDI Recording The MIDI feature in Serato DJ provides the ability to remap Serato DJ To record your mixes with Serato DJ and the XONE:DB2 you will need to set software functions to your primary Serato DJ controller, interface or mixer. up the mixer for recording.
