- Page 1 ALLEN&HEATH Technical document ZED 10 / ZED10FX Retrospective FX MUTE Footswitch Modification Copyright © 2011 Allen & Heath Limited. All rights reserved Allen & Heath Limited Kernick Industrial Estate, Penryn, Cornwall, TR10 9LU, UK ALLEN&HEATH Issue 1...

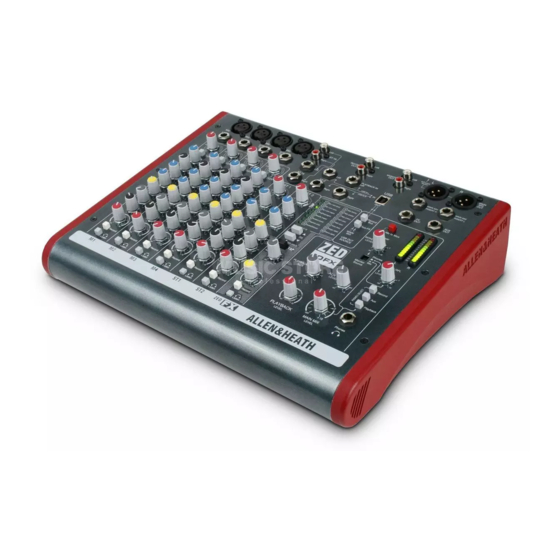

- Page 2 Addition of effects footswitch to ZED 10FX With this modification: Connecting a footswitch to the FX OUT jack will mute the effects signal when the switch is closed. The FX OUT jack can still be used as a pre effects feed as before. Instructions for modification Remove 6 crosshead front panel screws plus 3 underside and 3 rear panel torx screws Lift front panel up from back and slide out forwards CAUTION: Do not stress connecting wire...
- Page 3 Remove knobs, nuts and torx screws from USB + Master channels. Unplug bus wire and remove both PCBs On USB PCB replace C23 with a 470R 1/4w through hole resistor (See below) ALLEN&HEATH Issue 1...
- Page 4 On Master PCB replace R1 with a 0R 0805 SMT resistor (or wire link). To assemble reverse above procedure. ALLEN&HEATH Issue 1...
