ASSEMBLY INSTRUCTIONS
Litewall Evolve
Workstation 4 Person
Size: 1200mm

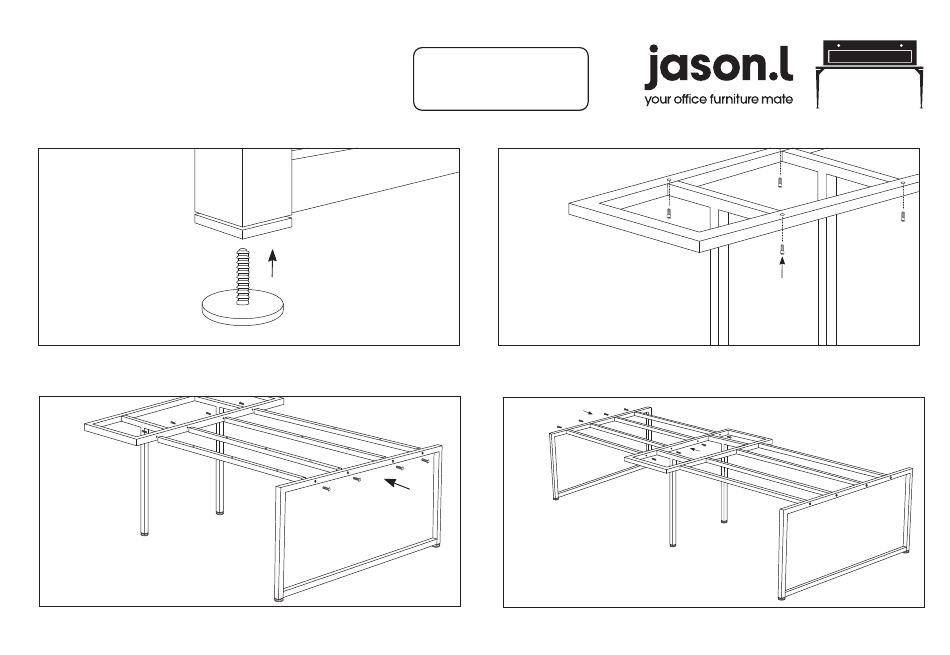

01
Screw the feet to each leg and T leg.
03
Attach 4x 800mm beams to 1625mm leg using M8x25mm dome head screw.
Attach connector frame from diagram 2 to 4 beams using M8x25mm dome
head screws.
www.jasonl.com.au
Need help!
Call us on
1300 527 665
02
Assemble connector frames. Attach the 2 T legs to the double connector frame
using M6x35mm hex scews x4.
04
Attach the remaining 4x 800mm beams to the connector frame using M8x25mm
dome head screw.
Page 3 of 4
