World Market 543575 Assembly Instructions

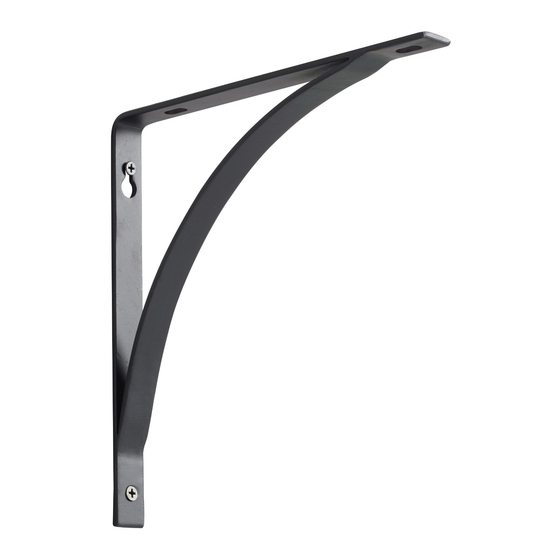

Shelf bracket arched black large

SHELF BRACKET ARCHED BLACK LARGE

SKU - 543575

THANK YOU FOR YOUR PURCHASE. IF YOU HAVE ANY QUESTION PERTAINING

TO ASSEMBLY OF THIS PRODUCT, PLEASE CONTACT THE

NEAREST COST PLUS WORLD MARKET STORE. IF YOU ARE NOT NEAR A STORE,

PLEASE CALL OUR CUSTOMER SERVICE CALL CENTER

TOLL FREE AT 877-967-5362 FOR ASSISTACE.

Table of Contents

Need help?

Do you have a question about the 543575 and is the answer not in the manual?

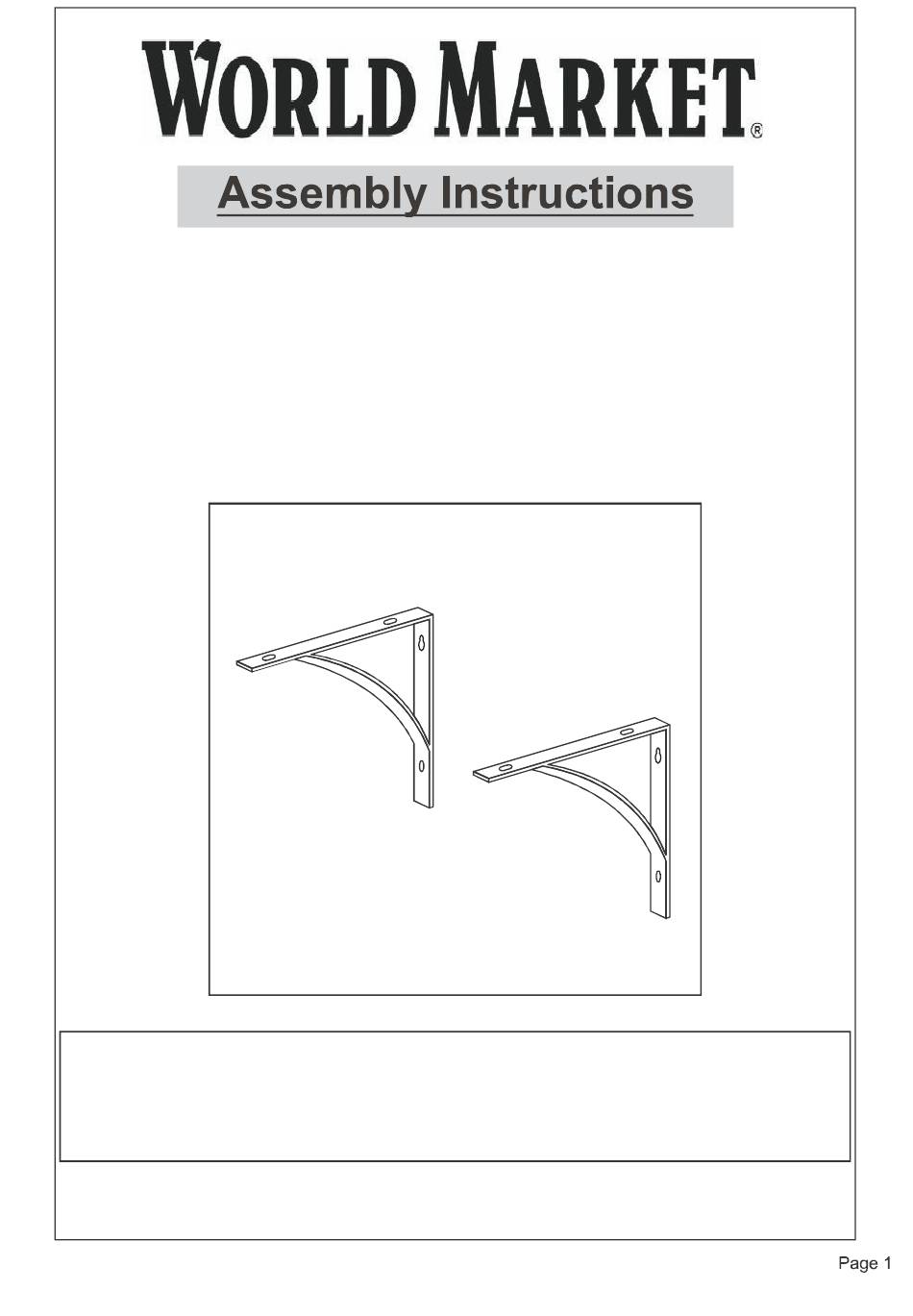

Page 1 THANK YOU FOR YOUR PURCHASE. IF YOU HAVE ANY QUESTION PERTAINING TO ASSEMBLY OF THIS PRODUCT, PLEASE CONTACT THE NEAREST COST PLUS WORLD MARKET STORE. IF YOU ARE NOT NEAR A STORE, PLEASE CALL OUR CUSTOMER SERVICE CALL CENTER TOLL FREE AT 877-967-5362 FOR ASSISTACE.
Page 2 Parts List Label Picture Description Bracket Hardware List Wall Plugs (L 42mm x 10mm) Screws (L 32mm x 4mm) Allen Bolt (L 17mm x 6mm) Tool List Allen Key (Drill Bit -10mm) Screw Driver Page 2...
Page 3 Assembly Steps Step-1 Place shelf on a non-marring padded surface. Align bracket (A) end with oval holes over shelf as shown above in the image. Insert allen bolt (H-3) in the holes and secure with allen key (T-1). Repeat the process to secure other bracket (A).
Page 4 Insert screws (H-2) at lower ends and fully tighten connections with screw driver (T-3). Assembled view Note - Bracket set is meant to be used with World Market shelves sold separately. Maximum Load - 28 lbs Page 4...
