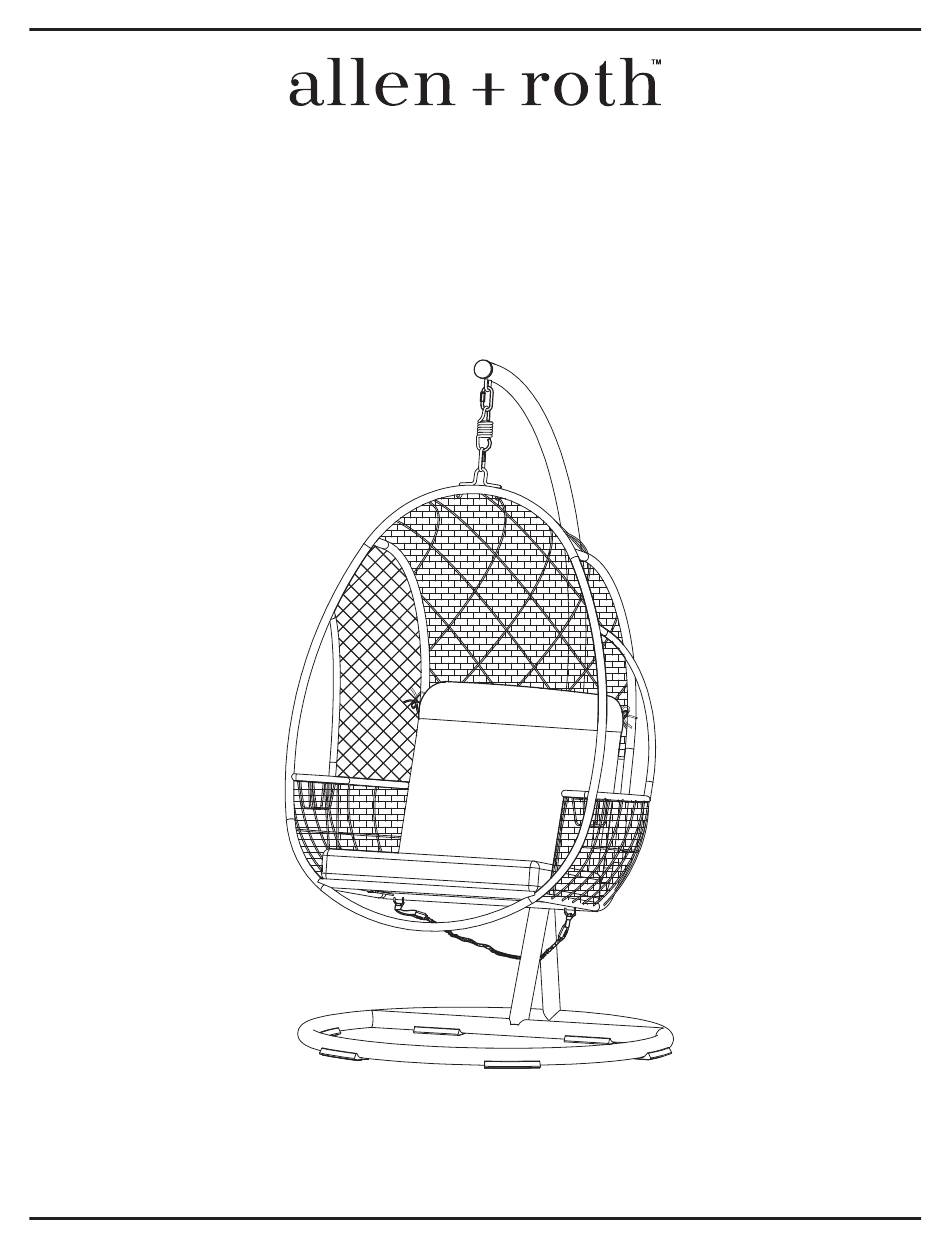

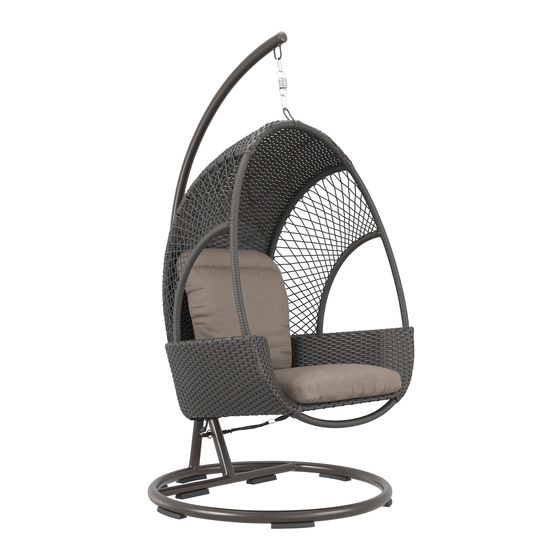

- Page 1 Assembly Manual Brown/Gray Egg Chair With Cup Holder Model Number: GCS09084E/GCS09084EA Item Number: 2809212/2809213 THIS ASSEMBLY MANUAL CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
-
Page 2: Important Safety Information
Important Safety Information Please read all instructions carefully before assembling this furniture. For your safety, assembly by two or more adults is strongly recommended. Use only vendor-supplied hardware to assemble this item. Using unauthorized hardware could jeopardize the structural integrity of the item. Hardware may loosen overtime. -
Page 3: Before Assembly
Before Assembly Remove all parts and hardware from the box. Place all items on a carpeted or scratch-free work surface, as this will avoid damaging parts during assembly. The shipping box provides an ideal work surface. To avoid accidentally discarding small parts or hardware, do not dispose of any packaging or contents of the shipping carton until assembly is complete. - Page 4 Components ..Base ........Pole Stand ......... Chair Frame with ....Bungee attached Seat back cushion ....Hardware (AA) (BB) (CC) M8 Washer M8 Nut M8X60 Bolt Qty:2 Qty:2 Qty:2 (DD) (EE) (FF) Spring with M8 Nut Cap Hex Wrench Carabiners Qty:2...
- Page 5 Step 1 (AA) (BB) (CC) M8X60 Bolt M8 Washer M8 Nut Qty: 2 Qty: 2 Qty: 2 (GG) (DD) (FF) Wrench M8 Nut Cap Hex Wrench Qty: 1 Qty: 2 Qty: 1 Slide the Pole Stand (B) into the Base (A). Align and insert M8x60 Bolt (AA) into the corresponding holes.
- Page 6 Step 2 (EE) Spring with Carabiners Qty: 1 Fig.2A Fig.2B Fig.2C Open the locking carabiners by turning the locking bolt. See Fig.2A. Hang the Spring (EE) to the pole stand (B) using the carabiner, while attaching the opposite end to the loop on the chair frame (C) as shown in Fig.2B. Close and lock both top and bottom carabiner as shown in Fig.2C.
- Page 7 STEP 3 Make sure you fully tighten the carabiners. You can use the wrench to tighten the lock. STEP 4 Open either carabiner on the bottom of the frame and place it through the ring on the base as shown. If you have any questions or problems, please call our customer service department at 1-866-439-9800, 8 a.m.
- Page 8 STEP 5 Fig.5B Fig.5A Re-attach carabiner to strap and lock securely by hand. STEP 6 Place cushion onto seat and attach it to the frame. If you have any questions or problems, please call our customer service department at 1-866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Sunday.
- Page 9 NOTICE: Make sure the seat is facing forward in the correct position as shown before use. NOTICE: Do Not allow the chair to swing outside of the base area. If you have any questions or problems, please call our customer service department at 1-866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Sunday.
