VUEPOINT FPM55 Assembly Instructions page 4

Step 3: Mounting the Wall Plate - wood stud, solid concrete and concrete block mounting options are provided
Wood Stud Installation:
CAUTION: Do not over tighten the Lag Bolts. Tighten Lag Bolts (D) only until the Lag Bolt Washer (E) is pulled firmly against the Wall Plate
(A). If there is a layer of drywall or other material, this drywall or other material may not exceed 5/8 inch [15.8 mm] in thickness. Failure to heed
this caution may result property damage and/or personal injury
.
Use the Wall Plate as a template mark a location on the wall, one in the top row of slots and the other in the corresponding slot in the
bottom row. Pre-drill a 2.5" deep hole into the wood stud by using a 3/16" drill bit, making sure wall the Wall Plate is oriented to the flat
surface is against the wall. Attach the Wall Plate to the wall using two Lag Bolts (D) and two Lag Bolt Washers (E). See Diagram 3A for
assistance.
Solid concrete and concrete block installation:
Use the Wall Plate (A) as a template to mark three (3) locations on the wall. Two in the top row of slots and one more centered in the
bottom row.
CAUTION: Always locate Concrete Anchors (F) in the block or concrete. Never drill into the mortar between blocks. Make
sure the Concrete Anchor is seated flush with the concrete surface even if there is a layer of drywall or other material. This
drywall or other material may not exceed 5/8 inch [15.8 mm] in thickness. Failure to heed this caution may result property
damage and/or personal injury.
Carefully pre-drill a 2.5" deep hole with a 1/2" masonry drill bit. Insert a Concrete Anchor (F) into each pre-drilled hole so it is flush with
the concrete surface; then, attach the Wall Plate (A) to the wall using three Lag Bolts (D) and three Lag Bolt Washers (E). See Diagram
3B for assistance.
E
D
Step 4: Attach Monitor to Wall Plate
CAUTION: Some televisions may require two people to lift. CSAV is not responsible for personal injury or product damage.
Rotate the Latch Handle into its most open position and hang the hooks of the Left and Right Monitor Brackets (B,C) over the tab on
the top of the Wall Plate (A) as shown in Diagram 4A.
Once the Monitor Brackets (B,C) are attached to the Wall Plate, rotate the Latch Handles on each Monitor Bracket until they click into
place. The tip of the Latch Handle should now be tucked up behind the tab on the bottom of the Wall Plate as shown in the detailed
view of Diagram 4B.
Diagram 4A
CSAV, Inc. and its affiliated corporations and subsidiaries (collectively, "CSAV"), intend to make this manual accurate and complete. However, CSAV makes no claim that the information contained herein
covers all details, conditions, or variations. Nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to
change without notice or obligation of any kind. CSAV makes no representation of warranty, expressed or implied, regarding the information contained herein. CSAV assumes no responsibility for accuracy,
completeness or sufficiency of the information contained in this document.

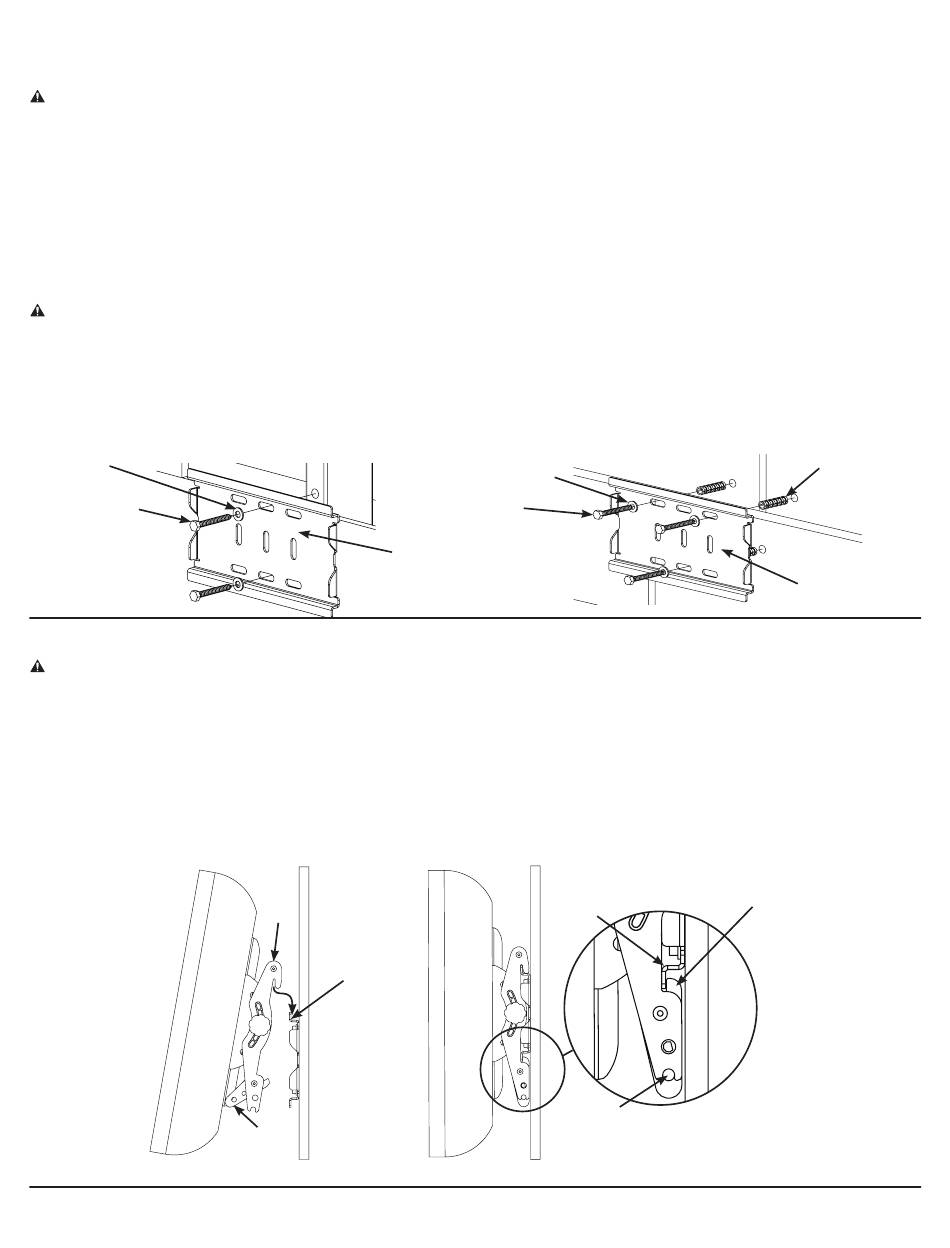

Diagram 3A
