VUEPOINT FPM55 Assembly Instructions page 3

Step 2: Mount Monitor Brackets to a television with a curved back or an obstruction near the threaded insert
Determine the diameter of the Bolt (J,K,L) your TV requires by hand threading them into the threaded insert on the back of the TV. If
you encounter any resistance stop immediately.

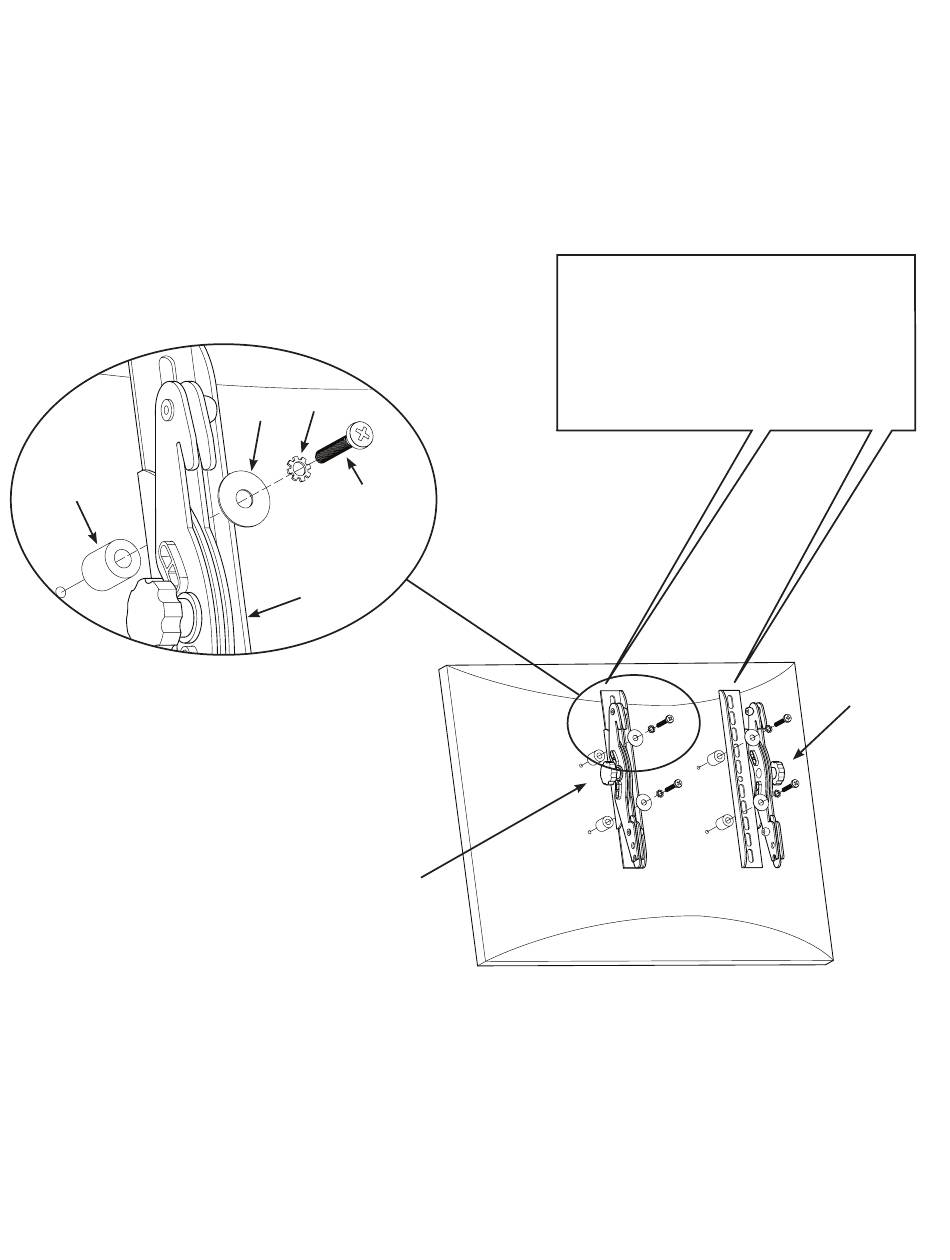

Once you have determined the correct diameter, see the appropriate Diagram below, thread the Bolt through the appropriate Lock
Washer (M,N,O), the corresponding Washer (P,Q), the Monitor Bracket (B,C), a Spacer (R,S), and finally into the TV.
Make sure the Monitor Brackets are vertically centered and level with each other. See the appropriate Diagram below.
Tighten the Bolts (J,K,L) securing the Monitor Brackets (B,C) to the monitor.
R,S
Diagram 2
M,N,O
P,Q
J,K,L
B,C
Tension
Knob
NOTE: If the horizontal distance between
the threaded inserts on the back of the
television is greater than 8-1/8 inches [206
mm] but less than 11-1/8 inches [282.5 mm],
the locations of the Monitor Brackets (B &
C) may be reversed from right to left. If the
Monitor Brackets are reversed, the Tension
Knobs must be removed and reinstalled so
that they are still facing out.
Tension
Knob
