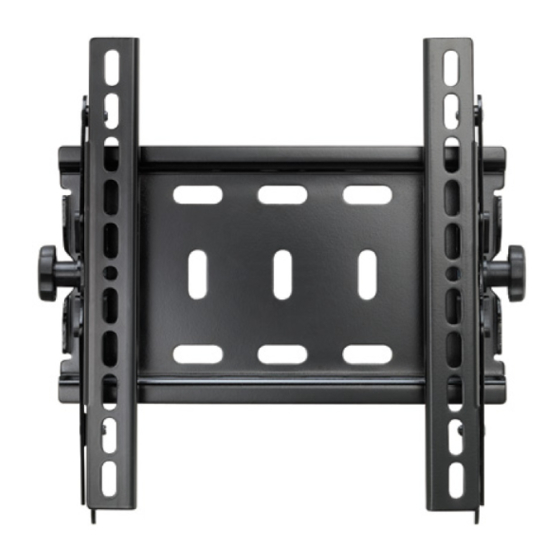

Thank you for choosing a VUEPOINT™ wall mount. The FPM55 is designed to mount up to 55 inch LCD TVs weighing less than 80 lbs (36.3
Kg) to a vertical wall. It will allow you to effortlessly tilt the TV ±20°
CAUTION: The size and weight of your television must not exceed 55 inches (140 cm) diagonally and 80 Lbs (36.3 Kg). The
wall must be capable of suporting five times the weight of the television plus the wall mount. Never use defective parts. Improper
installation may cause property damage or personal injury. Do not use this product for any purpose that is not explicitly
specified by CSAV.
If you do not understand these directions, or have any doubts about the safety of the installation, please call a qualified contractor or
contact CSAV at 1-888-333-1376 or www.vuepointav.com. Our customer service representatives can quickly assist you with installation
questions and missing or damaged parts. Replacement parts for products purchased through authorized dealers will be shipped directly
to you. Check carefully to make sure that there are no missing or defective parts. CSAV can not be liable for damage or injury caused by
incorrect mounting, incorrect assembly, or incorrect use. Please call CSAV before returning products to the point of purchase
NOTE: The supplied wall mounting hardware is not for metal stud or old cinder block walls. If you are uncertain about the
nature of your wall, consult an installation contractor. CSAV makes every effort to assure all necessary television mounting
hardware is included. If the hardware you need is not included please consult your local hardware store or call CSAV.
Required Tools: Drill, 3/16" drill bit, (1/2" masonry bit for concrete, or concrete block installations), wrench set, phillips screw driver

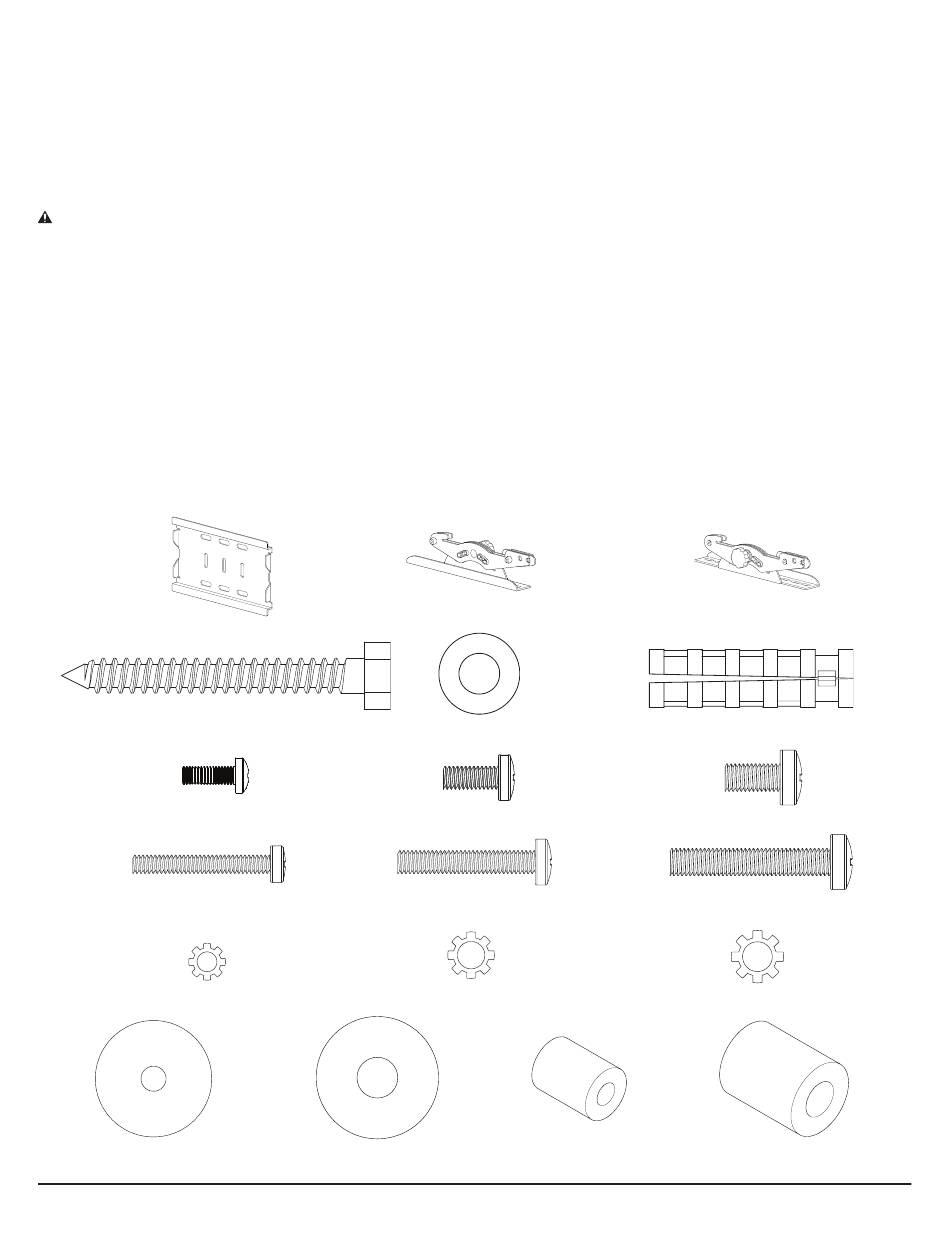

Supplied Parts and Hardware: (All threaded fasteners are shown full size.)
Wall Plate - A
Qty. 1
Lag Bolt - D
Qty. 3
M4 x 12mm
M4 x 12 mm Bolt - G
Qty. 4
M4 x 30mm
M4 x 30 mm Bolt - J
Qty. 4
M4 Lock Washer - M
M4
Qty. 4
M4 / M5
M4/M5 Washer - P
Qty. 4
Customer Service: 1-888-333-1376. See complementary products at www.vuepointav.com
VUEPOINT™
Assembly Instructions for Model: FPM55
Left Monitor Bracket - B
M6 / M8
M6 Washer - Q
Qty. 4
CSAV 2221 Hwy 36 West, Saint Paul, MN 55113 (6902-100024 <01>)
Qty. 1
Lag Bolt Washer - E
5/16 in.
Qty. 3
M5 x 12mm
M5 x 12 mm Bolt - H
Qty. 4
M5 x 30mm
M5 x 30 mm Bolt - K
Qty. 4
M5
M5 Lock Washer - N
Qty. 4
M4 / M5
M4/M5 Spacer - R
Qty. 4
Right Monitor Bracket - C
Qty. 1
Concrete Anchor - F
Qty. 3
M6 x 12mm
M6 x 12 mm Bolt - I
Qty. 4
M6 x 35mm
M6 x 35 mm Bolt - L
Qty. 4
M6 Lock Washer - O
M6
Qty. 4
M6 / M8
M6 Spacer - S
Qty. 4
Advertisement
Related Manuals for VUEPOINT FPM55
Summary of Contents for VUEPOINT FPM55
- Page 1 Assembly Instructions for Model: FPM55 Thank you for choosing a VUEPOINT™ wall mount. The FPM55 is designed to mount up to 55 inch LCD TVs weighing less than 80 lbs (36.3 Kg) to a vertical wall. It will allow you to effortlessly tilt the TV ±20°...
- Page 2 Step 1: Mount Monitor Brackets to a television with a flat back NOTE: For televisions with a curved back, or an obstruction near the threaded insert see Step 2. Determine the diameter of the Bolt (G,H,I) your TV requires by hand threading them into the threaded insert on the back of the TV. If you encounter any resistance stop immediately.
- Page 3 Step 2: Mount Monitor Brackets to a television with a curved back or an obstruction near the threaded insert Determine the diameter of the Bolt (J,K,L) your TV requires by hand threading them into the threaded insert on the back of the TV. If you encounter any resistance stop immediately.
- Page 4 Step 3: Mounting the Wall Plate - wood stud, solid concrete and concrete block mounting options are provided Wood Stud Installation: CAUTION: Do not over tighten the Lag Bolts. Tighten Lag Bolts (D) only until the Lag Bolt Washer (E) is pulled firmly against the Wall Plate (A).
