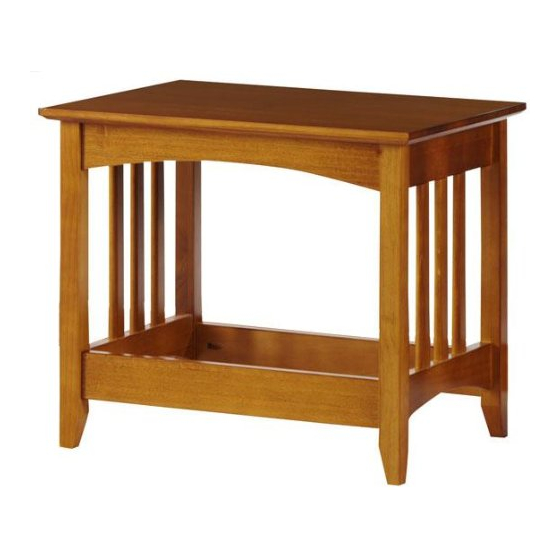

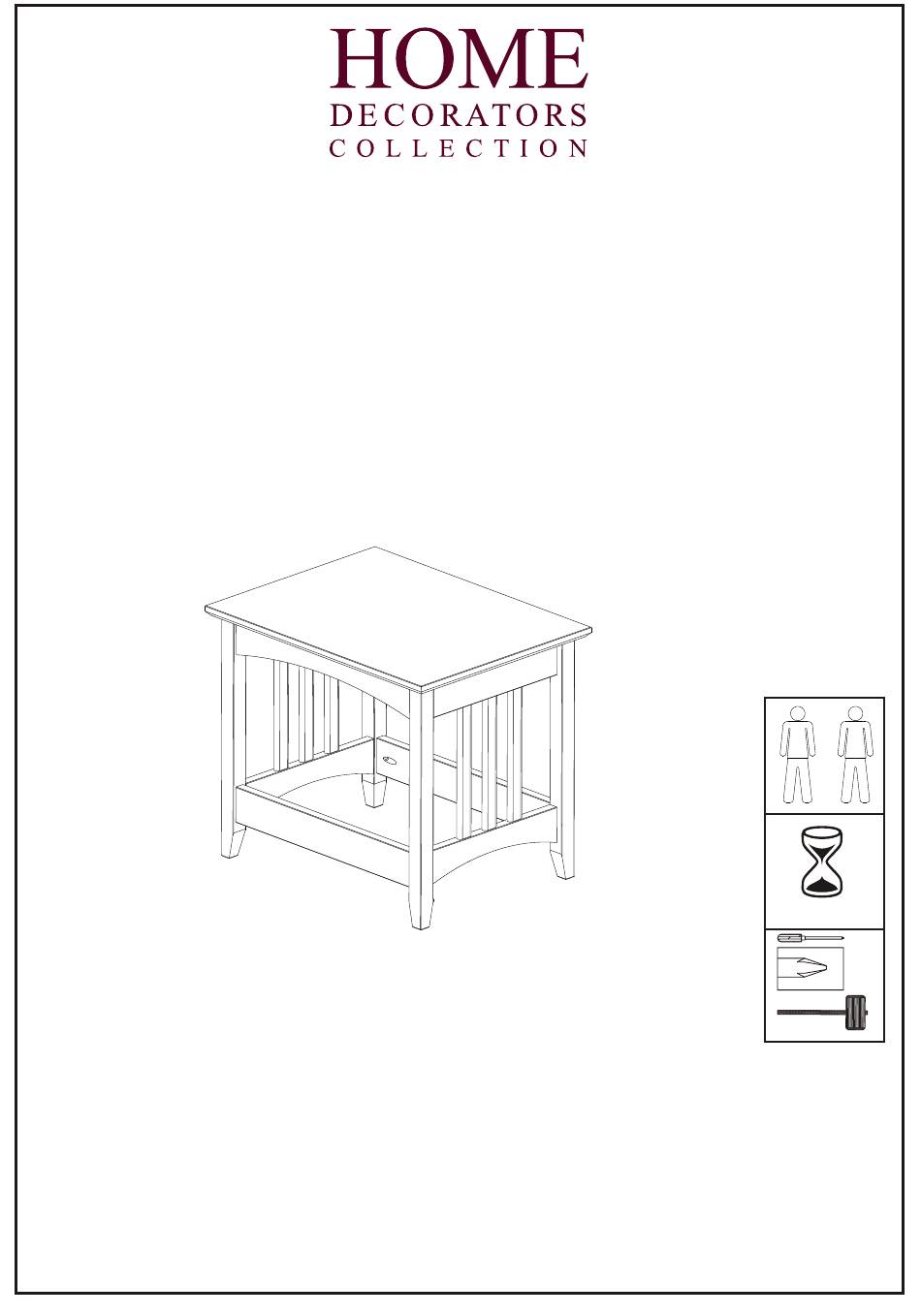

HAWTHORNE SLATTED BENCH
18"H x 21"W
SKU # 0895500130 – DARK CHERRY
SKU # 0895500560 – OAK
SKU # 0895500410 – WHITE
SKU # 0895500210 – BLACK
15 Min.
BEFORE BEGINNING ASSEMBLY, CHECK TO MAKE SURE ALL
PARTS AND HARDWARE ARE ACCOUNTED FOR.
IT IS SUGGESTED THAT YOU SAVE THE CARTON AND PACKING
MATERIAL UNTIL AFTER ASSEMBLY IS COMPLETED. SELECT A CLEAN,
SMOOTH SURFACE TO WORK (SUCH AS CARPET).
THEN, FOLLOW THE EASY STEPS BELOW.
IF PARTS ARE MISSING, PLEASE CALL 1-800-998-7021 FOR INFORMATION.
MADE IN BRAZIL
16 02 04 12
Advertisement
Table of Contents
Related Manuals for Home Decorators Collection HAWTHORNE 0895500130
Summary of Contents for Home Decorators Collection HAWTHORNE 0895500130
- Page 1 HAWTHORNE SLATTED BENCH 18”H x 21”W SKU # 0895500130 – DARK CHERRY SKU # 0895500560 – OAK SKU # 0895500410 – WHITE SKU # 0895500210 – BLACK 15 Min. BEFORE BEGINNING ASSEMBLY, CHECK TO MAKE SURE ALL PARTS AND HARDWARE ARE ACCOUNTED FOR. IT IS SUGGESTED THAT YOU SAVE THE CARTON AND PACKING MATERIAL UNTIL AFTER ASSEMBLY IS COMPLETED.
- Page 2 PART # QTY DESCRIPTION SIZES (w x d x h) 21” x 16” x 3/4” SIDE x 14 1/3” 3/8” 1/4” BOTTOM CROSS SUPPORT 17” x 2 x 3/4” 1/2” UPPER CROSS SUPPORT 17” x 2 x 3/4” 1/2” 8x30mm (1 1/4") 4,0x30mm (1 1/4") 4,0x35 (1 3/8")
- Page 3 Insert wooden dowels (A) into the pre drilled holes in the tops of each side (2) S T E P 1 and into both upper cross support (4) and lower cross support (3). Insert the upper(4) and lower (3) cross supports into the (2) sides of the bench S T E P 2 as shown in the diagram.
- Page 4 Place top (1) upside down on a soft surface. Turn the bench legs upside down and S T E P 3 align the wooden dowels into the predrilled holes of the bench top. Secure the top to the legs using the pocket screws (B). Turn bench over when assembly completed.
