HCD#: 13256
ASSEMBLY INSTRUCTION

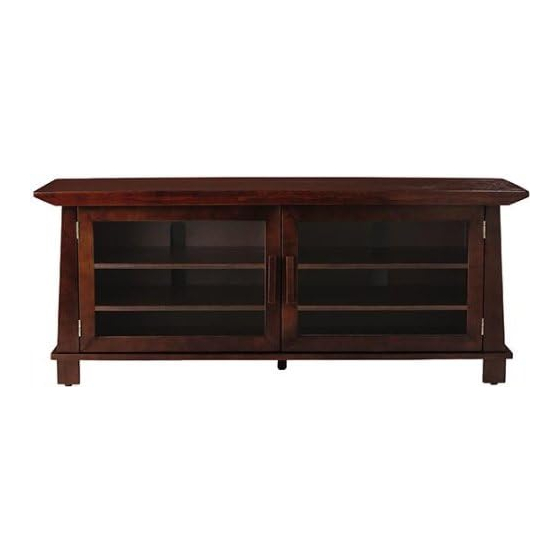

Tong TV Stand 2 Door
LIST OF PARTS
PART
DESCRIPTION
A1
Table Top
A2
Left Side Panel
A3
Right Side Panel
A4
Bottom Shelf
A5
Back Panel
A6
Middle Panel
A7
Shelves
A8
Door
A9
Feets
A10
Middle Foot
A11
Handle
A12
Back Brace
LIST OF HARDWARE
PART
DESCRIPTION
B1
Screw JCB M6 x 30 mm.
B2
Screw F6 x 5/8"
B3
Screw P6+ M4 x 25 mm.
B4
Pin Support
B5
Metal Plate
B6
Screw F6 x 1 1/4"
B7
Allen Key
- PAGE 1 OF 3 -
MFG#. 015-5X
Q'TY
1
1
1
1
2
1
4
2
4
1
2
1
Q'TY
16
10
4
16
2
2
1
B4
A2
A4
A6
A8
A10
A11
B1
B2
B5
B6
A1
A3
A5
A7
A9
A12
B3
B7
Advertisement
Table of Contents
Related Manuals for Home Decorators Collection 13256
Summary of Contents for Home Decorators Collection 13256
- Page 1 - PAGE 1 OF 3 - HCD#: 13256 MFG#. 015-5X ASSEMBLY INSTRUCTION Tong TV Stand 2 Door LIST OF PARTS PART DESCRIPTION Q'TY Table Top Left Side Panel Right Side Panel Bottom Shelf Back Panel Middle Panel Shelves Door Feets...
- Page 2 - PAGE 2 OF 3 - STEP 1 Attach 4 Feet (A9) and Middle Foot (A10) under the Bottom Shelf (A4) Using 4 Screws JCB M6 x 30 mm. (B1) as per Diag.1. Diagram 1. STEP 2 Attach Left Side Panel(A2), Right Side Panel (A3) and Middle Panel (A6) onto the Bottom Shelf (A4) Using 6 Screws JCB M6 x 30 mm.
- Page 3 - PAGE 3 OF 3 - STEP 5 - Attach Handle (A11) to the Glass Door Using Screw P6+ M4 x 25 mm. (B3) Attach both glass doors into the Left Panel (A2) and Right Panel (A3) Using 8 Screws F6 x 5/8” (B2) as per Diag.5. 2 Set Diagram 5.
