Item #0000 000 000
Model # FRS50095-ST
USE AND CARE GUIDE

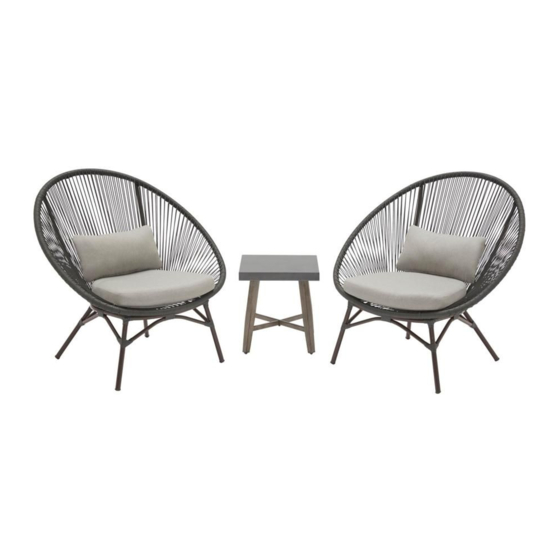

3PC PAPASEAN ROPE CHAT SET
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this set. We strive to continually
create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Advertisement
Table of Contents
Related Manuals for HAMPTON BAY FRS50095-ST
Summary of Contents for HAMPTON BAY FRS50095-ST
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this set. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
-
Page 2: Table Of Contents
Table of Contents Table of Contents........2 Pre-Assembly. -
Page 3: Warranty
Warranty 2 YEAR FRAME AND 2 YEAR FABRIC LIMITED WARRANTY WHAT IS COVERED We warrant the frames to be free of manufacturing defects to the original purchaser for two years, and a two year limited warranty for the fabric. WHAT IS NOT COVERED It remains the customer’s responsibility for freight and packaging charges to and from our service center. -
Page 4: Hardware Included
Pre-Assembly (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity M6x20 Combination Bolt 13+1 Hex Wrench CHAIR PACKAGE CONTENTS Part Description Quantity Chair Bucket Chair Base Pillow Seat Cushion... - Page 5 Pre-Assembly (continued) TABLE PACKAGE CONTENTS Part Description Quantity Table Top Upper Table Leg Lower Table Leg HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
-
Page 6: Chair Assembly
Chair Assembly Attaching The Chair Base To The Chair Bucket Place the chair bucket (A) upside down on a soft surface. Attach the chair base (B) to the chair bucket (A) using M6x20 combination bolts (AA). NOTE: Loosely tighten all the bolts using the hex wrench (BB). Tightening All Bolts Once all of the bolts are in place, fully tighten the bolts using the hex wrench (BB). - Page 7 Table Assembly Connecting The Upper Table Leg To The Table Top Place the table top (E) upside down on a soft surface. Attach the upper table leg (F) to the table top (E) using M6x20 combination bolts (AA). NOTE: Loosely tighten all the bolts using the hex wrench (BB). Connecting The Lower Table Leg To The Table Top Connect the lower table leg (G) to the table top (E) using M6x20 combination bolts (AA).
- Page 8 Table Assembly (continued) Connecting The Lower Table Leg To The Upper Table Leg Connect the lower table leg (G) to the upper table leg (F) using M6x20 combination bolts (AA). NOTE: Loosely tighten all the bolts using the hex wrench (BB). Tightening The Bolts Once all of the bolts are in place, fully tighten all the bolts using the hex wrench (BB).
-
Page 9: Care And Cleaning
Care Care and Cleaning For best results, clean the frame and cushions with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate. Do not clean with abrasive materials, bleach or solvents. Store the set in a dry sheltered place when not in use. - Page 10 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use. For certification use only...
