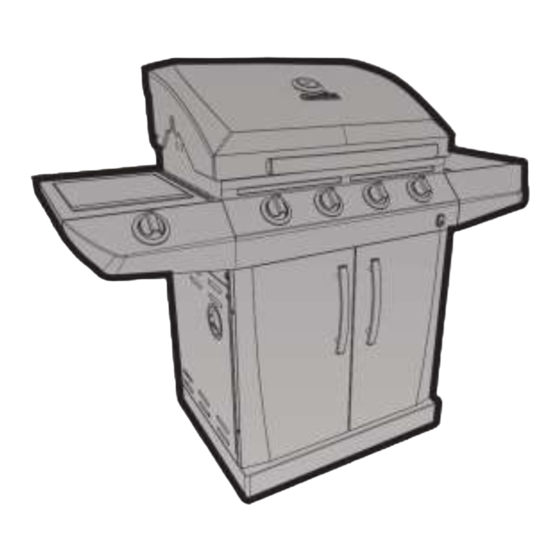

Char-Broil PERFORMANCE Series Use And Care Manual
L p gas grill
Hide thumbs
Also See for PERFORMANCE Series:
- Operating instructions manual (60 pages) ,
- Assembly, use and care manual (16 pages) ,
- Quick start manual (16 pages)
Table of Contents
Advertisement
To installer or person assembling grill: leave this manual with grill for future reference.
To consumer: keep this manual for future reference.
This manual applies to a variety of grill styles. your grill will not have all of the features shown.
To insure your satisfaction and for follow-up service, register your grill online at:
Printed in USA
K E E P E R S
L P Gas Grill Use and Care
For Outdoor Use Only
www.grillregistration.com
WARNING
Read this manual before cooking on grill. Failure to follow
all manufacturers' instructions could result in serious
personal injury and/or property damage.
Combustion by-products produced when using this
product contain chemicals known to the State of California
to cause cancer, birth defects, or other reproductive harm.
© 2006 W. C. Bradley Co., All Rights Reserved
O F
T H E
F L A M E
™
2006 Generic U & C_E • 7001111 (12-01-05) 1
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Char-Broil PERFORMANCE Series
Summary of Contents for Char-Broil PERFORMANCE Series
- Page 1 K E E P E R S T H E F L A M E L P Gas Grill Use and Care For Outdoor Use Only ™ To installer or person assembling grill: leave this manual with grill for future reference. To consumer: keep this manual for future reference.
-
Page 2: For Your Safety
Installation Safety Precautions WARNING • Use grill only with LP (propane) gas and the regulator/valve assembly supplied. FOR YOUR SAFETY • Grill installation must conform with local codes, or in their 1. Do not store or use gasoline or other absence with National Fuel Gas Code, NFPA 54 / ANSI flammable vapors and liquids in the... -
Page 3: Table Of Contents
Table of Contents Limited Warranty Manufacturer warrants to the original consumer-purchaser only that this product For Your Safety........2 shall be free from defects in workmanship and materials after correct assembly and Call Grill Service Center For Help and Parts . -
Page 4: Lp Cylinder Removal, Transport And Storage
LP Cylinder DANGER • The LP cylinder used with your grill must meet the following requirements: • Use LP cylinders only with these required measurements: 12" • NEVER store a spare LP cylinder under or near the (30.5cm) (diameter) x 18" (45.7 cm) (tall) with 20 lb. (9 kg.) appliance or in an enclosed area. -
Page 5: Lp Cylinder Exchange
LP Cylinder Exchange Do not use a POL transport plug • Many retailers that sell grills offer you the option of replacing (plastic part with external threads)! your empty LP cylinder through an exchange service. Use only It will defeat the safety feature those reputable exchange companies that inspect, precision fill, of the valve. -
Page 6: Safety Tips
5. If “growing” bubbles appear, there is a leak. Close LP WARNING cylinder valve immediately and re-tighten connections. If leaks cannot be stopped “do not try to repair” call for replacement parts. Order new parts by giving the serial • Never attempt to attach this grill to the self-contained LP number, model number and name of items needed to the Grill gas system of a camper trailer or motor home. -
Page 7: For Safe Use Of Your Grill And To Avoid Serious Injury
Match Lighting the Evenflame WARNING Do not lean over grill while lighting. 1. Open lid. Turn on gas at LP cylinder. Place lit match into match lighting hole from outside grill bottom For Safe Use Of Your Grill And To Avoid Serious (as shown). -
Page 8: Ignitor Lighting And Match Lighting The Versaflame
Match Lighting for Two and Three Burner Grills Ignitor Lighting the Versaflame Do not lean over grill while lighting. Do not lean over grill while lighting. 1. Open lid . Turn on gas at LP cylinder. 1. Open lid. Turn on gas at LP cylinder. Turn LEFT knob to 2. -
Page 9: Sideburner Use
• Sideburner Use Food Safety Do not use a cooking pot larger th n 9” on grid Remove grid • Food safety is a very important part of enjoying the outdoor from sideburner before using griddle. Never exceed griddle cooking experience. To keep food safe from harmful bacteria, zone value setting shown on graphics. -
Page 10: Cleaning The Evenflame Burner Assembly
Cleaning The Evenflame Burner Assembly Follow these instructions to clean and/or replace parts of burner assembly or if you have trouble igniting the grill. Turn gas off at control knobs and LP cylinder. Remove cooking grate and V-Bar. Under grill remove soup can, (unscrew ignitor button and remove battery on electronic ignition models), disconnect short ignitor wire (A) and clips from burner (B). -
Page 11: Cleaning The Performance And Advantage Burner Assembly
Cleaning The Performance and Advantage Burner Assembly Follow these instructions to clean and/or replace parts of burner assembly or if you have trouble igniting the grill. Turn gas off at control knobs and LP cylinder. 2. Remove cooking grids and vaporizer tents. 3. -
Page 12: Cleaning The Versaflame Burner Assembly
Cleaning The Versaflame Burner Assembly Follow these instructions to clean and/or replace parts of burner assembly or if you have trouble igniting the grill. Turn gas off at control knobs and LP cylinder. Remove cooking grate, burner tent and tent frame. Under grill remove soup can from grease clip. -
Page 13: Natural Hazard Spiders
• Cover grill if stored outdoors. Choose from a variety of grill you don’t have a grill cover, wipe off dust and grime before covers offered by Char-Broil. starting your grill. • Store grill indoors ONLY if LP cylinder is turned off and •... -
Page 14: Care And Cleaning Of Stainless Steel
Routine Care The Char-Broil® Stainless Steel Grill Cleaner and the Thermos® Stainless Steel Grill Cleaner are good choices for routine cleaning of stainless steel surfaces. Mild stains and loose dirt and soil can also be removed with a soft cloth and clean warm water. Rinse with clean water and wipe dry. - Page 15 EMERGENCIES: If a gas leak cannot be stopped, or a fire occurs due to gas leakage, call the fire department Emergencies Possible Cause Prevention/Solution Gas leaking from • Damaged hose. • Turn off gas at LP cylinder or at source on natural gas systems. cracked/cut/burned Replace damaged valve/hose/regulator.
-
Page 16: Troubleshooting
Troubleshooting ( continued Problem Possible Cause Prevention/Solution Burner(s) will not light ELECTRONIC IGNITION: using ignitor. • No spark, no ignition noise. • See Section I of Electronic Ignition System. (See Electronic Ignition • No spark, some ignition noise. • See Section II of Electronic Ignition System. Troubleshooting also) •... -
Page 17: Troubleshooting - Electronic Ignition
Troubleshooting - Electronic Ignition Problem (Ignition) Possible Cause Check Procedure Prevention/Solution SECTION I • Battery not installed • Check battery orientation. • Install battery (make sure that “–” and “+” No sparks appear at properly. connectors are oriented correctly, with “–” end up any electrodes when ignition button is and “+”... - Page 18 PAGE BLANK INTENTIONALLY...
-
Page 19: Www.grillregistration.com
Please register your grill online at: WWW.GRILLREGISTRATION.COM (If you register online, you do not need to send in this registration card.) - Page 20 PAGE BLANK INTENTIONALLY...
- Page 21 PAGE BLANK INTENTIONALLY...
- Page 22 PAGE BLANK INTENTIONALLY...
- Page 23 Company. Thermos® is a registered trademark of the Thermos Company and its affiliates. Artisan Collectiion by Char-Broil™, C3 and Design™, Char-Broil and Design™, Flame Design™, FlavorTents™, Grill 2 Go™, Grillin’ Stick™, Keeper of the Flame™, Keepers of the Flame™, Natural Grip™, Outdoor Cooking Collection and Design™, Patio Bistro™, PrecisionFlame™, Pro-Check™, QuickSet Grills and Design™, SmokerTents™, The Big Easy™.
