Structure - Dimplex DCPF40C Instruction Manual

40cm high velocity pedestal fan
Hide thumbs Also See for DCPF40C:
Table of Contents

Advertisement

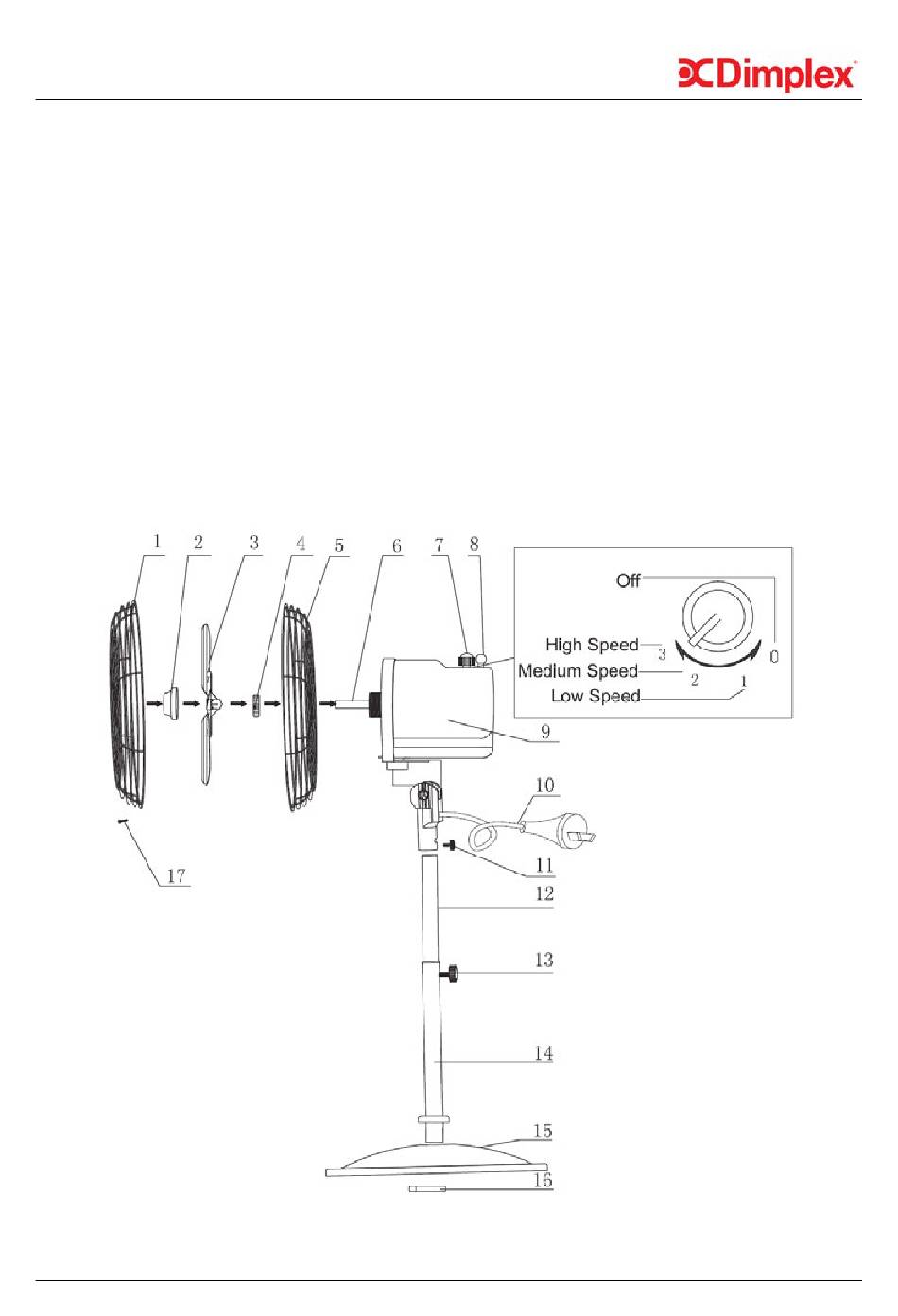

STRUCTURE

1. Front grille
2. Blade locking cap
3. Blade
4. Guard knob
5. Rear grille
6. Motor shaft
7. Rotary switch
8. Oscillation knob
9. Motor housing
10. Power cord & plug
11. Fixing screw A
12. Upper pillar
13. Fixing screw B
14. Main pillar
15. Base
16. Pole fixing nut
17. Safety screw
