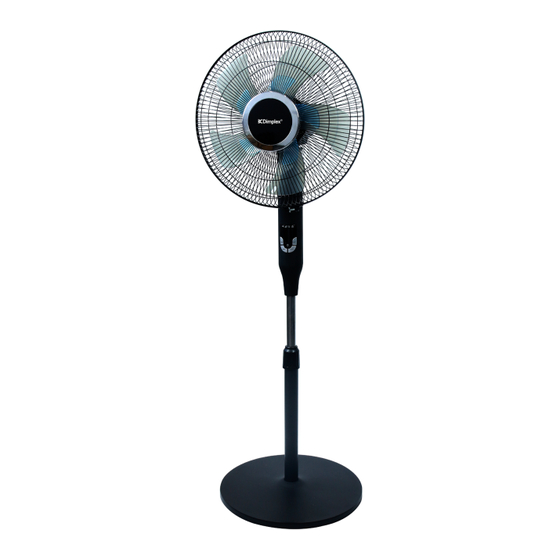

- Page 1 INSTRUCTION MANUAL 40cm DC Digital Pedestal Fan Model: DCPF40DC For domestic household use...
- Page 2 IMPORTANT THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE. Note also the information presented on the appliance CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY AND/OR DAMAGE AND MAY INVALIDATE YOUR WARRANTY Please read the operating instructions carefully before using your fan for the first time and keep them in a safe place.
- Page 3 or in small enclosed spaces. • Never use the mains lead as a carrying strap or pulling lead. • To avoid a fire or electrocution hazard, NEVER put the cord near heat registers, radiator, stoves or heaters. • DO NOT cover cord with carpeting, throw rugs, runners, or similar coverings.
- Page 4 Exposed to the Near water If the power cable weather outdoors wires are frayed or cut Where small children No extension leads or Where the power may be left unattended power boards cable may be damaged On a slope or Where there is risk Where it may be uneven surface...
-
Page 5: Specification
Specification Model no. DCPF40DC Colour Black Power supply 220-240V~ 50-60Hz Rated power Speed settings Modes Timer 12H (1-12 hours) Remote Y (2 * AAA not included) Adjustable height Tilt adjustable head Horizontal oscillation Weight (net) Dimensions (w x d x h) 410 x 410 x 1250mm •... - Page 6 Parts Fig. 1 (1) Logo ring front (12) Body (2) Logo ring back (13) Power cord (3) Front grille (14) Set screw (4) Blade cap (15) Inner pipe (5) Small blade (16) Height adjust lock (6) Large blade (17) Outer pipe (7) Grille fasten ring (18) Base (8) Grille fasten nut...
- Page 7 Assembly First assemble the base to the main pillar - refer to Fig. 1 & instructions below: 1. First unscrew the L-shaped screw (20) and remove it and the clamping washer (19) from the bottom of the main pillar (17). 2.
-
Page 8: Control Panel
Control Panel Remote Mode Speed Timer Oscillation Power Note: 2 * AAA batteries required (not included) -
Page 9: Operation
Operation 1. Place the fan on a firm level surface. Connect the plug to a power supply and switch on the power. 2. Turn the fan ON by pressing the power button. 3. Press the SPEED button to set the desired speed. There are 12 speeds levels to choose from. - Page 10 Cleaning Over time, dust can accumulate on the front & rear grille cover and fan blades, which can affect the fans performance. It is recommended to clean the fan at least once a month. 1. Turn the unit OFF and disconnect the appliance from the power supply. 2.
-
Page 11: Maintenance
Warranty Please refer to the warranty card in the box for warranty information. For any troubleshooting advice, please contact the relative Customer Care Centre below. Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Ltd 8 Lakeview Drive, 38 Harris Road, East Tamaki,... - Page 12 Supplied by Glen Dimplex Australia 8 Lakeview Drive, Scoresby, Victoria, 3179 © Glen Dimplex Australia. All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing of Glen Dimplex Australia.
