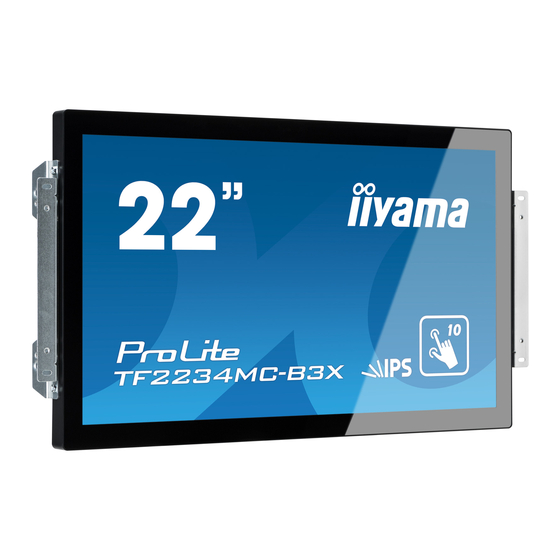

Summary of Contents for Iiyama ProLite TF2234MC-B3X

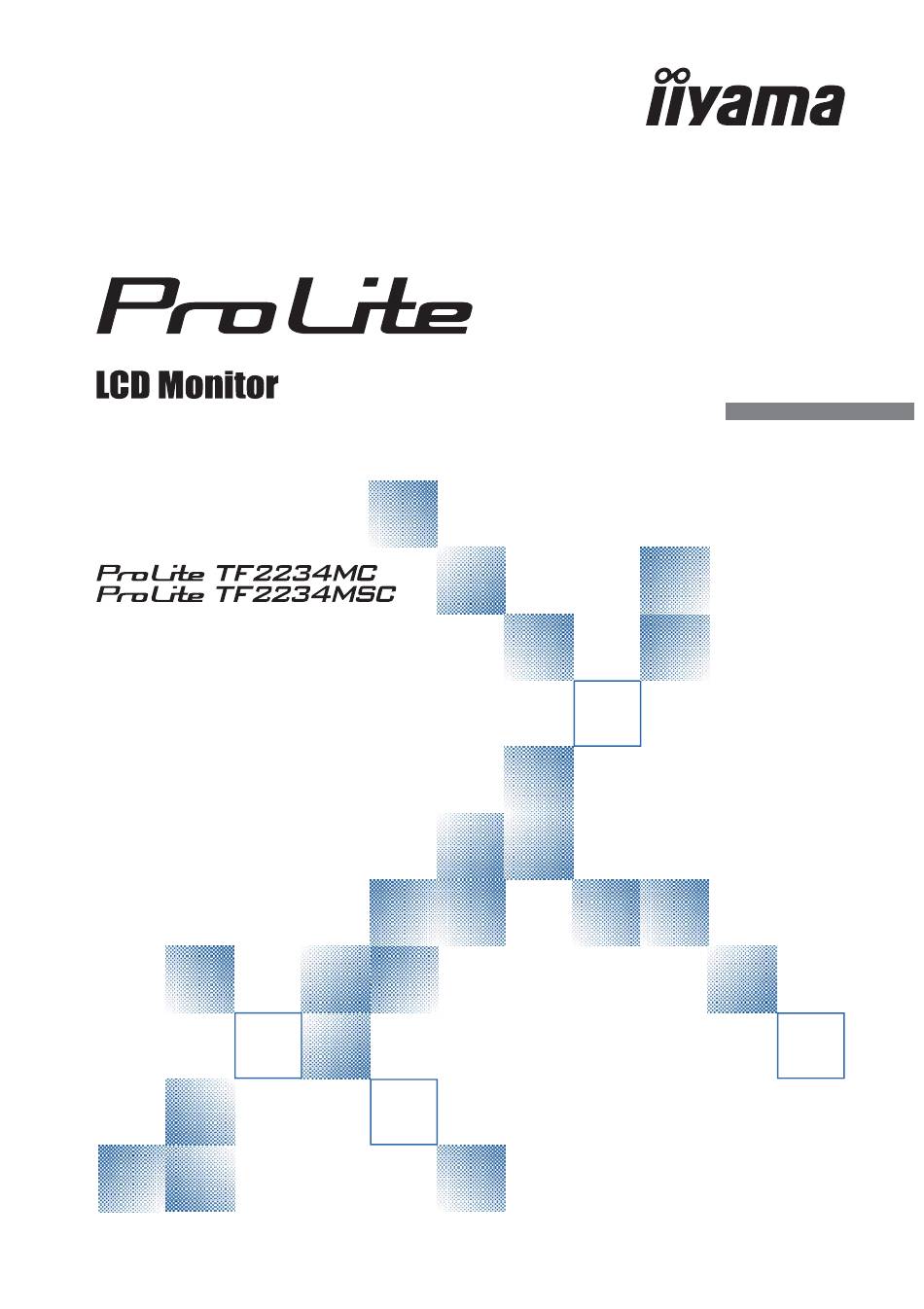

- Page 1 USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read this comprehensive manual carefully before installing and switching on the monitor. Please keep this manual in a safe place for...
- Page 3 IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands Model No. : PLC2234 We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com You can access the Web page of diff...
-
Page 4: Table Of Contents
TROUBLE SHOOTING ..............22 RECYCLING INFORMATION .............23 APPENDIX ..................24 SPECIFICATIONS : ProLite TF2234MC-B1X / ProLite TF2234MC-B2X .......24 SPECIFICATIONS : ProLite TF2234MC-B3X .......25 SPECIFICATIONS : ProLite TF2234MC-B1AGB / ProLite TF2234MC-B3AGB ....26 SPECIFICATIONS : ProLite TF2234MSC-B1X / ProLite TF2234MSC-B3X ....27 DIMENSIONS : ProLite TF2234MC / ProLite TF2234MSC ...28 DIMENSIONS : L-BRACKET............28... -
Page 5: For Your Safety
CORRECT USE OF THE AC ADAPTER Use only the AC Adapter provided by iiyama. Any deviation from this by using another type of adapter may result in damage to the accessory and the monitor by fi re or electric shock. - Page 6 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fi re, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.
-
Page 7: Special Notes On Lcd Monitors
If you drop any materials or liquids such as water into the monitor when cleaning, WARNING unplug the power cable immediately and contact your dealer or iiyama service center. To protect the Touch screen surface, do not scratch or rub the screen with a hard NOTE object. -
Page 8: Before You Operate The Monitor
CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama offi ce. -
Page 9: Wall Mounting
WALL MOUNTING WARNING When you use with the wall mounting, in consideration of thickness of the mounting stage, tighten the M4 Screw with washer which “L” length is 8mm to fasten the monitor. Using the screw longer than this may cause electric shock or damage because it may contact with the electrical parts inside the monitor. -
Page 10: Controls And Connectors
CONTROLS AND CONNECTORS Remote Control OSD Key* <Front> <Back> Menu Button (MENU)* Scroll Up / Brightness Button ( Scroll Down / Contrast Button ( Scroll Down / Mute Button ( Select / Auto Button (SELECT)* Power Switch ( VGA(D-sub) mini 15pin Connector DVI-D 24pin Connector Remote Control OSD Key Connector USB Connector... -
Page 11: Special Notes
SPECIAL NOTES L-Brackets and screws are necessary to install an open frame monitor. The L-Brackets are designed to be mounted to specific wall types and CAUTION hardware, in accordance with the installation instructions supplied with the Mounting Kit. Using L-Bracket or screws other than those specified in the installation instructions may damage the monitor. - Page 12 L-Brackets and screws are necessary to install an open frame monitor. For details regarding open frame monitor temperature and humidity operating conditions, see the User Manual on IIYAMA website. http://www.iiyama.com. The position of the L-bracket can be either 2.9 mm or 44.9 mm from the front of the monitor depending on...
-
Page 13: Connecting Your Monitor
An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama offi ce. - Page 14 [Fitting and Removal of Cable Cover] Step 1 Put a piece of soft cloth on the table beforehand to prevent the monitor from being scratched. Lay the monitor flat on a table with front face down. < Removal > Cable Cover Remove the cable cover as shown in Step1.
-
Page 15: Computer Setting
Change to the desired signal timing listed on page 28: COMPLIANT TIMING. Windows XP/Vista/7/8/8.1/10 Plug & Play The iiyama LCD monitor complies with DDC2B of VESA standard. The Plug & Play function runs on Windows XP/Vista/7/8/8.1/10 by connecting the monitor to DDC2B compliant computer with the Signal Cable supplied. -
Page 16: Operating The Monitor
OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 28. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 18 for SCREEN ADJUSTMENTS. -
Page 17: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS CO NTRAST BRIG HTNESS 12 80 x 10 24 F H : 6 3K H z F V: 59. 9H z Adjustment Item Problem / Option Button to Press Too dull CONTRAST Direct Too intense Too dark BRIGHTNESS * Direct Too bright... - Page 18 Only Analog Input A U TO A D J U S T H- P O S I T I O N V- P O S I T I O N H- S I Z E F I N E Adjustment Item Problem / Option Button to Press AUTO ADJUST *...
- Page 19 O SD H - P OS ITIO N O S D V- P OS ITIO N O SD TI MEO U T R E SE T IN P U T SE LEC T Adjustment Item Problem / Option Button to Press OSD is too left OSD H-POSITION OSD is too right...
- Page 20 ENGLISH ESPAÑOL FRANÇAIS DEUTSCH ITALIANO Adjustment Item Problem / Option Button to Press ENGLISH English ESPAÑOL Spanish Japanese FRANÇAIS French OSD LANGUAGE Traditional Chinese DEUTSCH German Simplifi ed Chinese ITALIANO Italian 9300 6500 5500 GREEN 7500 BLUE USER Adjustment Item Problem / Option Button to Press 9300...
- Page 21 VOLUME MUTE Adjustment Item Problem / Option Button to Press Too soft VOLUME Too loud Turn off the sound temporarily. Direct MUTE Return the sound volume to the previous level. * Available for ProLite TF2234MSC only. Direct You can skip the Menu items and display an adjustment scale directly by using the following button operations.
-
Page 22: Screen Adjustments
If the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http://www.iiyama.com). Adjust the image by following the procedure below to get the desired picture. - Page 23 Press the SELECT Button. (AUTO ADJUST) Adjust the image manually by following procedure below when the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Adjust. Adjust the V-POSITION so that the top and bottom of the picture frame will fit to the display area.
- Page 24 Adjust the FINE to correct horizontal wavy noise, fl icker or blur in the zebra pattern. In case the strong fl icker or blurs remain on a part of the screen, repeat steps NOTE because the H-SIZE may not be adjusted correctly. If the fl icker or blurs still remain, set the refresh rate of computer to low (60Hz) and repeat steps from again.
-
Page 25: Power Management Feature
POWER MANAGEMENT FEATURE When your computer is not in use, the power management feature will automatically reduce the power consumption of your monitor. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. There is a power management step the monitor takes as described below. The power management function, including any timer settings is confi... -
Page 26: Trouble Shooting
MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem Check ... -
Page 27: Recycling Information
RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com/recycle for monitor recycling. Recycling information 23... -
Page 28: Appendix
APPENDIX Design and specifi cations are subject to change without prior notice. SPECIFICATIONS : ProLite TF2234MC-B1X / ProLite TF2234MC-B2X Model Name ProLite TF2234MC-B1X ProLite TF2234MC-B2X Touch Technology Projected capacitive 10pt touch Screen Light transmission 90% Hardness 1.24mm Thickness 2.5mm Communication system Size Category 22"... -
Page 29: Specifications : Prolite Tf2234Mc-B3X
SPECIFICATIONS : ProLite TF2234MC-B3X Touch Technology Projected capacitive 10pt touch Screen Light transmission Hardness Thickness 1.5mm Communication system Size Category 22" LCD Panel Panel Technology IPS Size Diagonal: 21.5" (55cm) Pixel pitch 0.247mm H × 0.247mm V 250cd/m (Typical), 220cd/m... -
Page 30: Prolite Tf2234Mc-B1Agb / Prolite Tf2234Mc-B3Agb
SPECIFICATIONS : ProLite TF2234MC-B1AGB / ProLite TF2234MC-B3AGB Model Name ProLite TF2234MC-B1AGB ProLite TF2234MC-B3AGB Touch Technology Projected capacitive 10pt touch Screen Light transmission Hardness Thickness 2.5mm 1.5mm Communication system Size Category 22" LCD Panel Panel Technology IPS Size Diagonal: 21.5" (55cm) Pixel pitch 0.247mm H ×... -
Page 31: Prolite Tf2234Msc-B1X / Prolite Tf2234Msc-B3X
SPECIFICATIONS : ProLite TF2234MSC-B1X / ProLite TF2234MSC-B3X Model Name ProLite TF2234MSC-B1X ProLite TF2234MSC-B3X Touch Technology Projected capacitive 10pt touch Screen Light transmission 90% Hardness Thickness 2.5mm 1.5mm Communication system Size Category 22" LCD Panel Panel Technology IPS Size Diagonal: 21.5" (55cm) Pixel pitch 0.247mm H ×... -
Page 32: Dimensions : Prolite Tf2234Mc / Prolite Tf2234Msc
DIMENSIONS : ProLite TF2234MC / ProLite TF2234MSC 517.5mm/20.4” 46.0mm/1.8” 476.5mm/18.8” DIMENSIONS : L-BRACKET <Bracket A> <Bracket B> 1.0 mm 1.0 mm 142.0 mm Screw holes for fixing the bracket 186.0 mm 220.0 mm Screw holes for mounting the monitor 130.0 mm Screw holes for mounting the chassis 4.3 mm...
