M-system R7L-DC16B Instruction Manual page 7

■ FUNCTIONAL BLOCK: fbCNT[0...7]
• Network Variables
TYPE
NETWORK
{ Range }
VARIABLE
{ Default }
{SNVT_switch}
nviCNTIn {0.0 0}, {100.0 1}, {Invalid}
{0.0 0}
{SNVT_switch}
nviCNTCtrl {0.0 0}, {100.0 1}, {Invalid}
{0.0 0}
{SNVT_count_32}
{0...999 999 999}
{0}
nvoCNTOut
{SNVT_count_f}
{0...999 999}
{0}

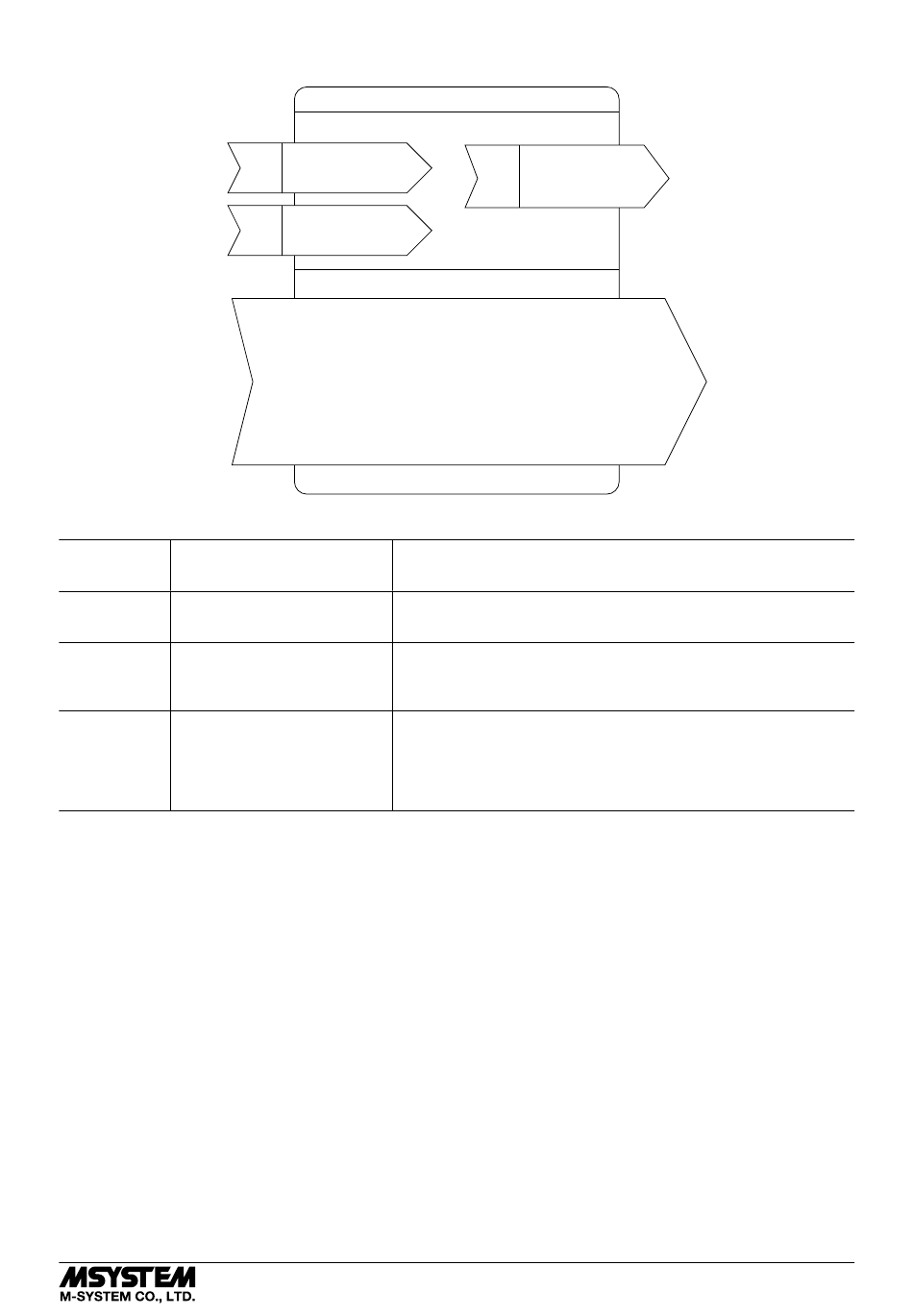

fbCNT[0...7] (Object ID : 17...24)
Network Variables
nviCNTIn
nv 36
...nv 43 SNVT_switch
nviCNTCtrl
nv 44
...nv 51 SNVT_switch
Configuration Properties
fbCNT[ ] :
SCPTdirection
nviCNTIn :
SCPTinvrtOut
nviCNTCtrl :
SCPTpwrUpState
nvoCNTOut :
SCPTnvType
SCPTmaxRnge
SCPTsetpoint
EXPLANATIONS
Counted object
Controls operation of fbCNT
0.0 0 : Stop counting
100.0 1 : Start counting
Invalid : Reset count value
Number of ON counts or accumulated time of ON status at nviCNTIn or
the input terminal
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp
nvoCNTOut
nv 52
SNVT_count_32
...nv 59
SNVT_count_f
Set operating mode
Set count logic (ON or OFF)
Set the initial value at nviCNTCtrl at the startup
Set network variable type nvoCNTOut
Set the maximum count
Set the value when fbCNT[ ] is reset
R7L-DC16B
EM-7804-H Rev.7 P. 7 / 19
