■ FUNCTIONAL BLOCK: fbDO[0...7]
• Network Properties
State Mode
TYPE
NETWORK
{ Range }
VARIABLE
{ Default }
{SNVT_switch}
nviDO {0.0 0}, {100.0 1}, {Invalid}
{0.0 0}
{SNVT_switch}
nviDOOvr {0.0 0}, {100.0 1}, {Invalid}
{0.0 0}
{SNVT_switch}
nvoDOStat {0.0 0}, {100.0 1}, {Invalid}
{0.0 0}
Momentary Mode 1 or 2
TYPE
NETWORK
{ Range }
VARIABLE
{ Default }
{SNVT_switch}
nviDO {0.0 0}, {100.0 1}, {Invalid}
{0.0 0}
{SNVT_switch}
nviDOOvr {0.0 0}, {100.0 1}, {Invalid}
{0.0 0}
{SNVT_switch}
nvoDOStat {0.0 0}, {100.0 1}, {Invalid}
{0.0 0}
• Configuration Properties
Common
CONFIGURATION NETWORK
PROPERTY VARIABLE
SCPTdirection ----
Momentary Mode 1 or 2
CONFIGURATION NETWORK
PROPERTY VARIABLE
SCPTtimeout ----

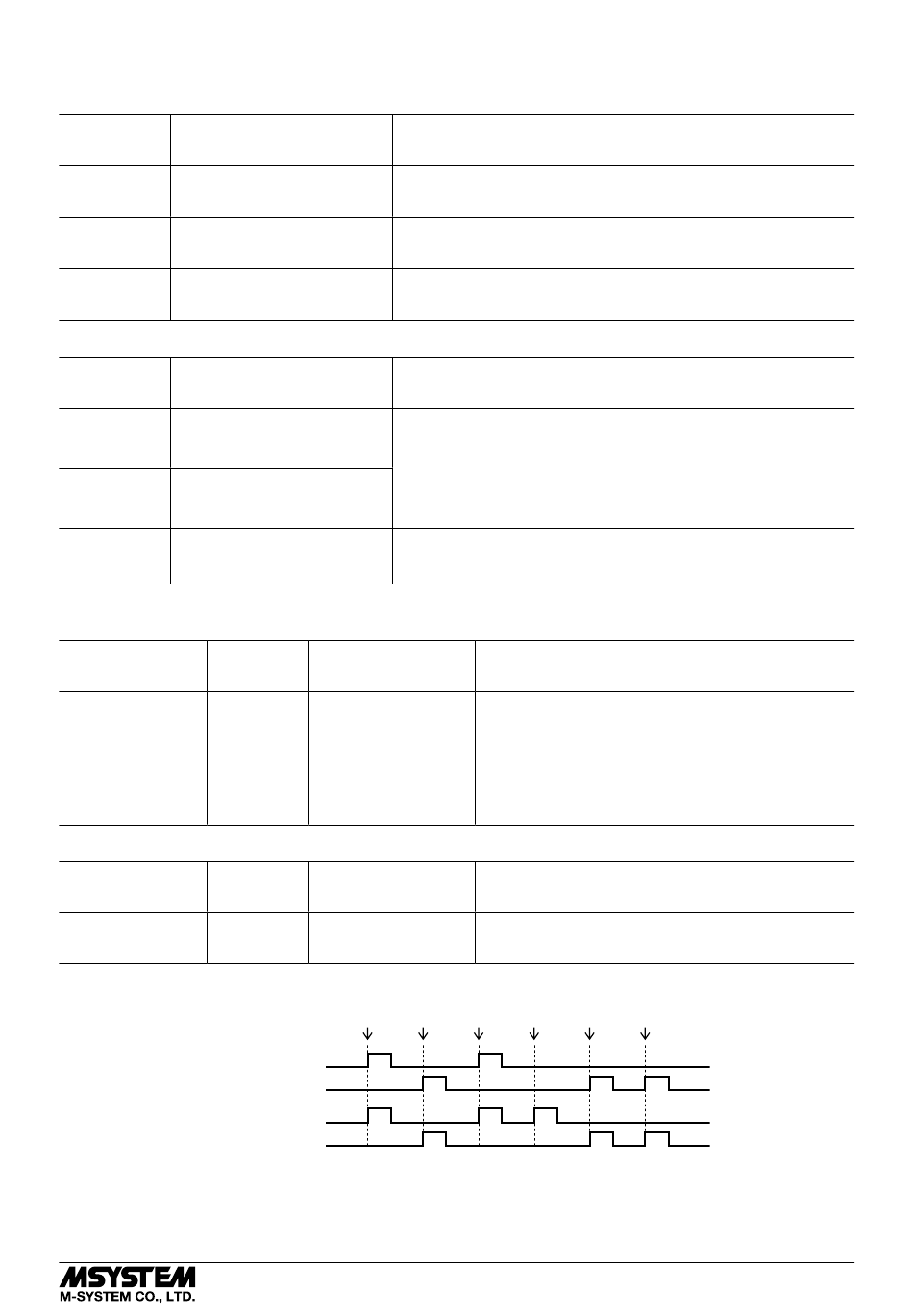

• Difference between Momentary Mode 1 and 2
nviDO or nviDOOvr
Y0, Y2, Y4 and Y6
Momentary Mode 1
Y1, Y3, Y5 and Y7
Y0, Y2, Y4 and Y6
Momentary Mode 2
Y1, Y3, Y5 and Y7
EXPLANATIONS
Turns on or off Y0, Y2, Y4, Y6, Y8, YA, YC, YE depending upon this input.
Turns on or off Y1, Y3, Y5, Y7, Y9, YB, YD, YF depending upon this input.
Invalid
EXPLANATIONS
Y0, Y2, Y4, Y6, Y8, YA, YC, YE : One-shot output when the input is ON.
Y1, Y3, Y5, Y7, Y9, YB, YD, YF : One-shot output when the input is OFF.
nviDO status is invalid when nviDOOvr is other than 'Invalid.' One-shot
output is provided at either Y0 or Y1 depending upon nviDOOvr value.
Outputs last one-shot output status.
TYPE
{ Range }
{ Default }
{SNVT_state}
{0 or 1}
{0,0,0,0,0,0,0,0,
0,0,0,0,0,0,0,0}
TYPE
{ Range }
{ Default }
{SNVT_time_sec}
{0.1...60.0}
{0.5}
ON OFF
