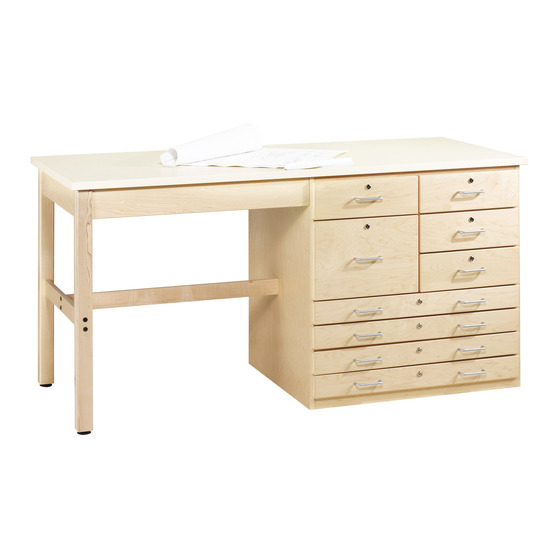

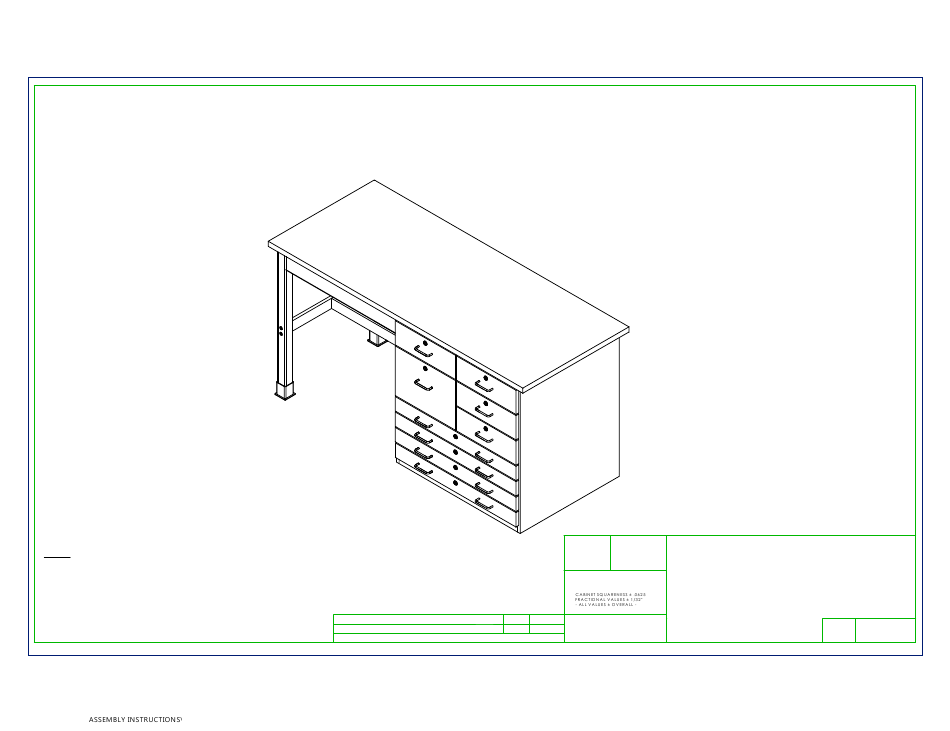

IN HOUSE ASSEMBLY TEMPLATE
PLANNING & LAYOUT BENCH
NOTE:
1.
MODEL VIEWS MAY NOT REPRESENT EXACT MODEL PURCHASED
ASSEMBLY INSTRUCTIONS
CREATED ASSEMBLY INSTRUCTIONS
EMK
-
DESCRIPTION
DESCRIPTION
NAME
NAME
ECN NO.
REVISION LEVEL
DWN
EMK
BY:
PLANNING & LAYOUT BENCH
UNLESS OTHERWISE SPECIFIED
DIMENSION ARE IN INCHES
ASSEMBLY INSTRUCTIONS
THIS DRAWING IS THE SOLE PROPERTY OF
THIS MANUFACTURER. IT MAY NOT BE
ALTERED OR CHANGED WITHOUT
PERMISSION
SCALE:
SHEET:
NTS
1 OF 11
Advertisement
Related Manuals for DIVERSIFIED WOODCRAFTS PLB-201
Summary of Contents for DIVERSIFIED WOODCRAFTS PLB-201
- Page 1 IN HOUSE ASSEMBLY TEMPLATE PLANNING & LAYOUT BENCH ASSEMBLY INSTRUCTIONS NOTE: MODEL VIEWS MAY NOT REPRESENT EXACT MODEL PURCHASED PLANNING & LAYOUT BENCH UNLESS OTHERWISE SPECIFIED DIMENSION ARE IN INCHES ASSEMBLY INSTRUCTIONS CREATED ASSEMBLY INSTRUCTIONS THIS DRAWING IS THE SOLE PROPERTY OF SCALE: SHEET: THIS MANUFACTURER.
-
Page 2: Tools Required
IN HOUSE ASSEMBLY TEMPLATE ASSEMBLY COMPONENTS TOOLS REQUIRED ITEMS INCLUDED PART DESCRIPTION " WRENCH APRON AND BRACKET ASSEMBLY " SOCKET AND TORQUE WRENCH - OPTIONAL APRON ASSEMBLY (FACTORY ASSEMBLED) 4MM ALLEN WRENCH TOP,PLAM,1.25X30X72,ALMOND CABINET 35"W X 28"D X 35.75"H LEGS LEG,MPL 2.25X2.25X35.00 LEG BRACE LEG BRACE - 24.00"... - Page 3 IN HOUSE ASSEMBLY TEMPLATE ROUNDED EDGES FACING UP STEP 1: LAY APRON ASSEMBLY ON FLOOR WITH ROUNDED EDGES FACING UP. NOTE: PLANNING & LAYOUT BENCH UNLESS OTHERWISE SPECIFIED DIMENSION ARE IN INCHES ASSEMBLY INSTRUCTIONS CREATED ASSEMBLY INSTRUCTIONS THIS DRAWING IS THE SOLE PROPERTY OF SCALE: SHEET: THIS MANUFACTURER.
- Page 4 IN HOUSE ASSEMBLY TEMPLATE INSERT HANGER BOLT THROUGH HERE WITH LOCK WASHER AND HEX NUT STEP 2: INSERT HANGER BOLT ON ONE LEG THROUGH THE CORNER BRACKET AND INSERT LOCK WASHER AND HEX NUT. SCREW ON NUT USING A " WRENCH OR "...
- Page 5 IN HOUSE ASSEMBLY TEMPLATE LEG LEVELER LEG BOOT STEP 3: SLIDE LEG BOOT ONTO LEGS WITH FLARED END TOWARDS BOTTOM OF LEGS. SCREW LEG LEVELERS INTO T-NUT ON BOTTOM OF LEGS. CLOSE UP OF LEG BOOT AND LEVELER ASSEMBLY NOTE: PLANNING &...
- Page 6 IN HOUSE ASSEMBLY TEMPLATE LEG BRACE STEP 4: ATTACH BRACE TO LEGS. INSERT THE CONFIRMATS INTO ONE LEG AND SCREW INTO BRACE. REPEAT ON OTHER LEG. MAKE SURE BRACE IS STRAIGHT AND ALL CONFIRMATS ARE TIGHT. NOTE: PLANNING & LAYOUT BENCH UNLESS OTHERWISE SPECIFIED DIMENSION ARE IN INCHES ASSEMBLY INSTRUCTIONS...
- Page 7 IN HOUSE ASSEMBLY TEMPLATE STEP 4: PLACE STRETCHER CENTERED ON LEG BRACE. STRETCHER ATTACH STRETCHER WITH HARDWARE PROVIDED. GO BACK TO STEP 2 AND TIGHTEN UP THE HANGER BOLTS FOR EACH LEG USING A " WRENCH OR " SOCKET AND TORQUE WRENCH, TO A MINIMUM OF 12FT LBS BUT NOT TO EXCEED 17FT LBS.
- Page 8 IN HOUSE ASSEMBLY TEMPLATE STEP 5: FLIP APRON ASSEMBLY OVER ONTO LEGS. ALIGN HOLES ON THE STRETCHER TO THE HOLES ON LEFT SIDE OF CABINET. TAKE OUT TOP DRAWERS TO ATTACH STRETCHER FROM INSIDE THE CABINET. SCREW CONFIRMATS INTO STRETCHER. CONFIRMATS - TYPICAL STRETCHER OUTSIDE OF CABINET SHOWN...
- Page 9 IN HOUSE ASSEMBLY TEMPLATE ATTACH APRON ASSEMBLY TO CABINET THROUGH HERE AND ON OTHER BRACKET BRACKET - TYPICAL INTERNAL APRON BACK APRON STEP 6: POSITION APRON ASSEMBLY SO INNER HOLES OF THE BRACKETS ON INTERNAL APRON ARE LINED UP WITH TWO HOLES ON LEFT SIDE OF CABINET (THE FRONT APRON WILL BE FLUSH WITH THE FRONT OF CABINET AND THE BACK APRON WILL BE FLUSH WITH THE BACK OF CABINET).
- Page 10 IN HOUSE ASSEMBLY TEMPLATE STEP 7: SET TOP ON UNIT AND ADJUST FOR PROPER OVERHANG (1" POCKET HOLE - TYPICAL OVERHANG ON THE SIDES AND 2" OVERHANG ON THE FRONT AND BACK). ATTACH TOP BY GOING INSIDE CABINET AND SCREWING UP THROUGH TOP (NOT SHOWN) AND BY GOING UNDERNEATH UNIT AND SCREWING INTO THE POCKET HOLES LOCATED ON APRON ASSEMBLY.
- Page 11 IN HOUSE ASSEMBLY TEMPLATE STEP 8: PUT DRAWERS BACK IN. PLACE UNIT IN DESIRED LOCATION. NOTE: PLANNING & LAYOUT BENCH UNLESS OTHERWISE SPECIFIED DIMENSION ARE IN INCHES ASSEMBLY INSTRUCTIONS COMPLETE UNIT SHOWN CREATED ASSEMBLY INSTRUCTIONS THIS DRAWING IS THE SOLE PROPERTY OF SCALE: SHEET: THIS MANUFACTURER.
